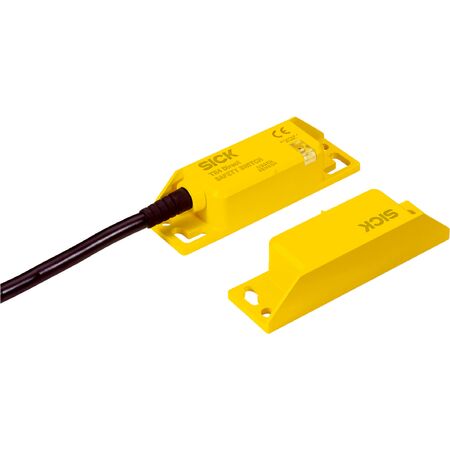

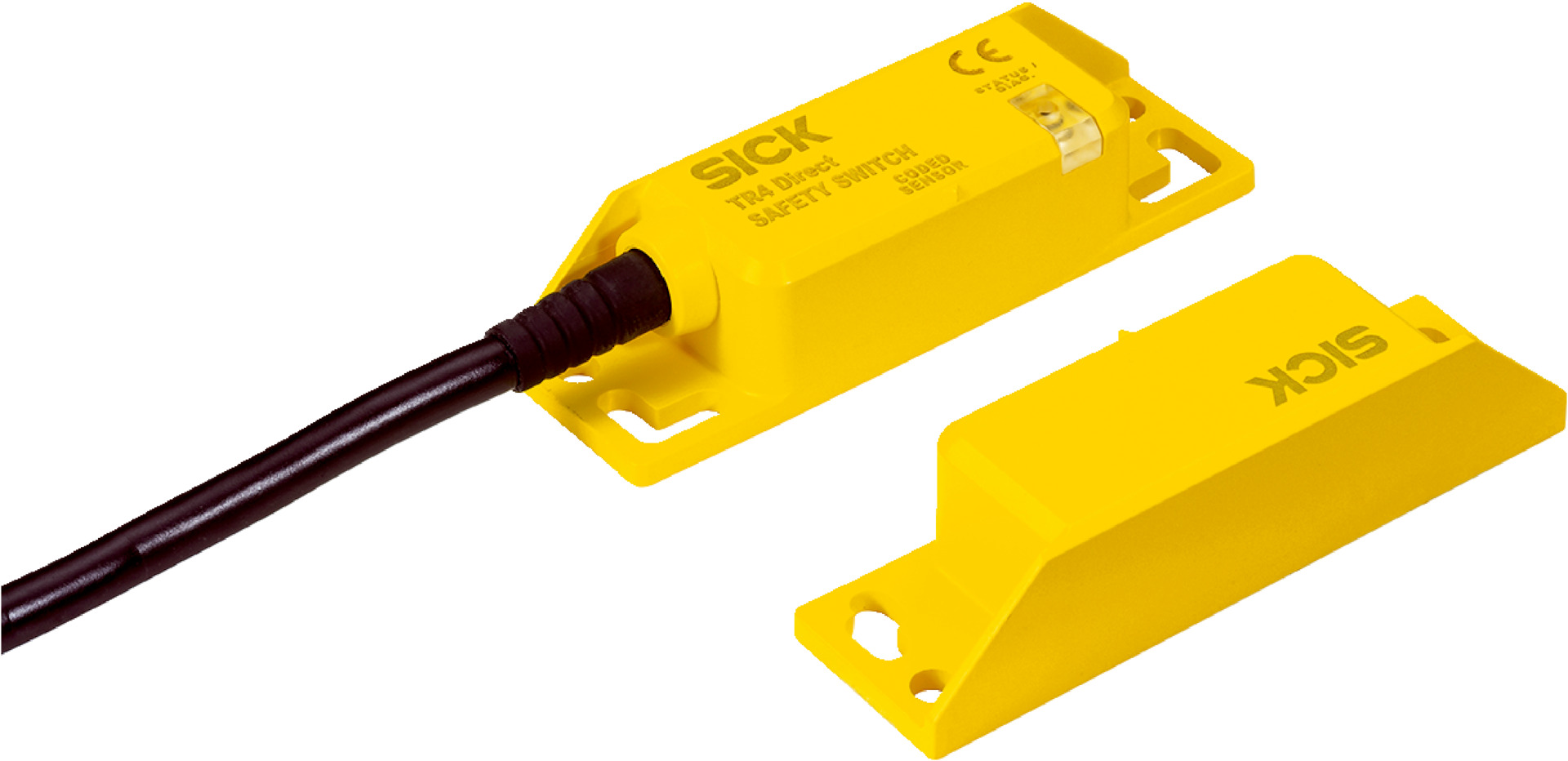

RFID Safety Sensor TR4-SEU03PB | Two Safe Outputs | SIL 3 & IP67 Rated | by SICK
The RFID Safety Sensor TR4-SEU03PB is designed for industrial safety applications, featuring two safe outputs and a robust actuator system. With a high safety integrity level of SIL 3 and an IP67/IP69K rated enclosure, it ensures reliable performance in harsh environments. Ideal for machine safety monitoring and automation systems, this sensor provides operational feedback through an LED status display.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Active sensor surfaces: 2
- Actuation directions: 5
- Boundary area indication: Yes
- Coding: Uniquely coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one safety-related semiconductor output (OSSD) is OFF
- Connection type: Cable
- Cable length: 3 m
- Long connecting cable: ≤ 200 m
- Cable diameter: 6.5 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: > 7 x cable diameter
- Bend radius moving cable: > 14 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- IO-Link Safety OFDT: ≤ 100 ms
- Display elements: LEDs
- Status display: Yes
- Protection class: III (EN 50178)
- Classification cULus: Class 2
- Supply voltage: 24 V DC (20.4 V DC ... 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Design: Rectangular
- Housing material: Valox® DR48
- Enclosure rating: IP67 (IEC 60529), IP69K (ISO 20653)
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 88mm x 20mm x 25mm
- Weight: 0.27 kg
Key Features
- RFID sensor with actuator system
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Assured switch on distance of 15 mm and switch off distance of 25 mm
- High safety integrity level SIL 3 and Category 4 compliance
- Uniquely coded actuator with high coding level
- IP67 and IP69K rated enclosure for harsh environments
- LED status display for operational feedback
- Robust Valox® DR48 housing material
- Operating temperature range from -25 °C to +70 °C
- Shock resistance up to 30 g and vibration resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine safety monitoring and control
- Automation systems with high safety integrity requirements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SEU03PB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
