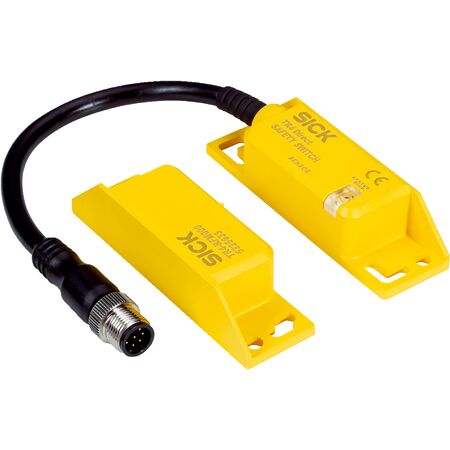

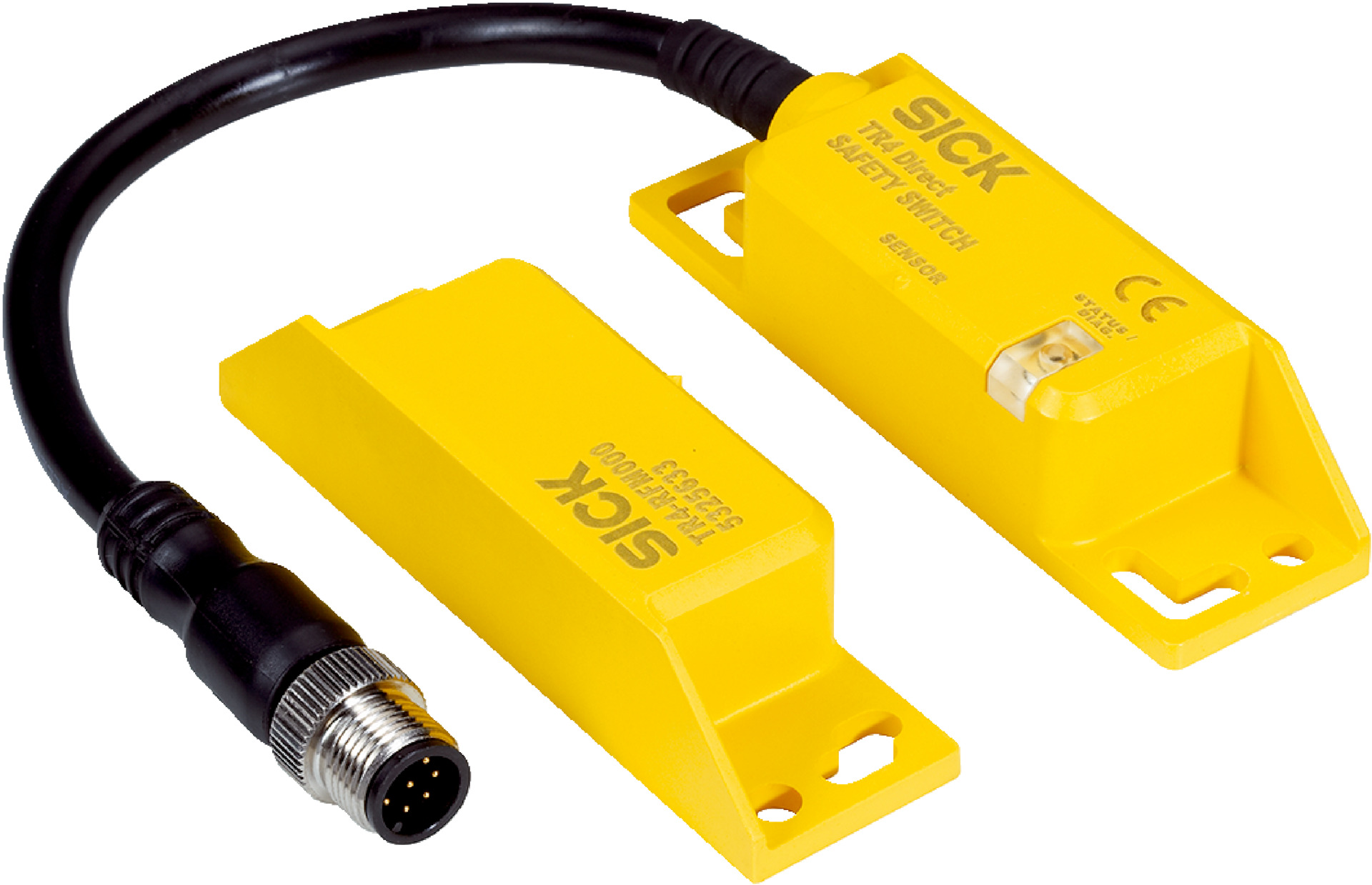

RFID Safety Sensor TR4-SFM02CB | SIL 3 & Category 4 | IP67/IP69K Rated | by SICK
The RFID Safety Sensor TR4-SFM02CB is designed for industrial safety systems, featuring two safe semiconductor outputs and a robust Valox® DR48 housing. With an assured switch on distance of 15 mm and off distance of 25 mm, this sensor is perfect for machine guarding and automation applications, ensuring high safety integrity with SIL 3 compliance and IP67/IP69K protection for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2 self-monitoring semiconductor outputs (OSSDs)
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Actuation directions: 5
- Retaining force: ≤ 10 N
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one OSSD off
- Connection: Cable with M12 5-pin plug, 0.2 m length
- Cable diameter: 6.5 mm, conductor cross section 0.25 mm²
- Supply voltage: 24 V DC (20.4 - 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Housing material: Valox® DR48
- Protection class: III (EN 50178)
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 88mm x 20mm x 25mm
- Weight: 0.112 kg
Key Features
- RFID sensor with actuator system
- Two safe semiconductor outputs (OSSDs)
- Assured switch on distance of 15 mm and switch off distance of 25 mm
- Universally coded with low actuator coding level
- Boundary area indication included
- Safe series connection with Flexi Loop and diagnostics
- LED status display for operational feedback
- High safety integrity level SIL 3 and Category 4 compliance
- Robust rectangular design with Valox® DR48 housing
- Protection rating IP67 and IP69K for harsh environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety systems requiring RFID sensor technology
- Machine guarding and safety interlock applications
- Automation systems with safety output requirements
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
- Robust IP67/IP69K rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TR4-SFM02CB RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
