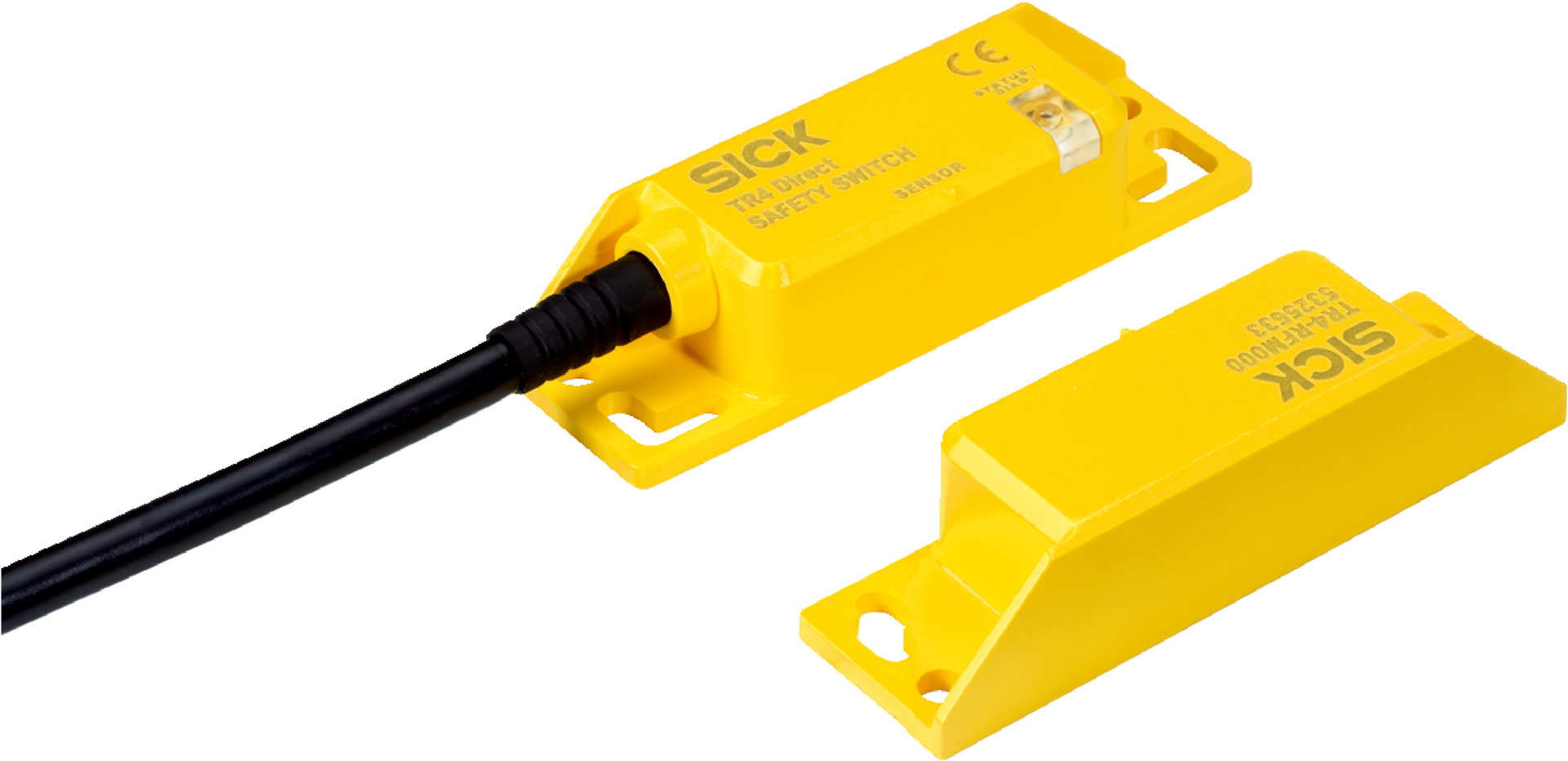

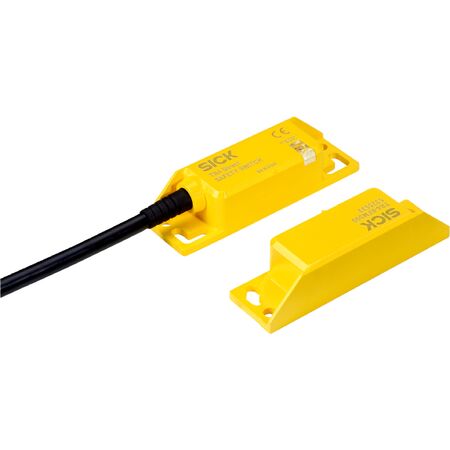

RFID Safety Sensor TR4-SFM10PB | SIL 3 & Category 4 Compliance | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor TR4-SFM10PB is designed for industrial safety monitoring, featuring a robust design with SIL 3 safety integrity and Category 4 compliance. With an assured switch on distance of 15 mm and off distance of 25 mm, this sensor is perfect for machine guarding and access control in automated systems. Its IP67 and IP69K rated enclosure ensures reliable performance in harsh environments, making it an ideal choice for safety-related automation processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Active sensor surfaces: 2
- Actuation directions: 5
- Retaining force: ≤ 10 N
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 * 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one OSSD is OFF
- Connection type: Cable, 10 m length, PVC material
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Protection class: III (EN 50178)
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 88mm x 20mm x 25mm
- Weight: 0.687 kg
Key Features
- RFID sensor principle with 2 safe outputs
- Assured switch on distance of 15 mm and switch off distance of 25 mm
- Universally coded with boundary area indication
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs)
- IP67 and IP69K rated enclosure for harsh environments
- LED status display for operational feedback
- Robust Valox® DR48 housing material
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant electrical and safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in automated systems
- Safety-related automation processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption (≤ 50 mA) supports energy efficiency
- Robust housing protects against environmental damage, extending product life
Warranty Information
Warranty details available upon request from SICK, typically including coverage against manufacturing defects.
Available Now
The SICK TR4-SFM10PB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
