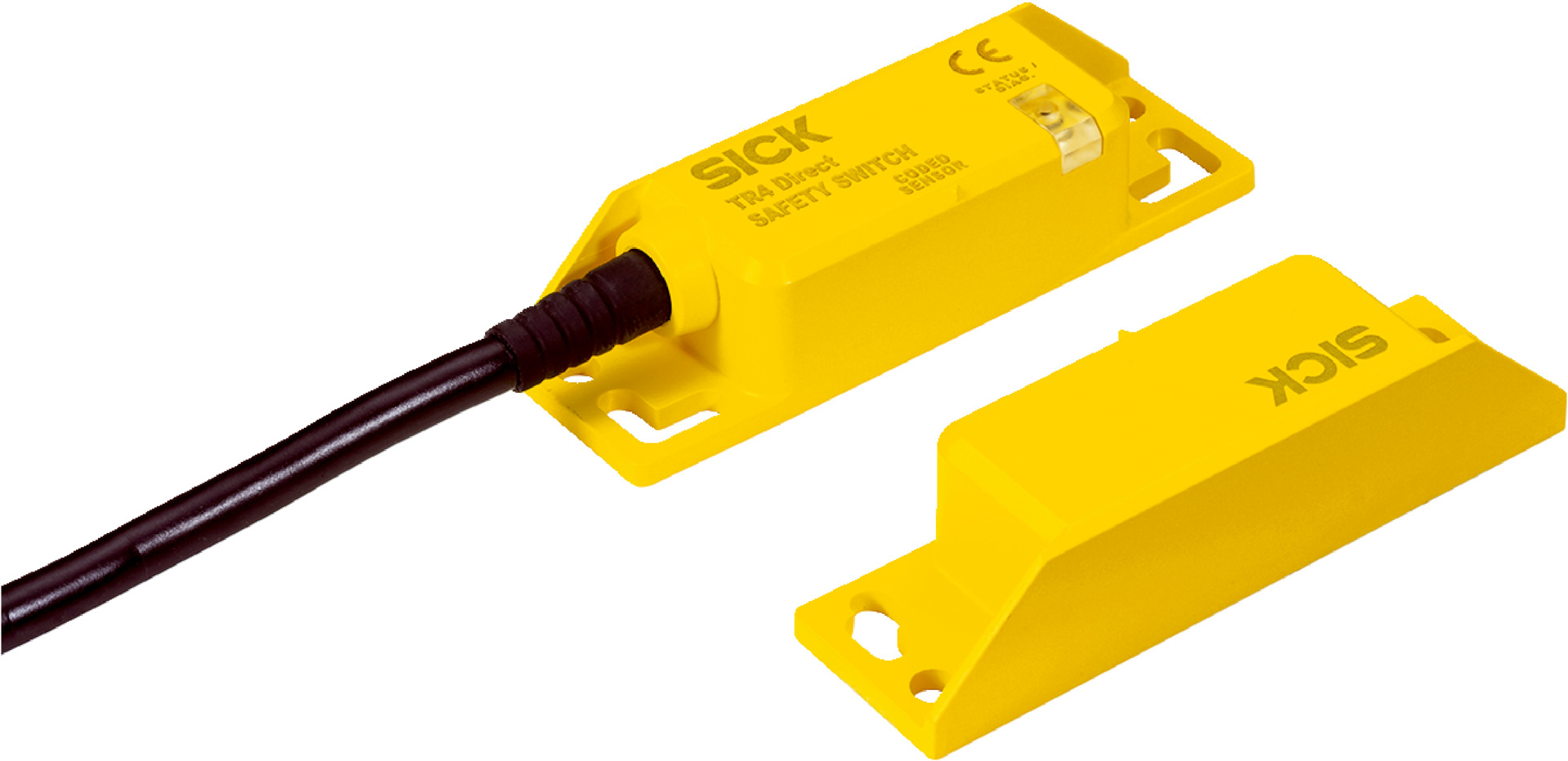

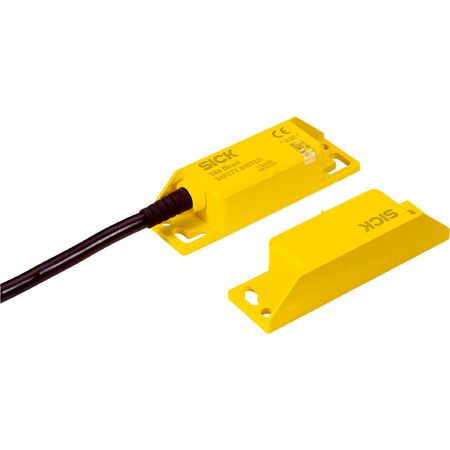

RFID Safety Sensor TR4-SFU03PB | SIL 3 & Category 4 | IP67/IP69K Rated | by SICK
The RFID Safety Sensor TR4-SFU03PB is designed for industrial safety monitoring and machine guarding, featuring a SIL 3 safety integrity level and Category 4 compliance. With two safe outputs and an assured switch-on distance of 15 mm, it ensures reliable operation in harsh environments, making it ideal for automated systems and access control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Active sensor surfaces: 2
- Actuation directions: 5
- Retaining force: ≤ 10 N
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state on fault: At least one OSSD off
- Connection type: Cable, 3 m length, PVC material
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Protection class: III (EN 50178)
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 88mm x 20mm x 25mm
- Weight: 0.27 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Two safe outputs with self-monitoring semiconductor outputs (OSSDs)
- Assured switch on distance of 15 mm and switch off distance of 25 mm
- High safety integrity level SIL 3 and Category 4 compliance
- IP67 and IP69K rated for harsh environments
- LED status display for operational feedback
- Robust Valox® DR48 housing material
- Supports safe series connection with diagnostics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in automated systems
- Safety interlocking in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (≤ 50 mA) supports energy efficiency
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK TR4-SFU03PB RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and machine guarding applications.
