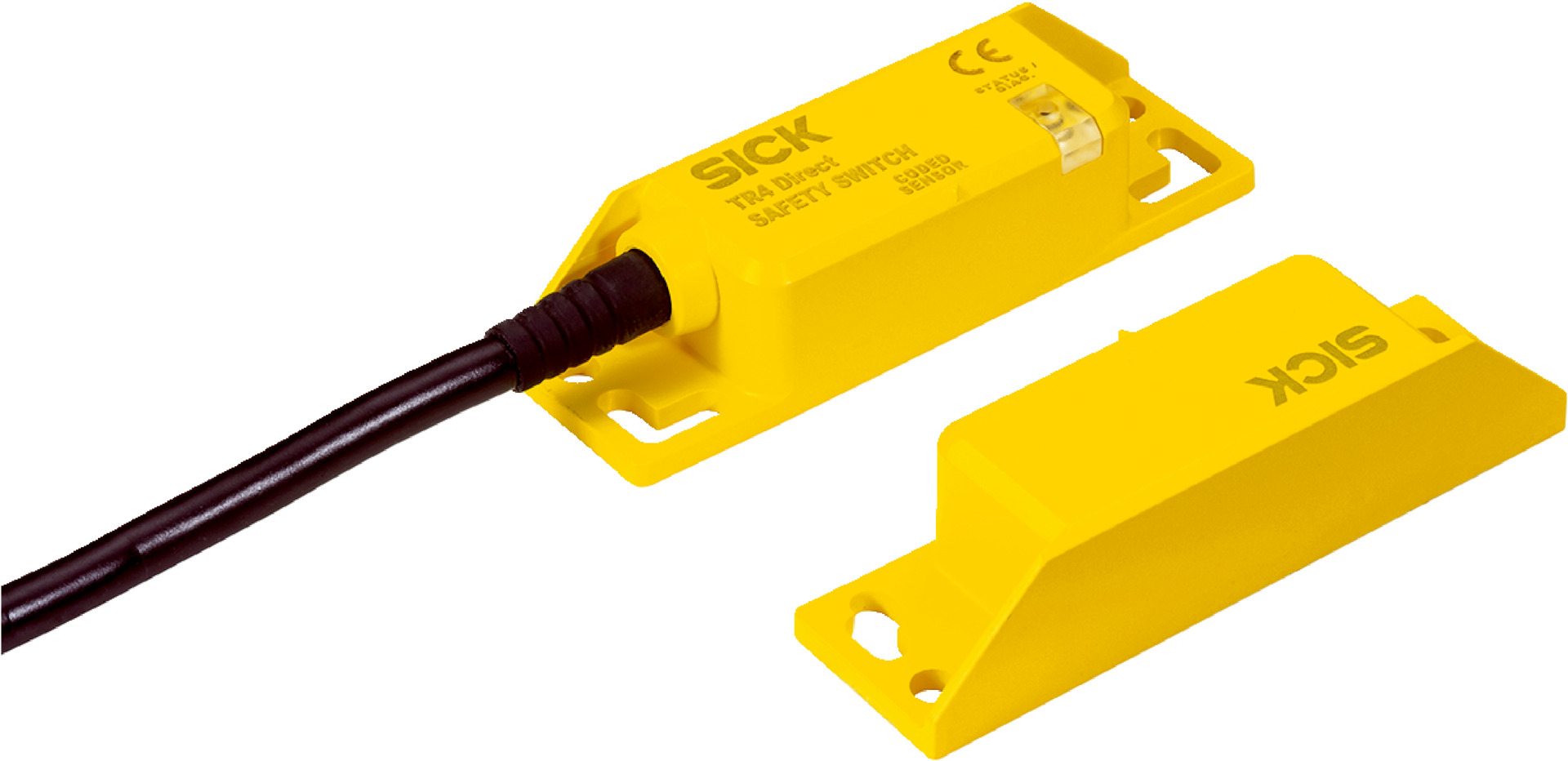

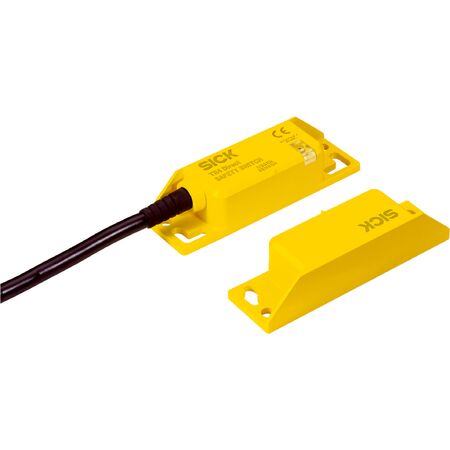

RFID Safety Sensor TR4-SFU10PB | SIL 3 & Category 4 | IP67/IP69K Rated | by SICK
The RFID Safety Sensor TR4-SFU10PB is designed for industrial safety systems, featuring a SIL 3 safety integrity level and Category 4 compliance. With two safe outputs and assured switch distances of 15 mm and 25 mm, it ensures reliable operation in machine guarding and access control applications. Its robust IP67 and IP69K rated housing withstands harsh environments, making it ideal for automation systems requiring high safety integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Assured switch on distance (Sao): 15 mm
- Assured switch off distance (Sar): 25 mm
- Actuation directions: 5
- Retaining force: ≤ 10 N
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 6.03 x 10^-10
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Classification: PDF-M (IEC/EN 60947-5-3)
- Safe state in fault: At least one OSSD off
- Connection type: Cable, 10 m length, PVC material
- Supply voltage: 24 V DC (20.4 V DC to 26.4 V DC)
- Power consumption: ≤ 50 mA
- Output current: ≤ 200 mA
- Response time: 45 ms
- Release time: 360 ms
- Risk time: ≤ 100 ms
- Switch-on time: 2 s
- Electrical life: 10 million switching cycles
- Protection class: III (EN 50178)
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 3.5 mm
- Shock resistance: 30 g, 11 ms
- Housing material: Valox® DR48
- Dimensions (H x L x W): 88mm x 20mm x 25mm
- Weight: 0.687 kg
Key Features
- RFID sensor principle with uniquely coded actuator
- Two safe outputs with assured switch on distance of 15 mm and switch off distance of 25 mm
- High safety integrity level SIL 3 and Category 4 compliance
- Safe state maintained with at least one safety-related semiconductor output off in fault conditions
- LED status display for operational feedback
- Robust IP67 and IP69K rated housing for harsh environments
- Operating temperature range from -25 °C to +70 °C
- Self-monitoring semiconductor outputs (OSSDs) with response time of 45 ms
Professional Installation Requirements
- Installation by qualified personnel trained in safety sensor systems is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Industrial safety systems requiring RFID sensor-actuator technology
- Machine guarding and access control in manufacturing environments
- Automation systems needing high safety integrity level sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 50 mA supports energy-efficient operation
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK TR4-SFU10PB RFID Safety Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications requiring high integrity safety sensors.
