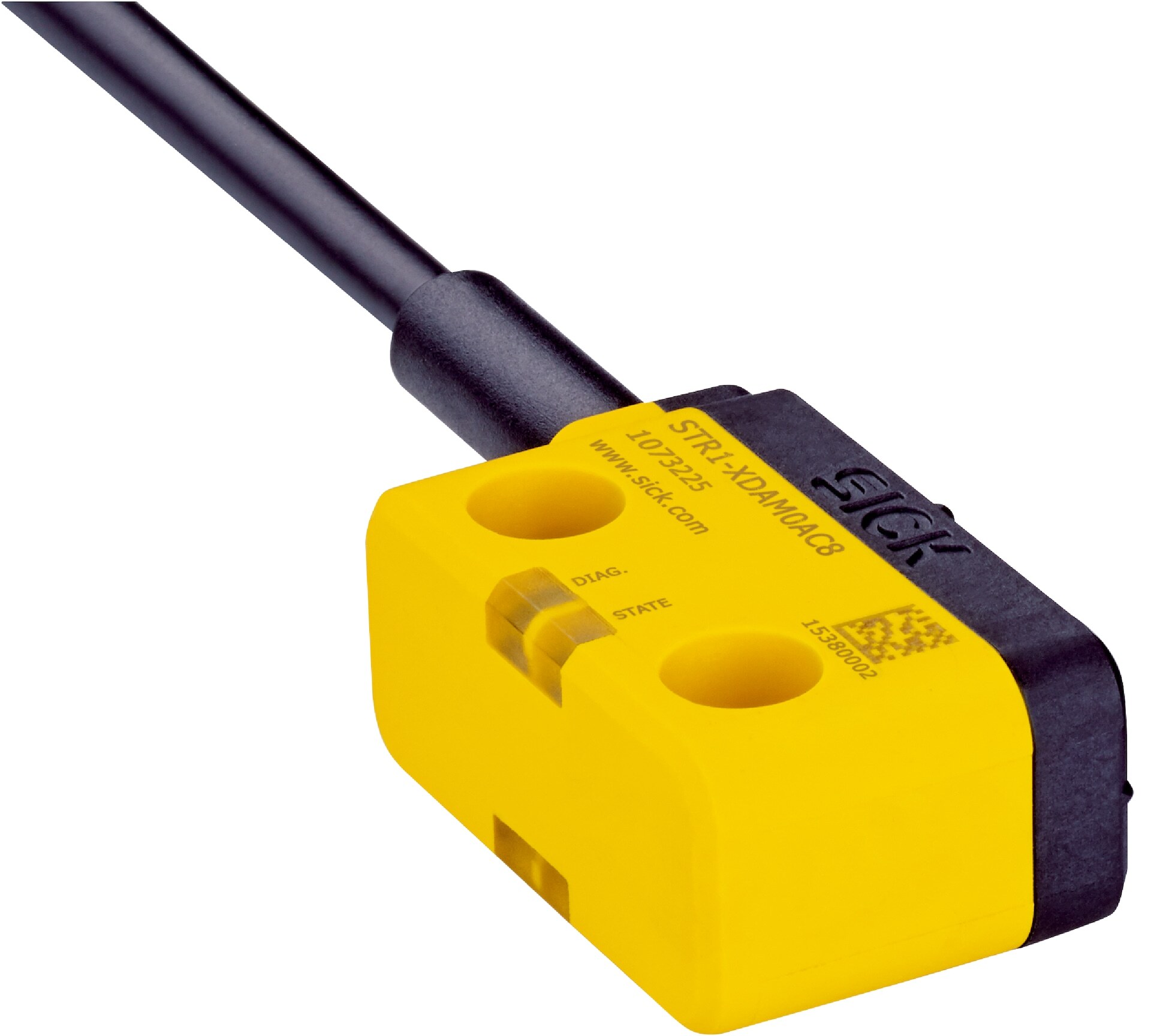

RFID Safety Sensor | Universal Coding | SIL 3 Safety Level | IP67 & IP69K Rated | by SICK
The RFID Safety Sensor is designed for industrial safety monitoring and machine guarding, featuring universal coding and two safe outputs for enhanced reliability. With a SIL 3 safety integrity level and IP67/IP69K ratings, it ensures optimal performance in harsh environments, making it ideal for automated systems and access control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Number of safe outputs: 2
- Auxiliary contact: 1 (complementary switching behavior to OSSDs)
- Assured switch on distance Sao: 14 mm (–10 to +70 °C), 10 mm (–30 to –10 °C)
- Assured switch off distance Sar: 28 mm
- Active sensor surfaces: 3 (top, left, right)
- Actuation directions: 5
- Coding: Universally coded
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 5.21 x 10^-9
- Mission time: 20 years
- Type: 4 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state in fault: At least one OSSD off
- Connection type: Cable with plug M12, 8-pin
- Cable length: 0.2 m
- Long connecting cable max: 200 m
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Bend radius fixed: > 8 x cable diameter
- Bend radius moving: > 12 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- Coupling nut material: Zinc die-cast, nickel-plated
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Classification cULus: Class 2
- Supply voltage: 24 V DC (19.2 to 28.8 V DC)
- Power consumption: 50 mA
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current: ≤ 100 mA
- Response time: 40 ms
- Release time: 100 ms
- Risk time: 80 ms
- Switch-on time: 2.5 s
- Housing material: VISTAL®
- Enclosure rating: IP67, IP69K
- Operating temperature: –30 °C to +70 °C
- Storage temperature: –30 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330 V2.1.1
- Dimensions (H x L x W): 18mm x 26mm x 40mm
- Weight: 0.1 kg
Key Features
- RFID sensor principle with universal coding
- Two safe outputs and one auxiliary contact with complementary switching behavior
- Assured switch on distance Sao of 14 mm (–10 to +70 °C) and 10 mm (–30 to –10 °C)
- Assured switch off distance Sar of 28 mm
- Three active sensor surfaces (top, left and right sides)
- Five actuation directions
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- Safe state maintained with at least one safety-related semiconductor output off in fault condition
- Safe series connection with T-connector and Flexi Loop with diagnostics
- LED display elements with diagnostics and status indicators
- Protection class III (IEC 61140) and Class 2 cULus classification
- Operating voltage 24 V DC with 50 mA power consumption
- Response time 40 ms, release time 100 ms, risk time 80 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Industrial safety monitoring
- Machine guarding
- Access control in automated systems
- Safety interlock systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing with IP67 and IP69K ratings ensures long service life and resistance to harsh environments
- Low power consumption reduces energy usage
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK STR1-SAXM0AC8 RFID Safety Sensor is available for immediate purchase, ideal for industrial safety and machine guarding applications.
