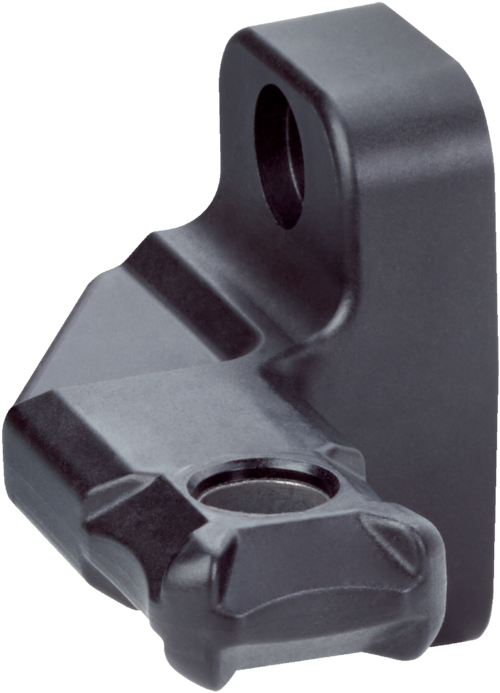

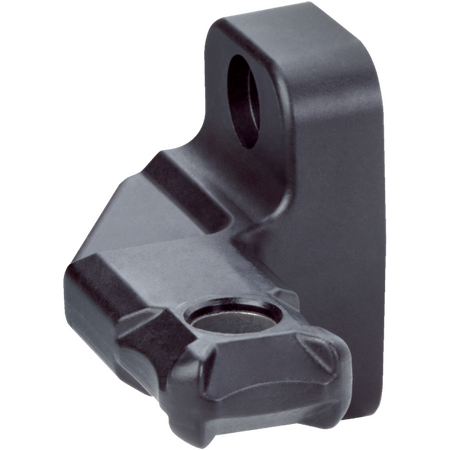

RFID Safety Switch Actuator FXL1-AR1 High Locking Force 3,510 N Design SICK
The RFID Safety Switch Actuator FXL1-AR1 is designed for industrial safety systems, featuring a high locking force of 3,510 N and a durable mechanical life of 1
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Switch Actuator, Rigid Actuator for flexLock, Safety Switch Accessory
Technical Specifications
- Accessory group: Actuators for RFID safety switches
- Locking force Fmax: 3,510 N (EN ISO 14119)
- Locking force FZh: 2,700 N (EN ISO 14119)
- Mechanical life: 1,000,000 switching cycles
- Enclosure rating: IP65, IP67, IP69K
- Ambient operating temperature: –20 °C to +55 °C
- Weight: 75 g
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Rigid actuator design allows insertion from front or side
- High locking force: 3,510 N (Fmax) and 2,700 N (FZh) compliant with EN ISO 14119
- Durable with mechanical life of 1 million switching cycles
- Suitable for flexLock safety switch systems
- Enclosure rated IP65, IP67, and IP69K for robust protection
- Operates reliably in ambient temperatures from –20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with RFID safety switch systems and compliance with occupational health and safety standards.
Applications
- Industrial safety systems requiring RFID safety switch actuators
- Machine guarding and access control with flexLock systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Complies with China RoHS and ECOLAB certificates ensuring environmentally responsible manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK FXL1-AR1 rigid actuator for RFID safety switches is available for immediate purchase, ideal for industrial safety and machine guarding applications.
