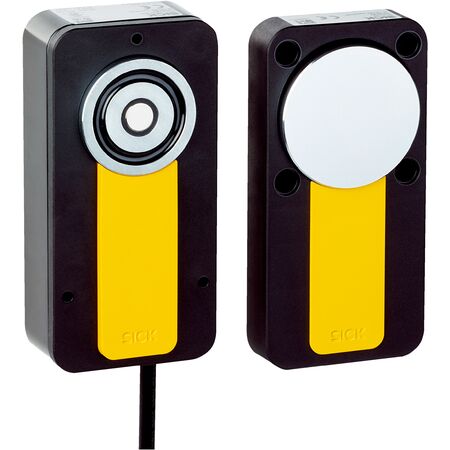

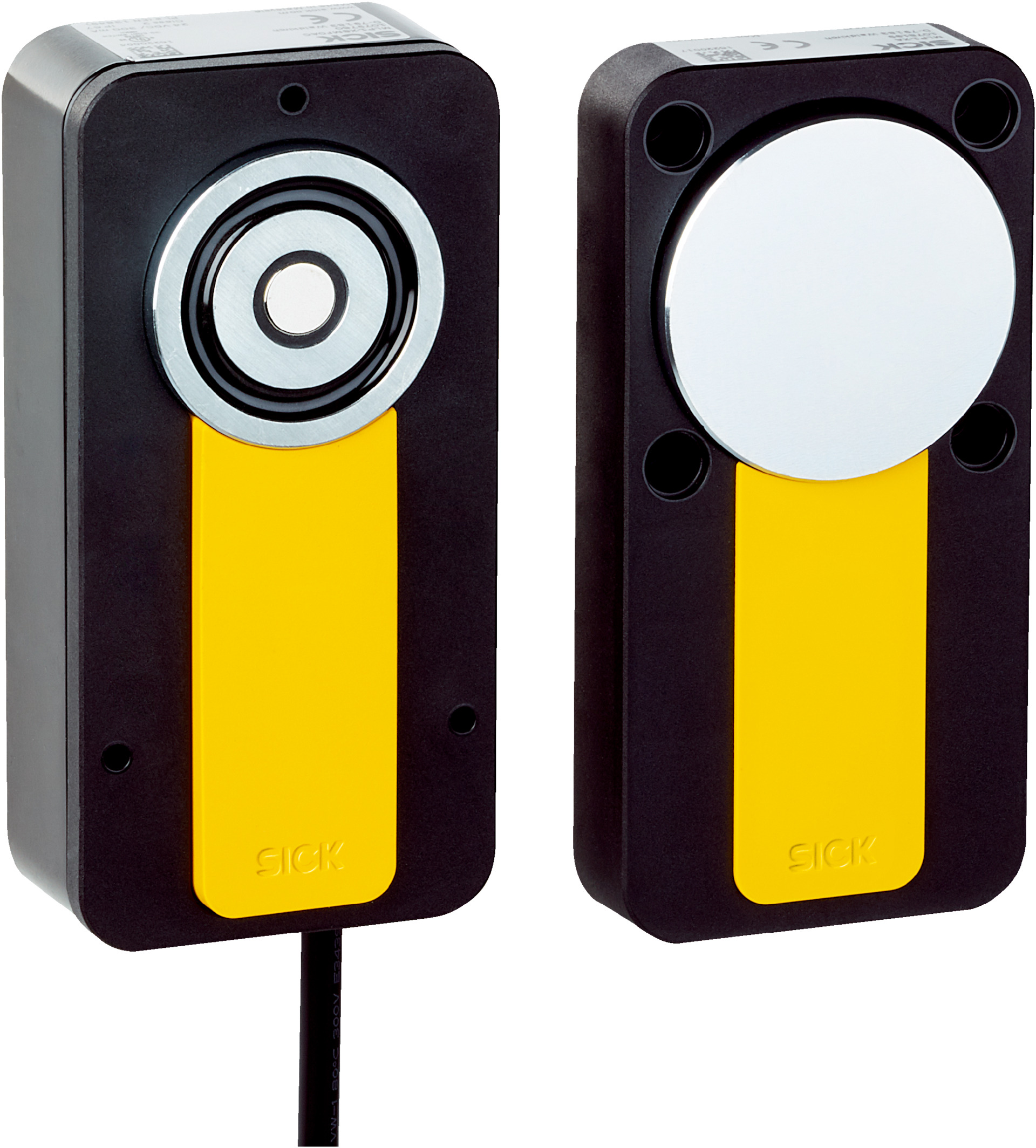

RFID Safety Switch MLP1-SMMC0AC | High Locking Force 550 N | SIL 3 Compliance | IP67 Rated | by SICK
The RFID Safety Switch MLP1-SMMC0AC is designed for industrial safety applications, featuring a high locking force of up to 550 N and SIL 3 compliance for enhanced safety. With an IP67 rated enclosure, it operates effectively in harsh environments, making it ideal for process protection and safety door monitoring in manufacturing and automation settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking force Fmax: 550 N (GS-ET-19)
- Locking force FZh: 500 N (GS-ET-19)
- Retaining force: 25 N
- Offset tolerance: ≤ 5 mm
- Assured switch off distance Sar: 45 mm
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state on fault: At least one OSSD off
- Connection type: Cable with plug and socket, M12, 5-pin
- Cable length: 150 mm
- Long connecting cable: ≤ 140 m
- Cable diameter: 5.5 mm
- Conductor cross section: 0.12 mm²
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated insulation voltage Ui: 32 V
- Rated impulse withstand voltage Uimp: 1500 V
- Supply voltage sensor: 24 V DC (19.2 V DC ... 28.8 V DC)
- Supply voltage magnet: 24 V DC (21.6 V DC ... 28.8 V DC)
- Power consumption locking active: 350 mA
- Power consumption locking deactivated: 50 mA
- Switching frequency: ≤ 0.5 Hz
- Output type: Self-monitoring semiconductor outputs (OSSDs)
- Output current (OSSDs): ≤ 100 mA
- Diagnostic output: ≤ 25 mA, short-circuit protected
- Response time: 50 ms
- Release time: 100 ms
- Risk time: 100 ms
- Switch-on time: 2.5 s
- Material sensor housing: Anodized aluminum
- Material actuator housing: Fiber-glass-reinforced PVC
- Material anchor plate: Nickel-plated steel
- Enclosure rating: IP67 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Relative humidity: 50% at 70 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3
- Dimensions (H x L x W): 60mm x 38.5mm x 120mm
- Weight: 0.72 kg
Key Features
- RFID sensor principle with power to lock mechanism
- Universally coded actuator for secure locking
- High locking force up to 550 N (GS-ET-19)
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with actuator monitoring
- LED status display for operational feedback
- IP67 rated enclosure for harsh environments
- Wide ambient operating temperature range from -20°C to +55°C
- Robust mechanical design with anodized aluminum sensor housing and fiber-glass-reinforced PVC actuator housing
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety interlock systems and electrical safety standards to ensure compliance and optimal operation.
Applications
- Industrial safety applications requiring RFID-based safety interlock
- Process protection in manufacturing and automation
- Safety door and gate monitoring in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient locking and unlocking
- Complies with RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLP1-SMMC0AC RFID Safety Switch is available for immediate purchase, ideal for industrial safety and process protection applications.
