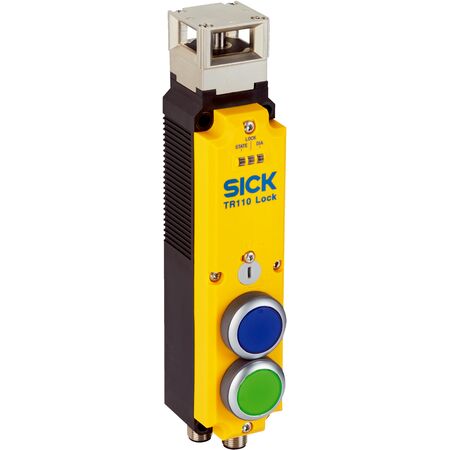

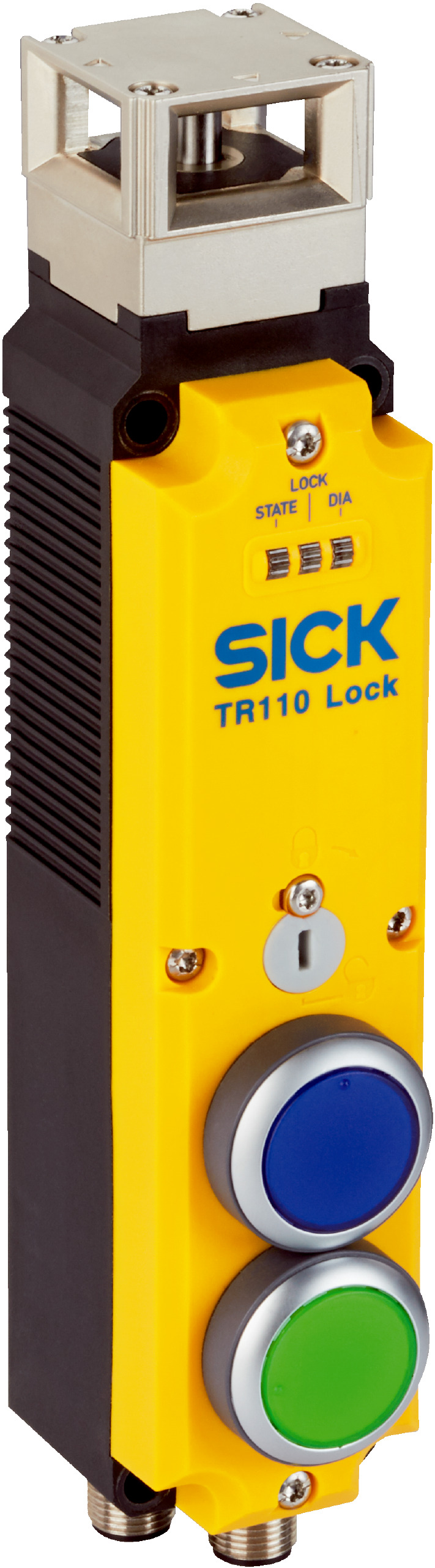

RFID Safety Switch TR110-SRU2BB0 | Power to Release Locking | High Security Coding | IP65 Rated | by SICK
The RFID Safety Switch TR110-SRU2BB0 is designed for industrial safety interlocking, featuring a power to release locking mechanism and uniquely coded for high security. With a robust IP65 rated enclosure, it's perfect for access control in hazardous areas and safety monitoring in automated production lines, ensuring compliance with SIL 3 and Category 4 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force with straight actuator: 3,000 N (EN ISO 14119)
- Locking force with angled actuator: 1,100 N (EN ISO 14119)
- Locking force with hinged actuator: 2,000 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: 20 N
- Force against which unlocking is possible: ≤ 20 N
- Actuation frequency: ≤ 0.5 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 5.38 x 10^-9
- Mission time: 20 years (EN ISO 13849)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level (EN ISO 14119)
- Safe state in event of fault: At least one safety-related semiconductor output (OSSD) is OFF
- Connection type: Plug connector, M12, 8-pin and M12, 5-pin
- Coupling nut material: Brass
- Protection class: III (IEC 61140)
- Contamination rating: 3 (EN 60947-1)
- Rated operating current: 150 mA (24 V DC)
- Rated insulation voltage Ui: 50 V
- Rated impulse withstand voltage Uimp: 500 V
- Supply voltage sensor and magnet: 24 V DC (20.4 V DC ... 28.8 V DC)
- Power consumption sensor: 40 mA
- Power consumption magnet: 400 mA
- Pushbutton (LED) current: 10 mA
- Type of output: Self-monitoring semiconductor outputs (OSSDs)
- Safety outputs current: 1 mA ... 150 mA
- Application diagnostic outputs current: 1 mA ... 50 mA
- Response time: ≤ 260 ms
- Release time: 150 ms
- Switch-on time: 5 s
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65 (EN 60529)
- Ambient operating temperature: –20 °C ... +55 °C
- Vibration resistance: 10 Hz ... 55 Hz (IEC 60068-2-6)
- Shock resistance: 30 g, 11 ms (EN 60068-2-27)
- EMC: EN IEC 60947-5-3
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.42 kg
Key Features
- RFID sensor principle for secure identification
- Power to release locking mechanism
- Uniquely coded for high security
- High locking forces with various actuator types
- Illuminable pushbuttons for easy operation
- LED display elements with diagnostics and status indicators
- Self-monitoring semiconductor safety outputs (OSSDs)
- High safety integrity level SIL 3 and Category 4 compliance
- Robust IP65 rated enclosure for harsh environments
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety interlock systems and electrical safety standards.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety monitoring in automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption electronics enhance energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK TR110-SRU2BB0 RFID Safety Switch is available for immediate purchase, ideal for industrial safety and access control applications.
