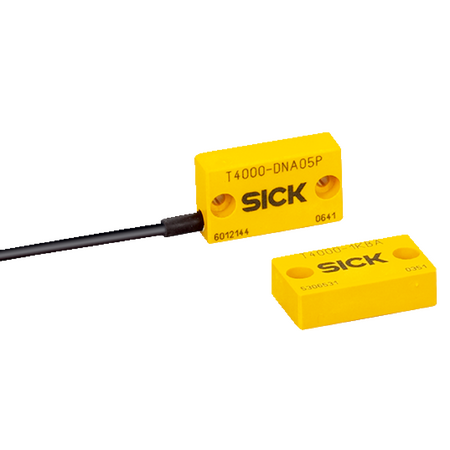

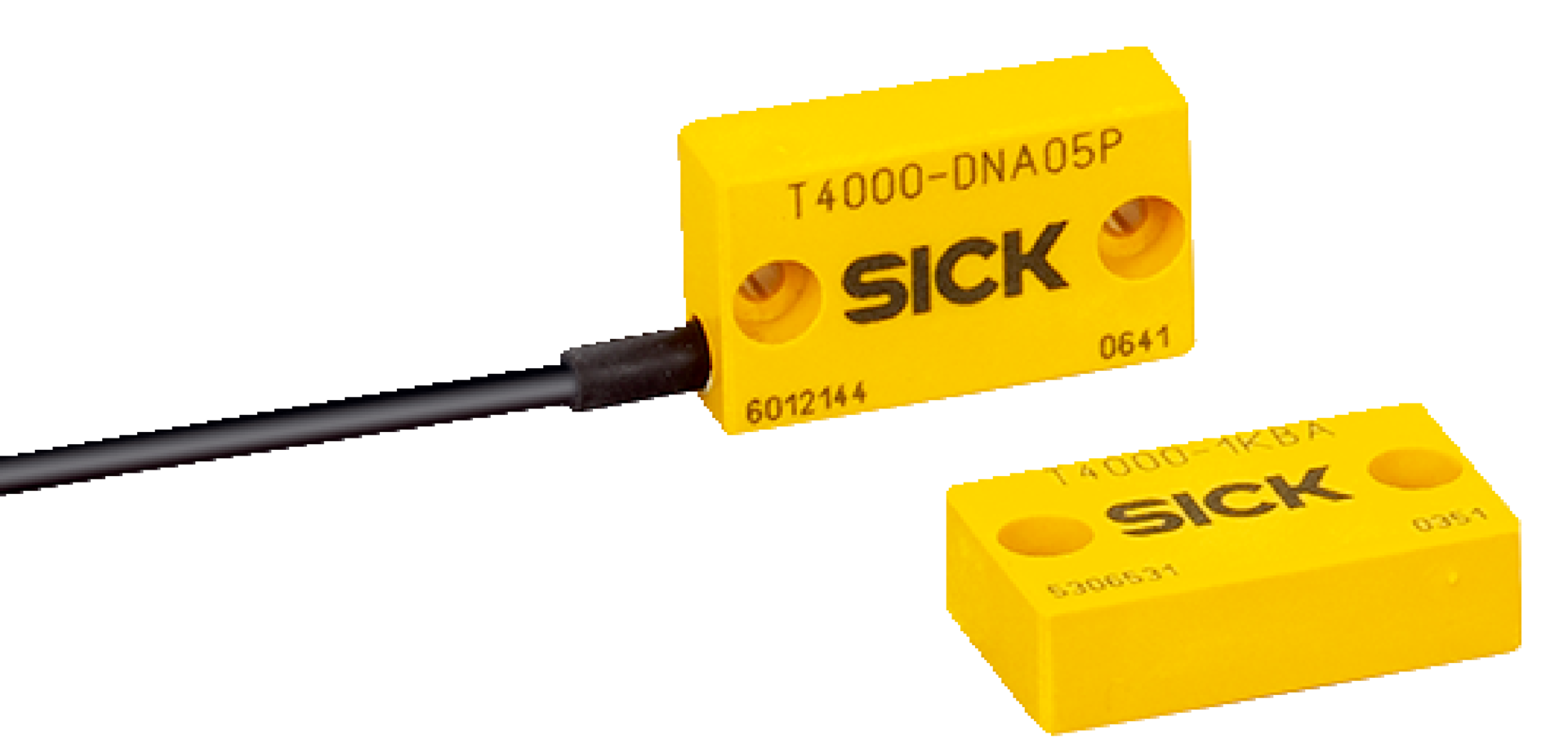

RFID Sensor T4000-DNA05P | IP67 Rated | 5 mm or 10 mm Switch On Distance | Robust Fortron Housing | by SICK
The RFID Sensor T4000-DNA05P is designed for industrial automation, featuring a unique coding system and an assured switch on distance of 5 mm or 10 mm. With its IP67 rated enclosure, this sensor is perfect for object detection and safety monitoring in harsh environments, ensuring reliable performance in machine and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID sensor T4000-DNA05P, SICK RFID proximity sensor, industrial RFID sensor
Technical Specifications
- Sensor principle: RFID
- Assured switch on distance Sao: 5 mm or 10 mm
- Assured switch off distance Sar: 23 mm or 32 mm
- Active sensor surfaces: 1
- Actuation directions: 5
- Monitoring time minimum dwell time: ≥ 0.5 s
- Coding: Uniquely coded
- Connection type: Cable
- Cable length: 5 m
- Cable diameter: 4.6 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: > 5 x cable diameter
- Bend radius moving cable: > 10 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- Design: Rectangular
- Housing material: Fortron, glass-fiber reinforced thermoplastic
- Enclosure rating: IP67
- Operating temperature range: –25 °C to +70 °C
- Storage temperature range: –25 °C to +70 °C
- Dimensions (H x L x W): 42mm x 12mm x 25mm
- Weight: 0.25 kg
Key Features
- RFID sensor principle with uniquely coded signals
- Assured switch on distance Sao: 5 mm or 10 mm
- Assured switch off distance Sar: 23 mm or 32 mm
- Single active sensor surface with 5 actuation directions
- Monitoring time minimum dwell time ≥ 0.5 s
- Rectangular design with robust Fortron glass-fiber reinforced thermoplastic housing
- IP67 rated enclosure for dust and water protection
- Cable connection with 5 m PVC cable and copper conductor
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with RFID sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection and identification
- Safety and monitoring systems requiring RFID sensing
- Machine and process control requiring reliable sensor input
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Warranty details available upon request from SICK, typically 1-3 years depending on region and application.
Available Now
The SICK T4000-DNA05P RFID Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
