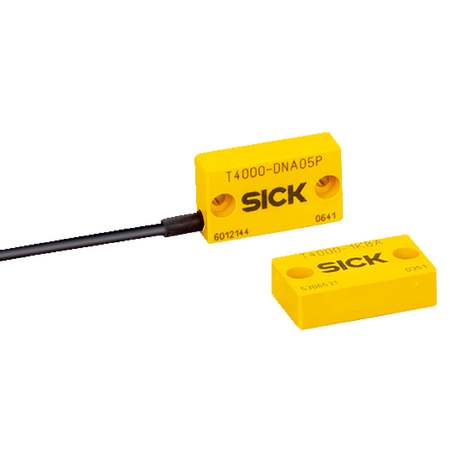

RFID Sensor T4000-DNA10P | IP67 Rated | 10m PVC Cable | Uniquely Coded | by SICK
The RFID Sensor T4000-DNA10P is designed for reliable identification in industrial automation, featuring an assured switch on distance of 5 mm or 10 mm and a robust IP67 rated enclosure for dust and water protection. With a 10m PVC cable and uniquely coded for secure operation, this sensor is perfect for safety and monitoring systems, ensuring efficient machine and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID sensor T4000-DNA10P, SICK RFID sensor, Industrial RFID sensor
Technical Specifications
- Sensor principle: RFID
- Assured switch on distance Sao: 5 mm or 10 mm
- Assured switch off distance Sar: 23 mm or 32 mm
- Active sensor surfaces: 1
- Actuation directions: 5
- Monitoring time minimum dwell time: ≥ 0.5 s
- Coding: Uniquely coded
- Connection type: Cable
- Cable length: 10 m
- Cable diameter: 4.6 mm
- Conductor cross section: 0.25 mm²
- Bend radius fixed installation: > 5 x cable diameter
- Bend radius moving cable: > 10 x cable diameter
- Cable material: PVC
- Conductor material: Copper
- Design: Rectangular
- Housing material: Fortron, glass-fiber reinforced thermoplastic
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +70 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 42mm x 12mm x 25mm
- Weight: 0.39 kg
Key Features
- RFID sensor principle for reliable identification
- Assured switch on distance Sao: 5 mm or 10 mm
- Assured switch off distance Sar: 23 mm or 32 mm
- Uniquely coded for secure operation
- Rectangular design with robust Fortron glass-fiber reinforced thermoplastic housing
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +70 °C
- 10 m PVC cable with copper conductor for connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with RFID sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection and identification
- Safety and monitoring systems requiring RFID sensing
- Machine and process control environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient sensor operation lowers power consumption
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK T4000-DNA10P RFID Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
