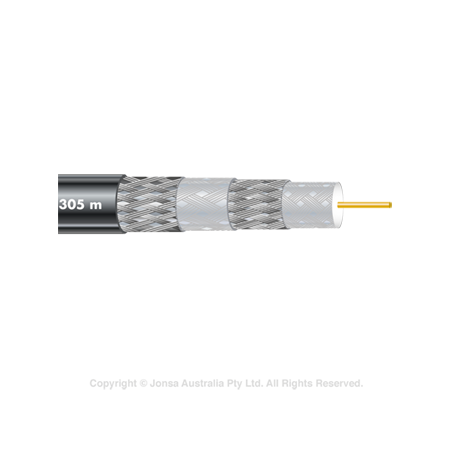

RG11 Quad-Shield Coaxial Cable 305m Black Jonsa

BRAND: Jonsa
SKU: CRG11BQ
$539.50 List price: $719.30
+ −
30 Days Return Electricians Unlock Trade Access
Jonsa RG11 Quad-Shield coaxial cable, 305m, 75 Ohm. Ideal for free-to-air, satellite and CCTV installs.
Technical Specifications
  • Centre Conductor Material: Copper Clad Steel Wire
  • Centre Conductor Diameter: 1.63 ± 1% (AWG14)
  • Dielectric Material: Foamed HD Polyethylene
  • Dielectric Diameter: 7.11 mm
  • Laminated Shielding Tape Material: Laminated Aluminium Foil
  • Laminated Shielding Tape Thickness: 60 Microns
  • Core Diameter: 7.32 ± 0.15 mm
  • Inner Braid Material: Aluminium Alloy Wires
  • Inner Braid Minimum Braiding Coverage: 60%
  • Outer Braid Material: Aluminium Alloy Wires
  • Outer Braid Minimum Braiding Coverage: 40%
  • Sheath Material: PVC/PE
  • Sheath Thickness: 0.94 mm
  • Overall Diameter: 10.34 ± 0.25 mm
  • Attenuation @ 20 °C: 5 MHz - 1.25 dB/100 m, 55 MHz - 3.15 dB/100 m, 211 MHz - 6.23 dB/100 m, 250 MHz - 6.72 dB/100 m, 270 MHz - 7 dB/100 m, 300 MHz - 7.38 dB/100 m, 330 MHz - 7.71 dB/100 m, 350 MHz - 7.94 dB/100 m, 400 MHz - 8.53 dB/100 m, 450 MHz - 9.02 dB/100 m, 500 MHz - 9.51 dB/100 m, 550 MHz - 9.97 dB/100 m, 600 MHz - 10.43 dB/100 m, 750 MHz - 11.97 dB/100 m, 870 MHz - 13.31 dB/100 m, 1000 MHz - 14.27 dB/100 m, 1300 MHz - 16 dB/100 m, 1550 MHz - 17.42 dB/100 m, 1770 MHz - 19.58 dB/100 m, 2050 MHz - 21.61 dB/100 m, 2400 MHz - 23.10 dB/100 m
  • Dimensions (H x L x W): 20 mm x 305000 mm x 20 mm
  • Weight: 1.5 kg
Key Features
  • Copper clad steel wire center conductor for improved signal quality.
  • Foamed HD polyethylene dielectric for reduced signal loss.
  • Laminated aluminum foil shielding for enhanced protection against interference.
  • PVC/PE sheath for durability and flexibility.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Television and internet connections
  • CCTV installations
  • General data transmission
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Reduced electronic waste due to durable construction.
  • Energy-efficient design minimizes power consumption in connected devices.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Jonsa Coaxial RG11 Quad Cable - 305M is available now for immediate purchase. Ideal for various applications requiring high-quality signal transmission.


FAQ

Q: What is the RG11 Quad Shield Coaxial Cable used for?

A: It's suited to television and internet connections, CCTV installations, and general data transmission.

Q: What conductor and shielding does this cable use?

A: It has a copper clad steel centre conductor with laminated aluminium foil shielding plus aluminium alloy inner and outer braids for enhanced interference protection.


For messengered outdoor runs, the RG11 quad shield messengered coaxial cable is built for indoor and outdoor installation.

Where moisture protection is needed, the RG11 quad shield flooded coaxial cable adds a gel-filled construction for below-ground or wet-area runs.

For lighter-duty runs, the RG59 quad shield coaxial cable offers a thinner alternative for shorter distribution lines.
