RG11 Quad-Shield Coaxial Cable 305m Flooded Matchmaster
Matchmaster RG11 Quad-Shield coaxial cable, 305m, 75 Ohm. Ideal for free-to-air, satellite and CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

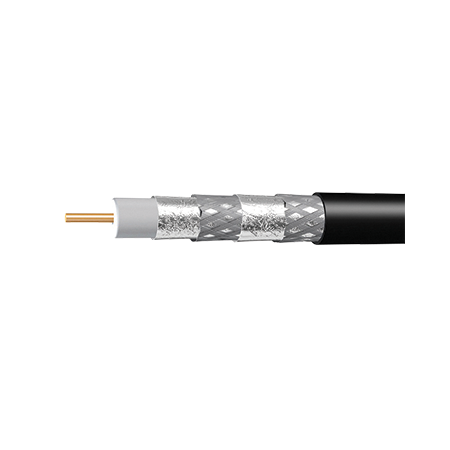

- Inner Conductor: Copper Clad Steel Wire, Diameter 1.63±0.015 mm
- Insulation: Physically Foamed PE, Diameter 7.11±0.15 mm
- Outer Conductor: Quad Shield - Bonded Al/PET/Al Tape, Al-Mg Alloy Wire Braid (2 layers), Non-bonded Al/PET/Al Tape
- Jacket Material: PE, Diameter 10.34±0.20 mm
- Bending Radius: Single 50 mm, Typical 100 mm
- Pulling Strength: 384 N
- Adhesion Force: >60 N
- Impedance: 75±3 Ω
- DCR Inner Conductor: 40.40 Ω/km
- DCR Outer Conductor: 14.40 Ω/km
- Capacitance: 54 pF/m
- Propagation Velocity: 82%
- DC Breakdown Voltage: 6.0 kV
- Insulation Resistance: >1×10^4 MΩ•km
- Screening Attenuation: >105 dB @ 5~1000 MHz, >95 dB @ 1000~2000 MHz, >85 dB @ 2000~3000 MHz
- Max Attenuation @ 20°C: 1.25 dB/100m at 5 MHz up to 25.86 dB/100m at 3000 MHz
- Return Loss: ≥20 dB from 5-3000 MHz
- Operating Temperature: -40 to +70°C
- UL 1581 UV Resistance: 720 hours
- RoHS Compliant (2011/65/EU)
- Dimensions (H x L x W): 103mm x 305000mm x 103mm
- Weight: 12 kg
Key Features
- RG11 metre marked cable with quad-shield
- Flooded gel filled cable designed for underground use
- Suitable and approved for pay and digital TV
- Foxtel (F30445), Telstra (739/10) and NBN approved
- 3GHz rated low loss coaxial cable
- Copper-clad steel centre conductor for durability
- Four shielding layers for maximum signal protection and stability
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper handling, termination, and compliance with network standards.
Applications
- Free-to-air and pay TV systems
- Foxtel satellite and Telstra cable networks
- Underground cable links
- Outdoor exposed cable installations
- Long cable backbone runs requiring low loss
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flooded gel compound prevents moisture ingress, extending cable life and reducing waste
- Durable materials reduce need for frequent replacements
- Compliant with RoHS directive (2011/65/EU) limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now

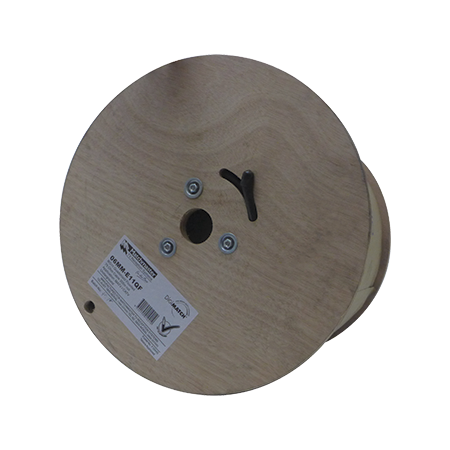

The Matchmaster 305m RG11 Flooded Quad-shield Coaxial Cable Reel is available now for immediate purchase. Ideal for professional and residential installations requiring high-quality, durable coaxial cable for TV and data transmission.
FAQ
Q: What makes this RG11 cable suitable for underground use?
A: It has a flooded gel-filled construction that prevents moisture ingress, extending cable life for buried or wet-area runs.
Q: What approvals does this cable carry?
A: It's Foxtel (F30445), Telstra (739/10) and NBN approved, and complies with AS/NZS 3112 and AS/NZS 3000 standards.
For installations that don't require moisture protection, the standard RG11 quad shield free to air coaxial cable is available in the same 305m format.
For aerial spans instead of buried runs, the RG11 quad shield messengered coaxial cable includes a steel catenary wire for self-supported installation.
Where fire safety is a priority, the RG11 quad shield LSZH coaxial cable uses a low smoke zero halogen jacket for indoor backbone runs.
