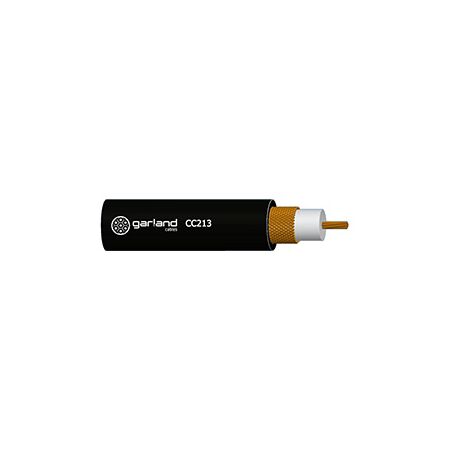

RG213 Coaxial Cable 100m 50 Ohm Madison

BRAND: Madison
SKU: CC213100
$834.30 List price: $1,022.30
100 Meter ($8.34 per Meter)
+ −
30 Days Return Electricians Unlock Trade Access
Madison RG213 coaxial cable, 100m, 50 Ohm. Ideal for free-to-air, satellite and CCTV installs.

Product Name/Title: Coaxial Cable Low Loss RG213 | 50 Ohm Impedance | 100m Length | Durable PVC Sheath | by Madison

Brand: Madison

SKU: CC213100

Alternatively Known As: RG213 Coaxial Cable, Low Loss RG213 Cable, 50 Ohm Coax Cable, Communication Coaxial Cable

Technical Specifications
  • Conductor: 7 strands of 0.7mm BC wire, AWG 13
  • Conductor DC Resistance @ 20°C: 6.5Ω/km
  • Nominal Characteristic Impedance @ 1MHz: 50±3Ω
  • Insulation Material: Solid PE, Nominal Thickness 2.5mm
  • Outer Sheath Material: PVC, Nominal Thickness 1.15mm
  • Insulation Elongation at Break: >300%
  • Outer Sheath Elongation at Break: >100%
  • Tensile Strength Before Aging: >12MPa
  • Voltage Test: Conductor to core 500V for 1 min
  • Voltage Test: Core to sheath 3.0kV AC for 1 min
  • Operating Temperature Range: -15 to 70°C
  • Max Recommended Pulling Tension: 188N
  • Minimum Bend Radius (Installation): 103mm
  • Dimensions (H x L x W): 394mm x 100000mm x 540mm
  • Weight: 15.6 kg
Key Features
  • Low loss coaxial cable with 50 ohm impedance
  • Compliant with UL758 standard
  • ROHS compliant
  • Solid PE insulation with high elongation
  • PVC outer sheath for durability
  • Suitable for operating temperatures from -15 to 70°C
  • Max recommended pulling tension of 188N
  • Minimum bend radius of 103mm for installation
Professional Installation Requirements
  • Installation should be performed by qualified professionals to ensure proper handling and compliance with electrical standards.
Applications
  • Signal control systems
  • Communication systems
Standards & Compliance
  • Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • ROHS compliant, ensuring reduced hazardous substances
  • Durable materials reduce need for frequent replacement
Warranty Information

Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.

Available Now

The Madison Coaxial Cable Low Loss RG213 50ohm 100m is available for immediate purchase, ideal for signal control and communication system applications.


FAQ

Q: What is the impedance of this RG213 coaxial cable?

A: This Madison RG213 cable has a 50 ohm nominal characteristic impedance at 1MHz, with a tolerance of ±3 ohm.

Q: Is this cable suitable for demanding or high-temperature installations?

A: Yes, it operates across a -15°C to 70°C temperature range and is compliant with AS/NZS 60035 for electrical equipment in explosive atmospheres, supporting reliable use in demanding environments.


Pair this run with the RG213 coaxial cable available in a 500m length for larger installations.

Projects requiring four-layer shielding can use the RG6 quad shield coaxial cable instead.

Termination on site is handled with a coax crimping tool sized for this connector range.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
