RG58 Coaxial Cable 300m 50 Ohm Madison

BRAND: Madison
SKU: CC58300B
$581.50 List price: $712.60
300 Meter ($1.94 per Meter)
+ −
30 Days Return Electricians Unlock Trade Access

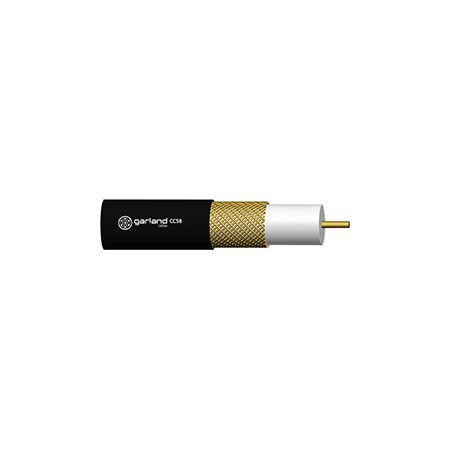

Madison RG58 coaxial cable, 300m, 50 Ohm. Ideal for free-to-air, satellite and CCTV installs.

Product Name/Title: Coax Cable Low Loss RG58 50Ω | 300m Length | Durable PVC Sheath | @Each by Madison

Brand: Madison

SKU: CC58300B

Alternatively Known As: RG58 Coaxial Cable, 50 Ohm Coax Cable, Low Loss RG58 Cable, Coaxial RF Cable

Technical Specifications
  • Conductor: 20 AWG, 19 strands of 0.19mm diameter tinned copper
  • Conductor DC Resistance @ 20°C: 35.1 Ω/km
  • Insulation: Solid PE, 0.95mm thickness, 2.9mm nominal outer diameter
  • Braiding: 0.93mm thickness
  • Outer Sheath: PVC, black color, 0.7mm thickness, 4.95mm nominal outer diameter
  • Nominal Characteristic Impedance: 50±3 Ω at 1 MHz
  • Minimum Insulation Resistance @ 20°C: 1,000 MΩ·km
  • Voltage Test: 500V for conductor to core, 3.0kV AC for core to sheath
  • Operating Temperature Range: -15°C to 70°C
  • Minimum Bend Radius: 50mm
  • Approximate Mass: 4.4 kg per 100m
  • Dimensions (H x L x W): 218mm x 300000mm x 330mm
  • Weight: 13.2 kg
Key Features
  • Low loss RG58 coaxial cable with 50Ω characteristic impedance
  • Compliant with AS/ACIF S008 and UL758 standards
  • RoHS compliant and A-Tick certified
  • Solid PE insulation with PVC outer sheath for durability
  • Operating temperature range from -15°C to 70°C
  • Minimum bend radius of 50mm for installation flexibility
Professional Installation Requirements
  • Installation should be performed by qualified professionals to ensure proper handling and compliance with electrical standards.
Applications
  • Telecommunications: Radio frequency transmission
  • Broadcasting: TV and radio antenna connections
  • Networking: Data and signal transmission
  • General: Low loss coaxial cable applications requiring 50Ω impedance
Standards & Compliance
  • Complies with AS/ACIF S008 standard
Environmental Benefits
  • RoHS compliant, ensuring reduced hazardous substances
  • Durable materials reduce the need for frequent replacements
Warranty Information

Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.

Available Now

The Madison Coax Cable Low Loss RG58 50Ω AA 300m is available for immediate purchase, ideal for telecommunications, broadcasting, and networking applications.


FAQ

Q: What impedance does this Madison RG58 coaxial cable offer?

A: It has a 50Ω±3Ω nominal characteristic impedance at 1MHz, suiting radio frequency transmission and broadcasting applications.

Q: What standards does this cable comply with?

A: It complies with the AS/ACIF S008 standard and is RoHS compliant and A-Tick certified.


For shorter installations, a low loss RG58 coaxial cable is also available in a 100m length.

For continuity checks across long cable runs, a coax cable tester verifies signal conditions at multiple points.

Terminate runs of this cable with a BNC male connector for RG6 where compatible connector types are needed.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
