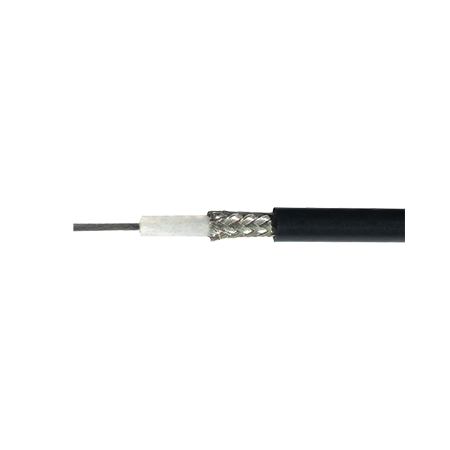

RG58 Coaxial Cable 500m 5mm 50 Ohm Matchmaster

BRAND: Matchmaster
SKU: 56MM-E58-500
$1,246.10 List price: $1,661.50
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Matchmaster RG58 coaxial cable, 500m, 50 Ohm. Ideal for free-to-air, satellite and CCTV installs.
Technical Specifications
  • Centre Conductor: Twisted Annealed Tinned Copper Wire 19/0.18mm
  • Insulation: Solid Polyethylene, 2.92mm ±0.05mm
  • Shield: Tinned Copper Wire Braid 7/16/0.127mm, 3.49mm ±0.05mm
  • Jacket: Non Contaminating UV Stable PVC, 4.95mm ±0.05mm
  • Net Cable Weight: 3.6kg/100m
  • Max Recommended Pulling Tension: 19kg
  • Minimum Bend Radius: 25mm
  • Operating Temperature: -40° to +80°C
  • Attenuation at 30MHz: 7.79 dB/100m
  • Impedance: 50Ω Nominal
  • Velocity of Propagation: 66%
  • Maximum Operating Voltage: 1400V RMS
  • Dimensions (H x L x W): 50mm x 500000mm x 5000mm
  • Weight: 18 kg
Key Features
  • 500m length RG58C/U coaxial cable
  • 50 ohm nominal impedance
  • Velocity of propagation 66%
  • Frequency range 30-1000MHz
  • Capacitance 98.4pF/m
  • Cut and terminate to exact lengths required
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended to ensure proper cable handling and termination for optimal performance.
Applications
  • CB Radio systems
  • VHF and UHF radio systems with shorter cable runs
  • Computer networking
  • Amateur radio
  • Base radio antenna stations
Standards & Compliance
  • Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • Durable UV stable PVC jacket extends cable life reducing waste
  • High quality materials reduce signal loss and energy waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.

Available Now

The Matchmaster 500m RG58C/U 5mm Coaxial Cable Roll is available now for immediate purchase. Ideal for radio communication and networking applications.


FAQ

Q: What specification does this Matchmaster coaxial cable meet?

A: It's built to RG58C/U type and MIL-C-17D specification, suiting CB radio, VHF and UHF radio systems, and computer networking applications.

Q: What is the impedance of this coaxial cable?

A: It has a 50Ω nominal impedance with a velocity of propagation of 66%, suiting radio communication and networking applications.


For shorter installations, a low loss RG58 coaxial cable is also available in a 100m length.

Verify continuity on long cable runs with a coax cable tester before commissioning the installation.

Terminate cut lengths of this cable with a BNC male connector for RG6 where compatible connector types are needed.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
