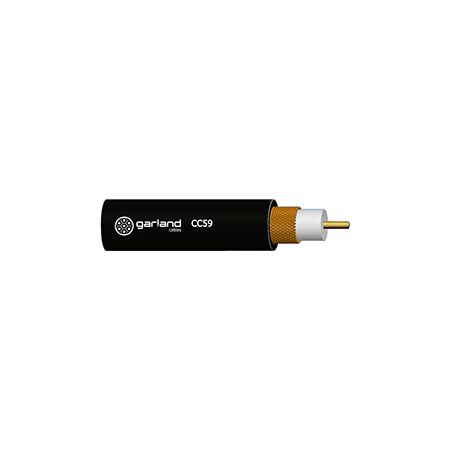

RG59 Coaxial Cable 100m 75 Ohm Madison
Madison RG59 coaxial cable, 100m, 75 Ohm. Ideal for free-to-air, satellite and CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coaxial Cable Low Loss RG59 | 75 Ohm | 100m Length | PVC Outer Sheath | by Madison
Brand: Madison
SKU: CC59100
Alternatively Known As: RG59 Coaxial Cable, Low Loss RG59 Cable, 75 Ohm Coax Cable, Communication Coax Cable
Technical Specifications
- Conductor: BC, AWG 23, 0.29 mm² area, 0.6 mm diameter
- Insulation: Solid PE, 1.5 mm thickness, 3.7 mm nominal outer diameter
- Braiding: 0.84 mm
- Outer Sheath: PVC, black color, 0.9 mm thickness, 6.2 mm nominal outer diameter
- Max Conductor DC Resistance @ 20°C: 62Ω/km
- Nominal Characteristic Impedance @ 1MHz: 75±3Ω
- Minimum Insulation Resistance @ 20°C: 1,000 MΩ.km
- Voltage Test: 500V/1min conductor to core, 3.0kV ac/1min core to sheath
- Operating Temperature Range: -15 to 70°C
- Max Recommended Pulling Tension: 107N
- Minimum Bend Radius (Install): 62mm
- Dimensions (H x L x W): 218mm x 100000mm x 390mm
- Weight: 5.5 kg
Key Features
- Low loss RG59 coaxial cable
- Single core conductor with AWG 23
- Solid PE insulation with 1.5mm nominal thickness
- PVC outer sheath in black color
- Nominal characteristic impedance of 75±3Ω at 1MHz
- Voltage test: 500V/1min conductor to core, 3.0kV ac/1min core to sheath
- Operating temperature range from -15 to 70°C
- Max recommended pulling tension of 107N
- Minimum bend radius of 62mm during installation
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by qualified professionals to ensure compliance with electrical standards and optimal cable performance.
Applications
- Signal control systems
- Communication systems
Standards & Compliance
- Complies with UL758 standard
- Relevant Australian standard: AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug) for electrical connectors compatibility
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in the cable materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.
Available Now
The Madison Coaxial Cable Low Loss RG59 75Ω 100m is available for immediate purchase, ideal for signal control and communication system applications.
FAQ
Q: What is the impedance of this RG59 coaxial cable?
A: This Madison RG59 cable has a 75±3Ω nominal characteristic impedance at 1MHz, suited to communication and signal control applications.
Q: What standards does this cable comply with?
A: It complies with the UL758 standard and the relevant AS/NZS 3112 standard for connector compatibility, giving added confidence for installation.
The same RG59 coaxial cable is also available in longer 300m and 500m lengths for larger jobs.
Termination on site is handled with a coax crimping tool sized for this connector range.
Connections along the run can be finished using a coaxial cable stripping tool for clean, precise prep.
