RG59 Coaxial Cable 500m 75 Ohm Madison

BRAND: Madison
SKU: CC59500
$714.10 List price: $875.00
500 Meter ($1.43 per Meter)
+ −
30 Days Return Electricians Unlock Trade Access
Madison RG59 coaxial cable, 500m, 75 Ohm. Ideal for free-to-air, satellite and CCTV installs.

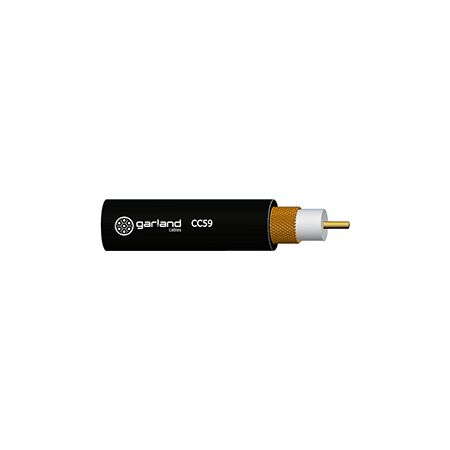

Product Name/Title: Coaxial Cable Low Loss RG59 | 75Ω Impedance | 500m Length | PVC Outer Sheath | by Madison

Brand: Madison

SKU: CC59500

Alternatively Known As: RG59 Coaxial Cable, Low Loss Coax Cable, 75 Ohm Coax Cable, Communication Cable

Technical Specifications
  • Conductor: 1 core, 23 AWG BC (Bare Copper)
  • Conductor diameter: 0.6mm
  • Insulation: Solid PE, 1.5mm thickness, 3.7mm nominal OD
  • Braiding: 0.84
  • Outer sheath: PVC, black, 0.9mm thickness, 6.2mm nominal OD
  • Max conductor DC resistance @ 20°C: 62Ω/km
  • Nominal characteristic impedance @ 1MHz: 75±3Ω
  • Minimum insulation resistance @ 20°C: 1,000 MΩ.km
  • Voltage test: 500V/1min conductor to core, 3.0kV ac/1min core to sheath
  • Operating temperature range: -15 to 70°C
  • Max recommended pulling tension: 107N
  • Minimum bend radius (install): 62mm
  • Approximate mass: 5.5kg per 100m
  • Dimensions (H x L x W): 218mm x 500000mm x 390mm
  • Weight: 27.5 kg
Key Features
  • Low loss RG59 coaxial cable with 75Ω characteristic impedance
  • Compliant with UL758 standard
  • RoHS compliant
  • Single core conductor with 23 AWG BC material
  • Solid PE insulation with 1.5mm nominal thickness
  • PVC outer sheath in black with 0.9mm nominal thickness
  • High elongation and tensile strength for durability
  • Voltage test: 500V/1min conductor to core, 3.0kV ac/1min core to sheath
  • Operating temperature range from -15 to 70°C
  • Max recommended pulling tension of 107N
  • Minimum bend radius of 62mm for installation
Professional Installation Requirements
  • Installation should be performed by qualified professionals to ensure proper handling and compliance with electrical standards.
Applications
  • Signal control systems
  • Communication systems
Standards & Compliance
  • Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • RoHS compliant, ensuring reduced hazardous substances
  • Durable materials reduce need for frequent replacement
Warranty Information

Standard manufacturer warranty applies. Please refer to Madison's warranty policy for details.

Available Now

The Madison Coaxial Cable Low Loss RG59 75Ω 500m is available for immediate purchase, ideal for signal control and communication system installations.


FAQ

Q: What is the impedance of this RG59 coaxial cable?

A: This Madison RG59 cable has a 75±3Ω nominal characteristic impedance at 1MHz, suited to communication and signal control applications.

Q: What length does this cable come in?

A: This RG59 cable is supplied in a 500m pack length, suiting larger signal control and communication system installations.


Smaller jobs can use the same RG59 coaxial cable in a 100m or 300m length instead.

Connections along the run can be finished using a coaxial cable stripping tool for clean, precise prep.

Termination on site is handled with a coax crimping tool sized for this connector range.

Licensed electricians can unlock trade access pricing — log in or register to get started.
