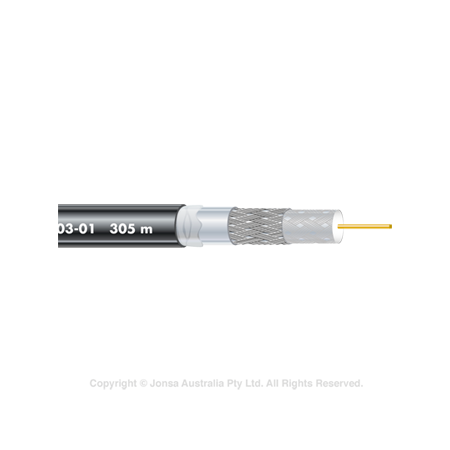

RG6 Coaxial Cable Tri Flooded | 305M Length | Copper Clad Steel | Jonsa

BRAND: Jonsa
SKU: CRG6UBTF
$0.70 List price: $0.80
+ −
30 Days Return Delivery Options
RG6 coaxial cable with copper clad steel conductor and foamed HD polyethylene dielectric—ideal for home entertainment and commercial installations. Built for enhanced signal quality and reduced interference, with durable materials for long-lasting performance.

Product Name/Title: CABLE, COAXIAL RG6 TRI FLOODED 305M

Brand: Jonsa

SKU: CRG6UBTF

Alternatively Known As: RG6 Coaxial Cable, Tri Flooded Coaxial Cable, Jonsa RG6 Cable

Technical Specifications
  • Centre Conductor Material: Copper Clad Steel Wire
  • Centre Conductor Diameter: 1.02 ± 1% mm (AWG18)
  • Dielectric Material: Foamed HD Polyethylene
  • Dielectric Diameter: 4.57 mm
  • Laminated Shielding Tape Material: Laminated Aluminium Foil
  • Laminated Shielding Tape Thickness: 60 Microns
  • Core Diameter: 4.78 ± 0.13 mm
  • Inner Braid Material: Aluminium Alloy Wires
  • Minimum Braiding Coverage: 60%
  • Sheath Material: PE
  • Sheath Thickness: 0.76 mm
  • Attenuation @ 20 °C: 5 MHz - 1.9 dB/100m, 55 MHz - 5.25 dB/100m, 211 MHz - 10 dB/100m, 250 MHz - 10.82 dB/100m, 270 MHz - 11.04 dB/100m, 300 MHz - 11.64 dB/100m, 330 MHz - 12.26 dB/100m, 350 MHz - 12.63 dB/100m, 400 MHz - 13.61 dB/100m, 450 MHz - 14.43 dB/100m, 500 MHz - 15.29 dB/100m, 550 MHz - 16.08 dB/100m, 600 MHz - 16.73 dB/100m, 750 MHz - 18.54 dB/100m, 870 MHz - 20.04 dB/100m, 1000 MHz - 21.49 dB/100m, 1450 MHz - 26.25 dB/100m, 1750 MHz - 28.67 dB/100m, 2050 MHz - 31.04 dB/100m
  • Dimensions (H x L x W): n/a mm x 305000mm x n/a mm
  • Weight: 1.5 kg
Key Features
  • Copper Clad Steel Wire Centre Conductor for enhanced signal quality.
  • Foamed HD Polyethylene Dielectric for improved insulation.
  • Laminated Aluminium Foil Shielding for reduced interference.
  • Overall Diameter of 7.06 ± 0.2 mm for compatibility with standard fittings.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
  • Residential: Home entertainment systems, satellite TV installations
  • Commercial: Office buildings, retail spaces requiring cable installations
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Jonsa Coaxial RG6 Tri Flooded Cable 305M is available now for immediate purchase. Ideal for residential and commercial cable installations.
