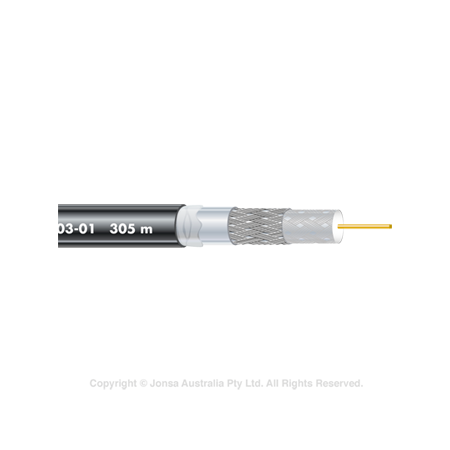

RG6 Tri-Shield Coax Cable 305m Flooded Jonsa
Jonsa RG6 tri-shield flooded coaxial cable, 305m, copper-clad steel 1.02mm. Ideal for underground and outdoor TV CCTV runs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Centre Conductor Material: Copper Clad Steel Wire
- Centre Conductor Diameter: 1.02 ± 1% mm (AWG18)
- Dielectric Material: Foamed HD Polyethylene
- Dielectric Diameter: 4.57 mm
- Laminated Shielding Tape Material: Laminated Aluminium Foil
- Laminated Shielding Tape Thickness: 60 Microns
- Core Diameter: 4.78 ± 0.13 mm
- Inner Braid Material: Aluminium Alloy Wires
- Minimum Braiding Coverage: 60%
- Sheath Material: PE
- Sheath Thickness: 0.76 mm
- Attenuation @ 20 °C: 5 MHz - 1.9 dB/100m, 55 MHz - 5.25 dB/100m, 211 MHz - 10 dB/100m, 250 MHz - 10.82 dB/100m, 270 MHz - 11.04 dB/100m, 300 MHz - 11.64 dB/100m, 330 MHz - 12.26 dB/100m, 350 MHz - 12.63 dB/100m, 400 MHz - 13.61 dB/100m, 450 MHz - 14.43 dB/100m, 500 MHz - 15.29 dB/100m, 550 MHz - 16.08 dB/100m, 600 MHz - 16.73 dB/100m, 750 MHz - 18.54 dB/100m, 870 MHz - 20.04 dB/100m, 1000 MHz - 21.49 dB/100m, 1450 MHz - 26.25 dB/100m, 1750 MHz - 28.67 dB/100m, 2050 MHz - 31.04 dB/100m
- Dimensions (H x L x W): 17 mm x 305000 mm x 17 mm
- Weight: 1.5 kg
Key Features
- Copper Clad Steel Wire Centre Conductor for enhanced signal quality.
- Foamed HD Polyethylene Dielectric for improved insulation.
- Laminated Aluminium Foil Shielding for reduced interference.
- Overall Diameter of 7.06 ± 0.2 mm for compatibility with standard fittings.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Residential: Home entertainment systems, satellite TV installations
- Commercial: Office buildings, retail spaces requiring cable installations
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa Coaxial RG6 Tri Flooded Cable 305M is available now for immediate purchase. Ideal for residential and commercial cable installations.
FAQ
Q: What is this flooded cable designed for?
A: This Jonsa RG6 tri-shield flooded cable is suited to residential home entertainment and satellite TV installations, as well as commercial cable installations in offices and retail spaces.
Q: What shielding does this cable use?
A: It uses laminated aluminium foil shielding combined with an aluminium alloy wire braid, giving a minimum of 60% braiding coverage for reduced interference.
Terminate each run with an RG6 F-type compression connector for a secure, weatherproof fit.
A coaxial cable stripping tool helps prepare the jacket cleanly before connector assembly.
For a quad-shielded alternative, the RG6 quad shield flooded coaxial cable adds an extra layer of protection for underground runs.
