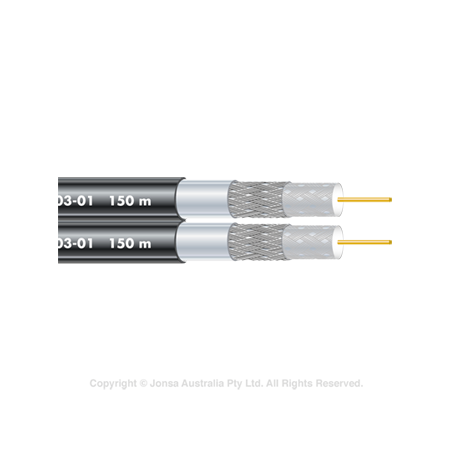

RG6 Tri Siamese Coaxial Cable 150M | Copper Clad Steel | Foamed HD Polyethylene | PVC/PE Sheath by Jonsa
RG6 tri siamese coaxial cable with copper clad steel conductor and foamed HD polyethylene dielectric—ideal for home entertainment and satellite TV installations. Built for reliable signal transmission, with durable PVC/PE sheath for protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CABLE, COAXIAL RG6 TRI SIAMESE 150M
Brand: Jonsa
SKU: CRG6UBTS
Alternatively Known As: RG6 Coaxial Cable, Tri Siamese Cable, Coaxial Cable 150M
Technical Specifications
- Centre Conductor Material: Copper Clad Steel Wire
- Centre Conductor Diameter: 1.02 ± 1% mm (AWG18)
- Dielectric Material: Foamed HD Polyethylene
- Dielectric Diameter: 4.57 mm
- Laminated Shielding Tape Material: Laminated Aluminium Foil
- Laminated Shielding Tape Thickness: 60 Microns
- Core Diameter: 4.78 ± 0.13 mm
- Inner Braid Material: Aluminium Alloy Wires
- Minimum Braiding Coverage: 60%
- Sheath Material: PVC/(PE)
- Sheath Thickness: 0.76 mm
- Overall Diameter: 7.06 ± 0.2 mm
- Attenuation @ 20 °C: 5 MHz - 1.9 dB/100m, 55 MHz - 5.25 dB/100m, 211 MHz - 10 dB/100m, 250 MHz - 10.82 dB/100m, 270 MHz - 11.04 dB/100m, 300 MHz - 11.64 dB/100m, 330 MHz - 12.26 dB/100m, 350 MHz - 12.63 dB/100m, 400 MHz - 13.61 dB/100m, 450 MHz - 14.43 dB/100m, 500 MHz - 15.29 dB/100m, 550 MHz - 16.08 dB/100m, 600 MHz - 16.73 dB/100m, 750 MHz - 18.54 dB/100m, 870 MHz - 20.04 dB/100m, 1000 MHz - 21.49 dB/100m, 1450 MHz - 26.25 dB/100m, 1750 MHz - 28.67 dB/100m, 2050 MHz - 31.04 dB/100m
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 1.5 kg
Key Features
- Copper Clad Steel Wire Centre Conductor for enhanced signal quality.
- Foamed HD Polyethylene Dielectric for improved insulation.
- Laminated Aluminium Foil Shielding for reduced interference.
- PVC/PE Sheath for durability and protection.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Residential: Home entertainment systems, satellite TV installations
- Commercial: Office buildings, retail spaces requiring cable installations
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long-lasting materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa Coaxial RG6 Tri Siamese Cable 150M is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable signal transmission.
