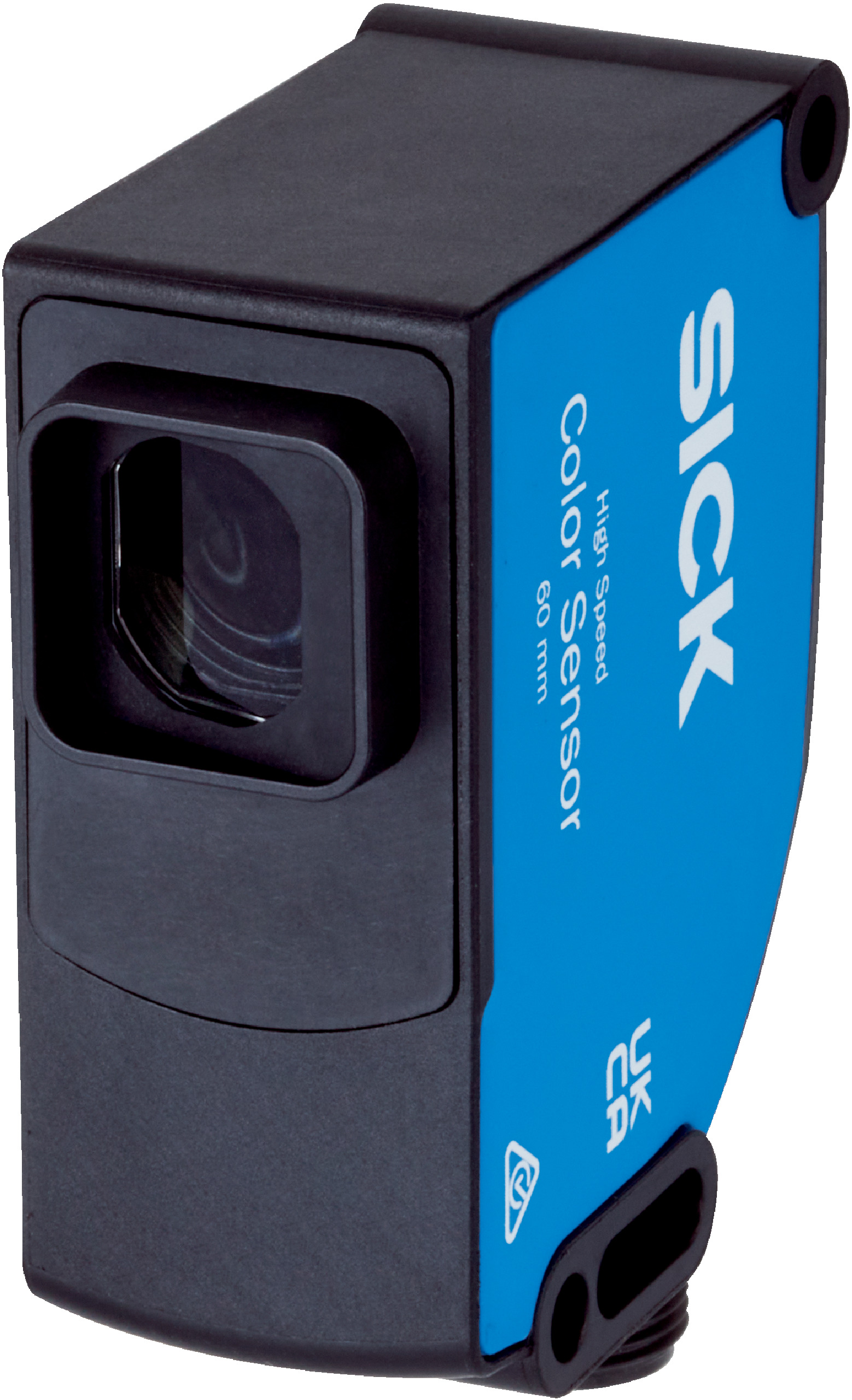

RGB Color Sensor | 60 mm Sensing Distance | IP67 Rated | 4 Colors Output | by SICK
The RGB Color Sensor is designed for precise color detection and object sensing in industrial automation. With a sensing distance of 60 mm and an IP67 rating for dust and water resistance, this sensor is perfect for quality control, material sorting, and robotics applications. Featuring a versatile RGB LED light source and continuous sensitivity adjustment, it ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 60 mm ± 9 mm
- Light source: LED RGB (460 nm, 530 nm, 625 nm)
- Light emission: Long side of housing, round large light spot Ø 12 mm
- Output mode: 4 colors standard, 15 colors coded
- Sensitivity adjustment: Continuous 0 to 999
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Current consumption: < 120 mA
- Supply voltage: 10.8 V DC to 28.8 V DC
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -20°C to +60°C
- Connection: Male M12, 8-pin connector
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- S-housing design with long side light emission
- 4 hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Supports single and multi-value teach-in modes
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -20°C to +60°C
- Male M12 8-pin connector for easy integration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Material sorting and identification
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
- Supports precise detection reducing waste in manufacturing processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

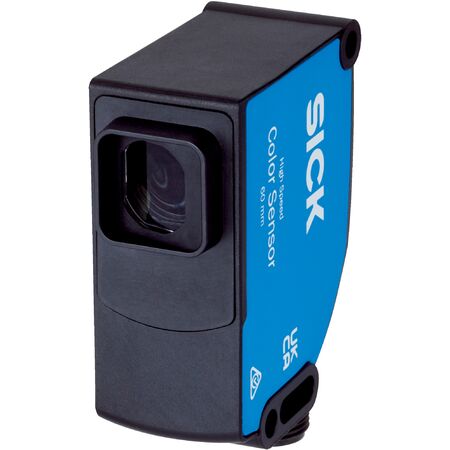

The SICK CSS-WBFA54118AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
