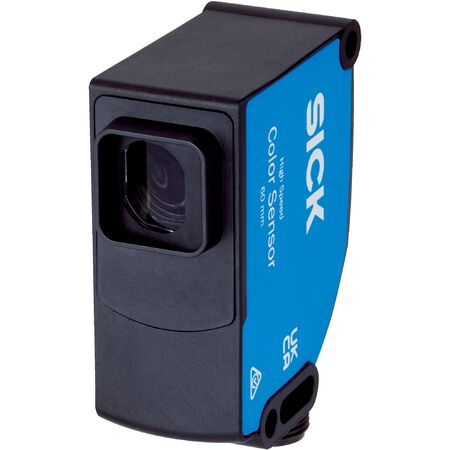

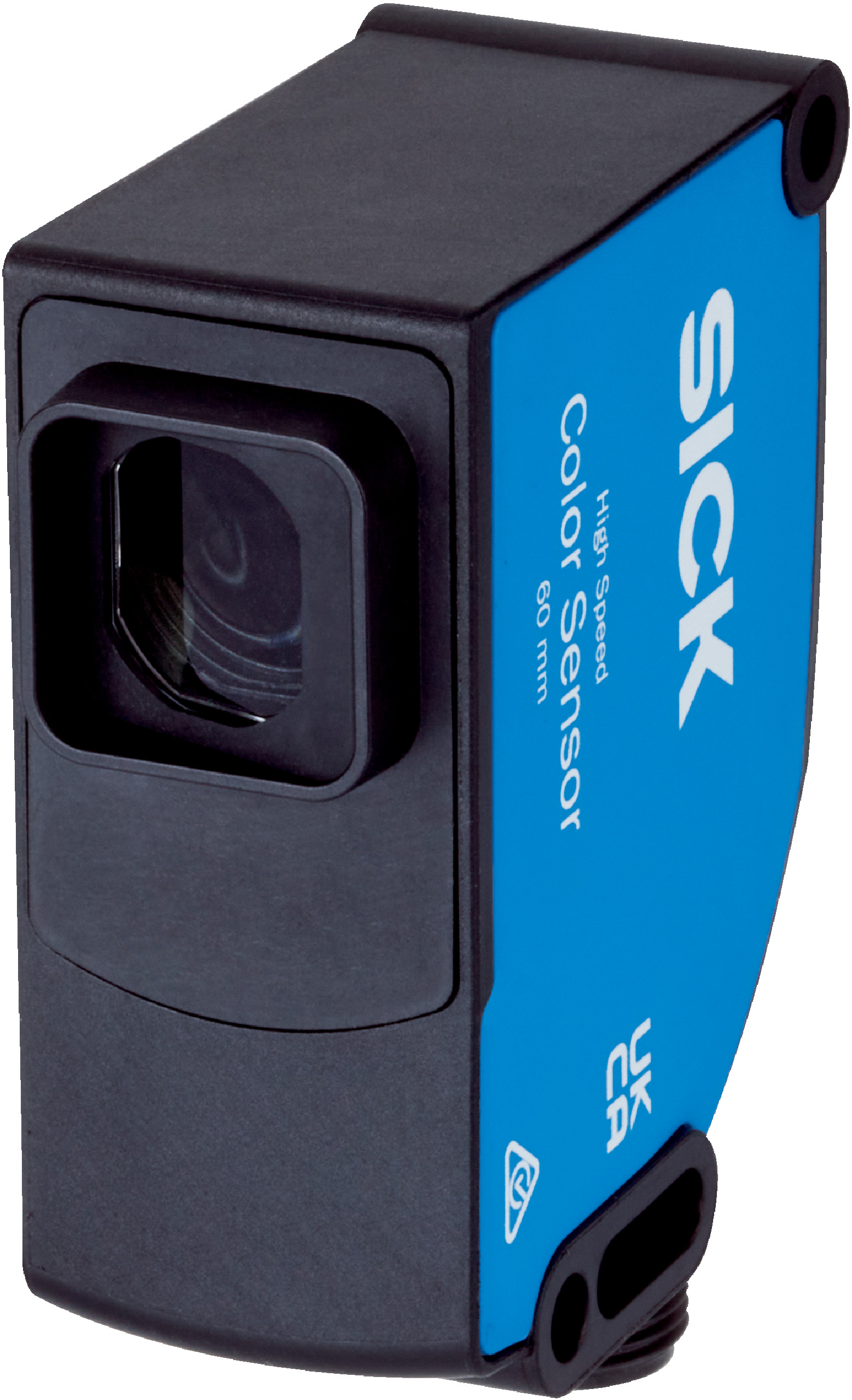

RGB Color Sensor | 60 mm Sensing Distance | IP67 Rated | 4 Outputs | by SICK
The RGB Color Sensor is designed for industrial automation, featuring a 60 mm sensing distance with ±9 mm tolerance and an RGB LED light source. Ideal for quality control and robotics, it offers 4 hardware switching outputs and continuous sensitivity adjustment from 0 to 999, ensuring precise color detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 60 mm ± 9 mm
- Light source: LED, RGB with wavelengths 460 nm, 530 nm, 625 nm
- Light emission: Long side of housing with Ø 12 mm round light spot
- Output modes: 4 colors in standard/best fit mode, 15 colors in coded mode
- Sensitivity adjustment: Continuous from 0 to 999
- Available job banks: 4
- Outputs: 4 hardware switching outputs, 24 virtual switching outputs via RS-485
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Protection class: III
- Housing material: VISTAL®
- Optics material: Glass
- Connection: Male M12, 8-pin connector
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- MTTFD: 263.7 years
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- RGB LED light source with wavelengths 460 nm, 530 nm, 625 nm
- 4 hardware switching outputs and 24 virtual switching outputs via RS-485
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- IP67 rated housing for robust protection
- Operating temperature range from -20 °C to +60 °C
- Push-pull PNP/NPN switching outputs
- Circuit protection including reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CSS-WBFA54118RZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
