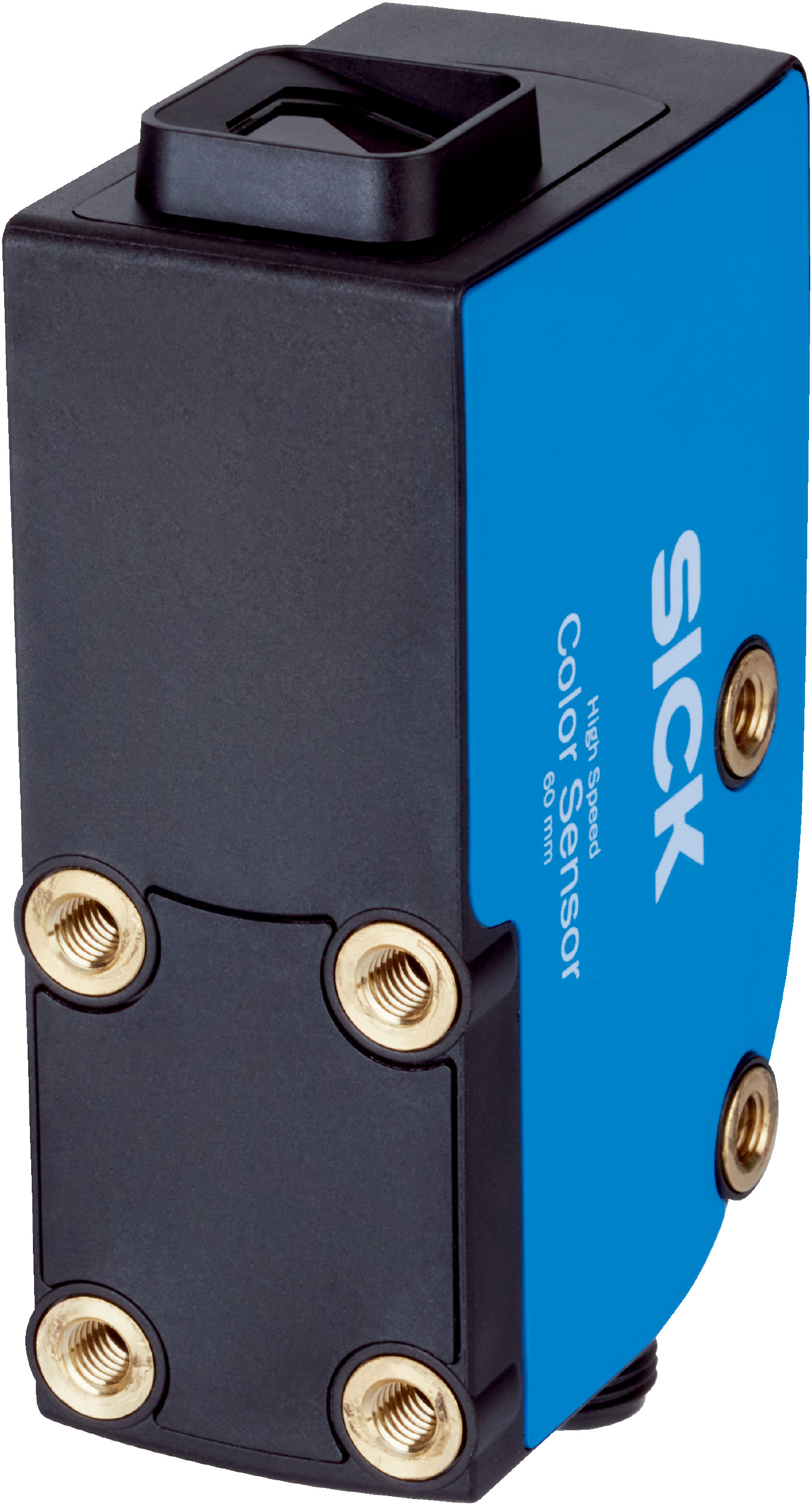

RGB Color Sensor | 60mm Sensing Distance | IP67 Rated | by SICK
The RGB Color Sensor is designed for industrial automation, offering a 60mm sensing distance with ±9mm tolerance and an IP67 rated enclosure for dust and water resistance. Ideal for quality control and robotics applications, this sensor features a unique X-housing design with LED RGB light source and multiple color outputs, ensuring precise color detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output type: NPN switching output with max 100 mA output current
- Light wavelength: 460 nm, 530 nm, 625 nm
- Light spot size: 12 mm diameter
- Connection: Male M12, 8-pin connector
- Protection: Reverse polarity, short-circuit, and interference pulse suppression
- Operating temperature: -20°C to +60°C
- Storage temperature: -25°C to +75°C
- Shock resistance: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- X-housing design with LED RGB light source
- 4 hardware switching outputs with 4 colors in standard mode and 15 colors in coded mode
- Continuous sensitivity adjustment from 0 to 999
- Teach-in mode supports single and multi-value teach-in
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +60°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

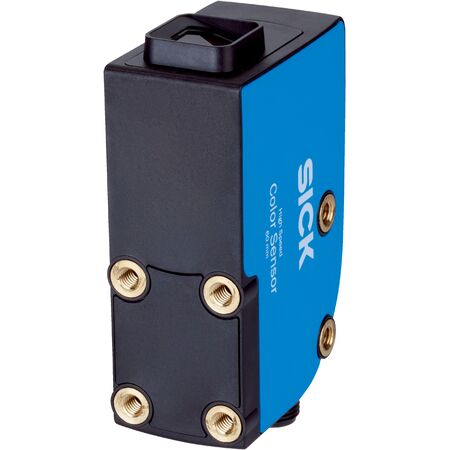

The SICK CSX-WNFA542282ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
