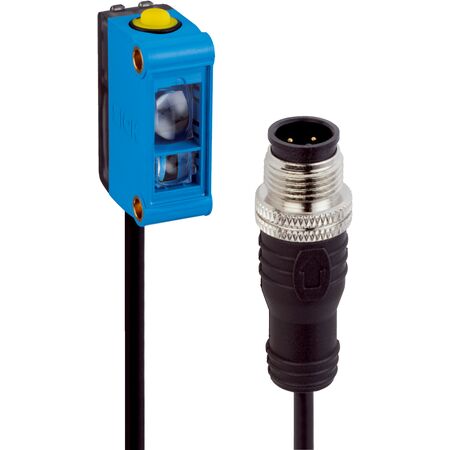

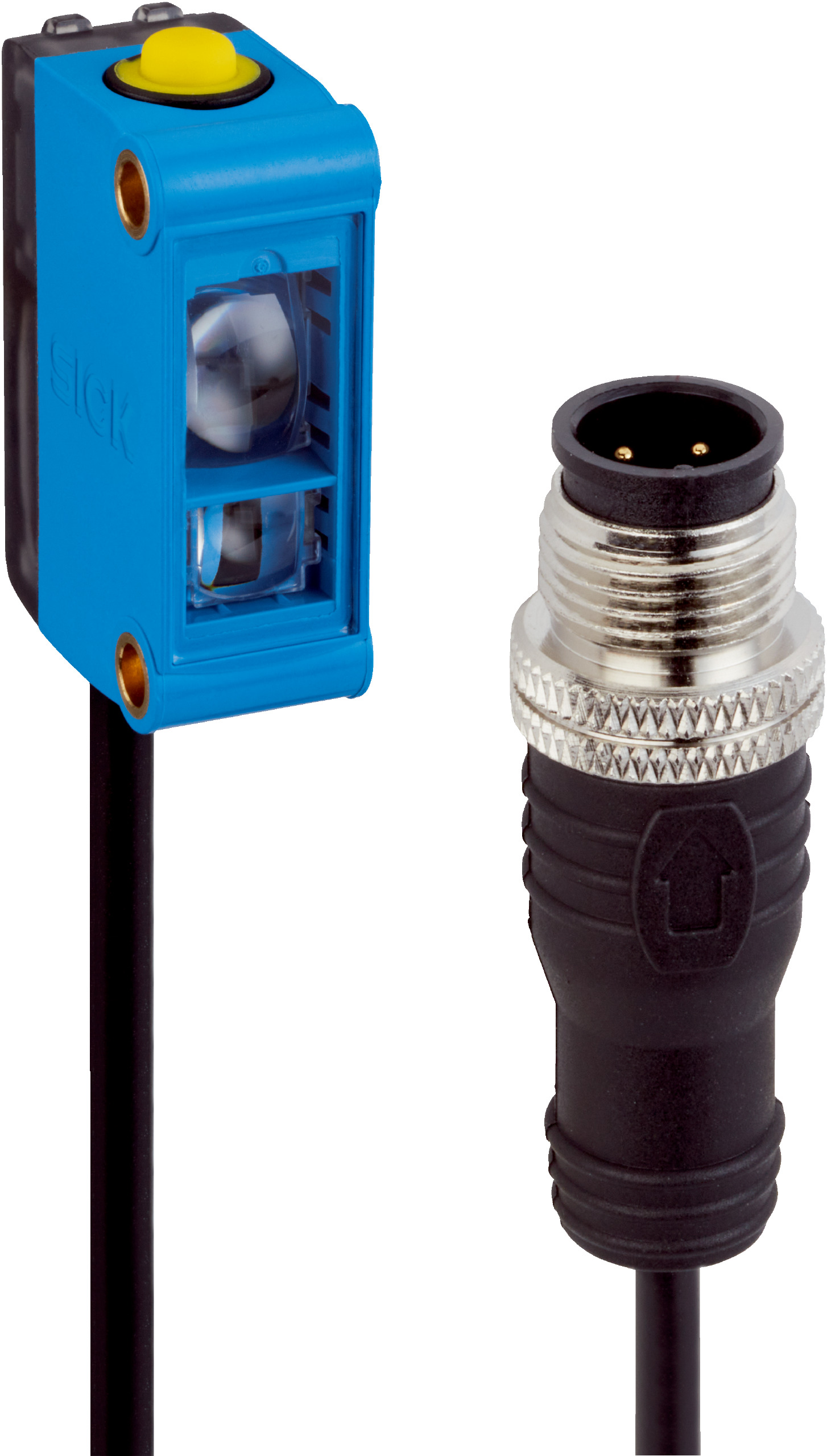

RGB Color Sensor | IO-Link Enabled | IP67 Rated | 12V to 24V Supply | by SICK
The RGB Color Sensor is designed for industrial automation, featuring an IO-Link interface for precise color sensing and object detection. With an IP67 rating for dust and water resistance, it operates within a supply voltage range of 12V to 24V and offers a fast response time of 300 µs. Ideal for quality control in manufacturing lines, this sensor ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: less than 50 mA
- Switching output: PNP with max output current < 100 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Jitter: 150 µs
- Light source: RGB LED with wavelengths 640 nm, 525 nm, 470 nm
- Light spot size: 1.9 mm x 9.4 mm
- Connection type: Cable with M12 male connector, 4-pin, 0.2 m length
- Cable diameter: 3.4 mm
- Housing material: ABS
- Optics material: PMMA
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 640 nm, 525 nm, 470 nm
- Vertical light spot direction with spot size 1.9 mm x 9.4 mm
- Adjustable via teach-in button, cable, or IO-Link
- IO-Link V1.1.0 interface with 38.4 kbit/s data transmission rate
- Switching frequency of 1.7 kHz and response time of 300 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and color sensing
- Process control systems requiring precise color measurement
- Quality control in manufacturing lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CSM-WP117A2P RGB LED Sensor with IO-Link is available for immediate purchase, ideal for industrial automation and color sensing applications.
