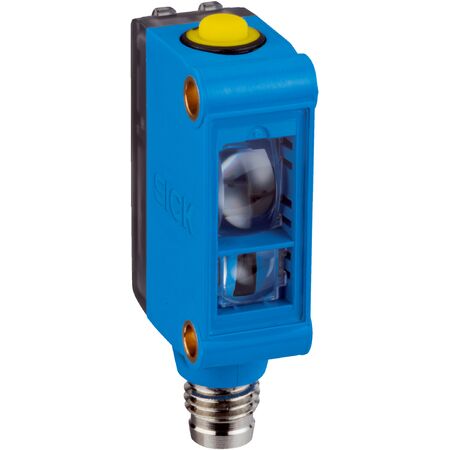

RGB Color Sensor | IO-Link Interface | IP67 Rated | 15mm Sensing Distance | by SICK
The RGB Color Sensor with IO-Link interface is designed for precise color detection in industrial automation. With a sensing distance of up to 15mm and an IP67 rating for dust and water resistance, this sensor is perfect for factory automation and quality control systems. Its small housing and low power consumption make it an efficient choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Jitter: 150 µs
- Switching output: PNP, HIGH ≤ 2 V, LOW approx. 0 V
- Output current max: < 100 mA
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Male connector M8, 4-pin
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 15 mm with ±4 mm tolerance
- RGB LED light source with wavelengths 640 nm, 525 nm, 470 nm
- Vertical light spot direction with spot size 4.9 mm x 10.1 mm
- Adjustable via teach-in button, cable, and IO-Link
- IO-Link V1.1.0 interface with 38.4 kbit/s data transmission rate
- Two digital PNP outputs with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper connection and configuration of IO-Link communication.
Applications
- Industrial automation for object detection and color sensing
- Factory automation and process control
- Quality control systems requiring precise color detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CSM-WP1B7A1P RGB LED Sensor with IO-Link is available for immediate purchase, ideal for industrial automation and color detection applications.
