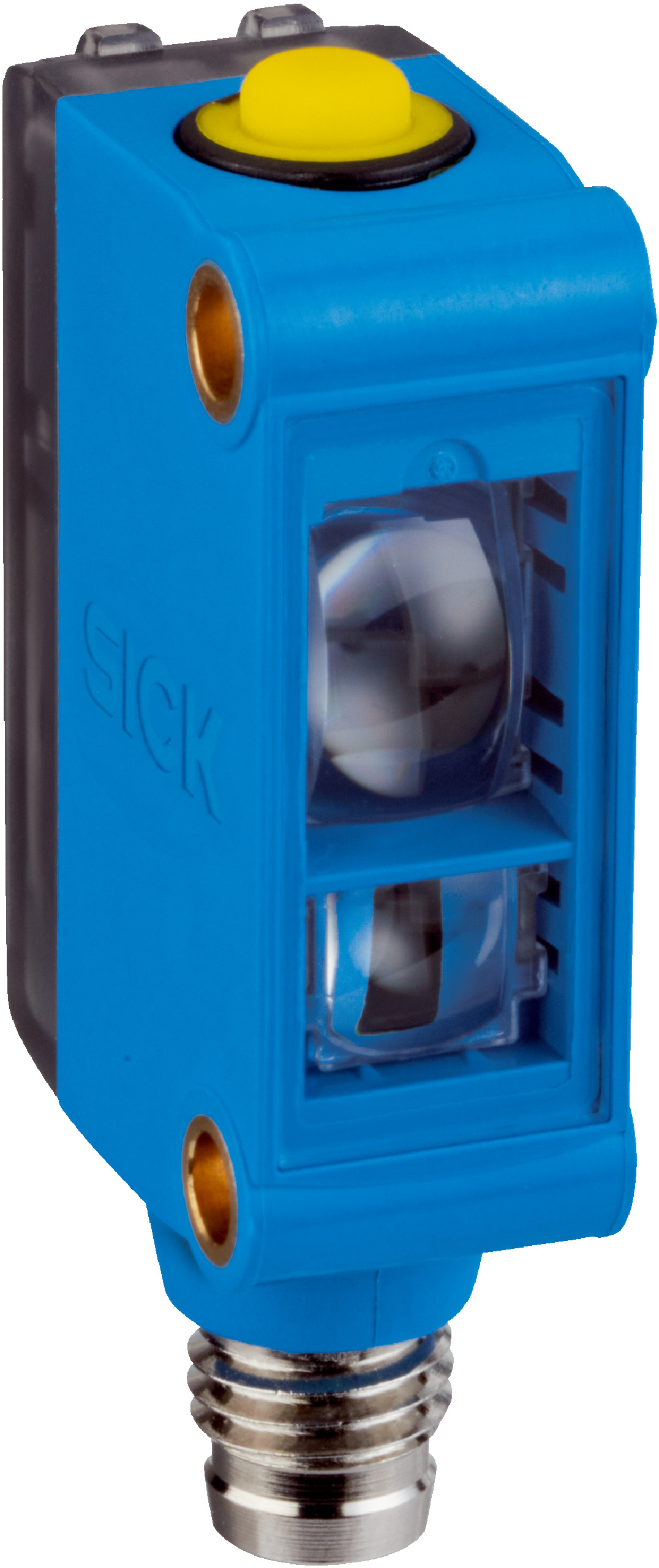

RGB Color Sensor | IO-Link Communication | IP67 Rated | by SICK
The RGB Color Sensor with IO-Link communication is designed for precise color sensing in industrial automation. With a compact design and an IP67 rating, it ensures reliable performance in harsh environments. Ideal for quality control and process control systems, this sensor features a sensing distance of up to 12.5 mm and energy-efficient LED light sources, making it a perfect choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Jitter: 150 µs
- Output current max: < 100 mA
- Light spot size: 1.9 mm x 9.4 mm
- Light spot direction: Vertical
- Connection type: Male connector M8, 4-pin
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Shock load: According to IEC 60068
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 640 nm, 525 nm, 470 nm
- Teach-in button, cable, and IO-Link adjustment modes
- IO-Link V1.1.0 communication with 38.4 kbit/s data rate and 2.3 ms cycle time
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of IO-Link communication.
Applications
- Industrial automation for object detection and color sensing
- Process control systems requiring precise color measurement
- Quality control in manufacturing lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

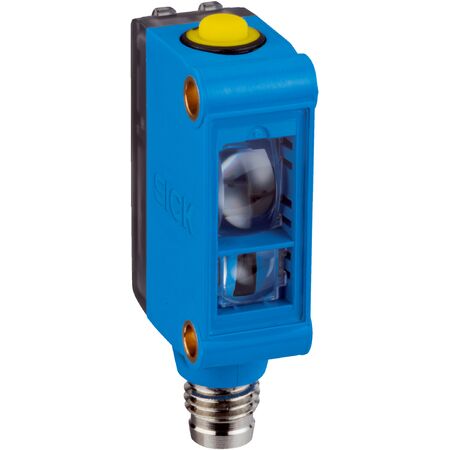

The SICK CSM-WP117A1P RGB LED Sensor with IO-Link is available for immediate purchase, ideal for industrial automation and color sensing applications.
