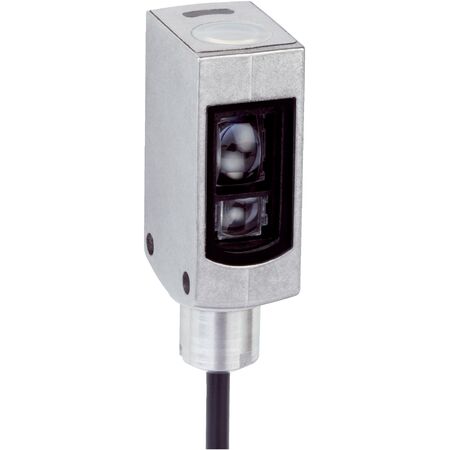

RGB Color Sensor | IO-Link Communication | IP69K Rated | by SICK
The RGB Color Sensor with IO-Link communication is designed for precise color sensing in industrial automation. With a sensing distance of up to 11 mm and a fast response time of 35 µs, it’s perfect for quality control and process control systems. Its compact stainless steel housing and IP69K rating ensure durability in harsh environments, making it an ideal choice for reliable object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 11 mm with ±3 mm tolerance
- Light source: RGB LED (470 nm, 525 nm, 625 nm)
- Light emission: Long side of housing
- Light spot size: 1.6 mm x 9.5 mm
- Adjustment methods: Cable, IO-Link, Teach-in button
- IO-Link V1.1 with 38.4 kbit/s data transmission rate
- Switching frequency: 15 kHz
- Response time: 35 µs
- Switching output: PNP, max 50 mA
- Supply voltage: 12 V DC to 24 V DC
- Protection class: III
- Enclosure rating: IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Small stainless steel housing for compact installation
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 11 mm with ±3 mm tolerance
- IO-Link V1.1 communication with 38.4 kbit/s data rate
- Two digital PNP switching outputs
- Light/dark switching mode with fast response time of 35 µs
- IP69K rated enclosure for harsh environments
- Cable with M12 male connector, 4-pin, 0.2 m length
Professional Installation Requirements
- Installation by a qualified electrician or automation technician is recommended to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection and color sensing
- Process control systems requiring precise color measurement
- Quality control in manufacturing lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK KTM-WP1A7A2V RGB LED Sensor with IO-Link is available for immediate purchase, ideal for industrial automation and color sensing applications.
