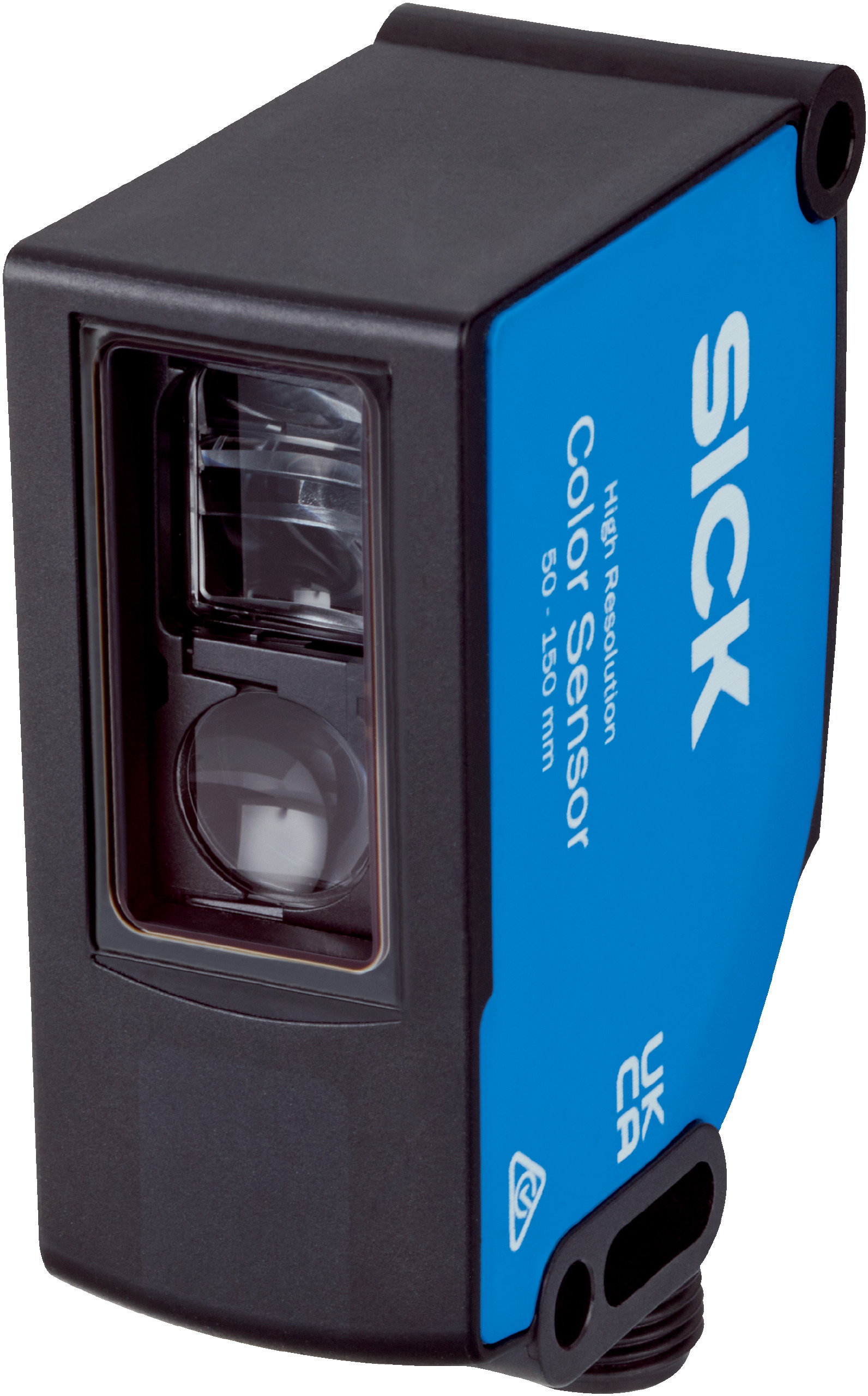

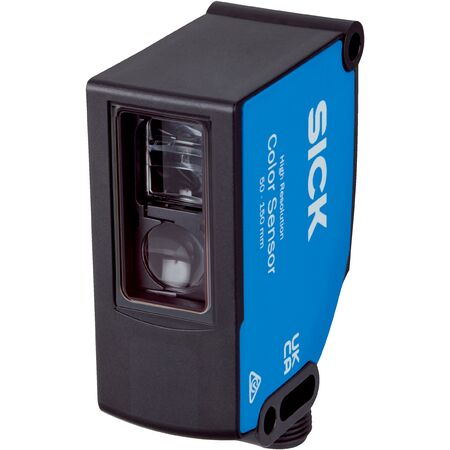

RGB Color Sensor | SICK CSS-WBG4C4118RZZZZ | IP67 Rated | 4 kHz Switching Frequency | by SICK
The RGB Color Sensor is designed for industrial automation, offering a sensing distance of 50 mm to 150 mm and a 4 kHz switching frequency. With an IP67 rating for dust and water resistance, this sensor is perfect for quality control in manufacturing processes and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 150 mA
- Switching frequency: 4 kHz
- Response time: 120 µs
- Jitter: 60 µs
- Output current max: 100 mA
- Light spot size: diameter 3.5 mm to 6.5 mm
- Light emission from long side of housing
- Connection type: Male M12, 8-pin connector
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance from 50 mm to 150 mm
- RGB LED light source with wavelengths 450 nm, 550 nm, 610 nm
- 4 hardware switching outputs and 24 virtual switching outputs via RS-485
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -20°C to +55°C
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Non-toxic materials compliant with China-RoHS standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CSS-WBG4C4118RZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
