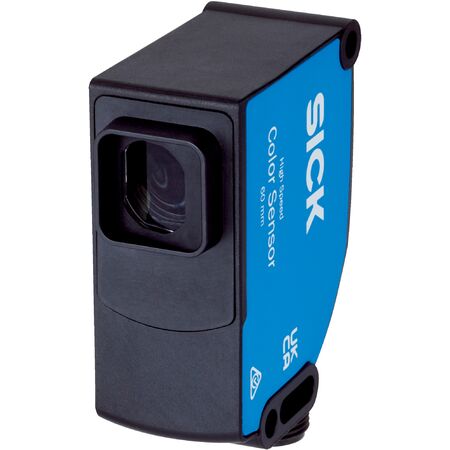

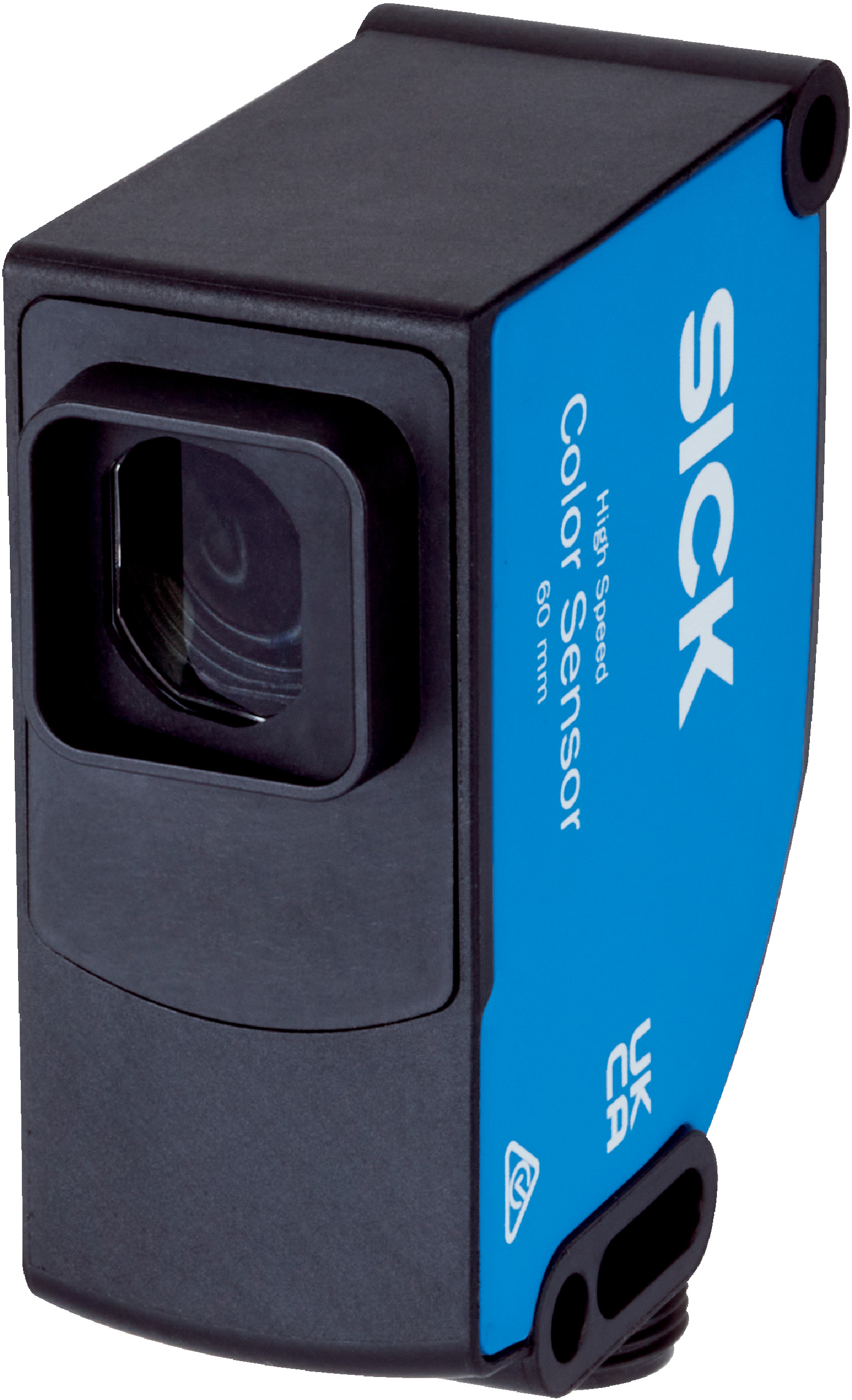

RGB Color Sensor | IP67 Rated | 60mm Sensing Distance | 13.8kHz Switching Frequency | by SICK
The RGB Color Sensor is designed for industrial automation, offering a 60mm sensing distance with ±9mm tolerance and an IP67 rated enclosure for dust and water protection. With a fast response time of 36 µs and a switching frequency of 13.8 kHz, it's perfect for quality control in manufacturing processes and robotics applications, ensuring reliable color detection and object sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: VISTAL®
- Optics material: Glass
- Connection type: Plug, M12, 5-pin
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- Long side light emission with a round, large light spot of 12 mm diameter
- Continuous sensitivity adjustment from 0 to 999
- Two hardware switching outputs and 24 virtual switching outputs via IO-Link
- Push-pull PNP/NPN switching output with max output current of 100 mA
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +60 °C
- Plug M12, 5-pin connection type
- Safety-related parameters with MTTFD of 263.7 years
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CSS-WBFA54115AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
