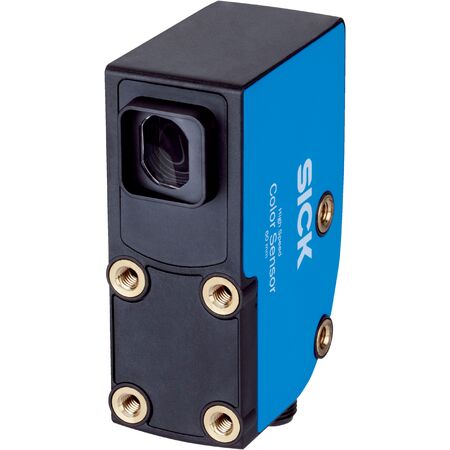

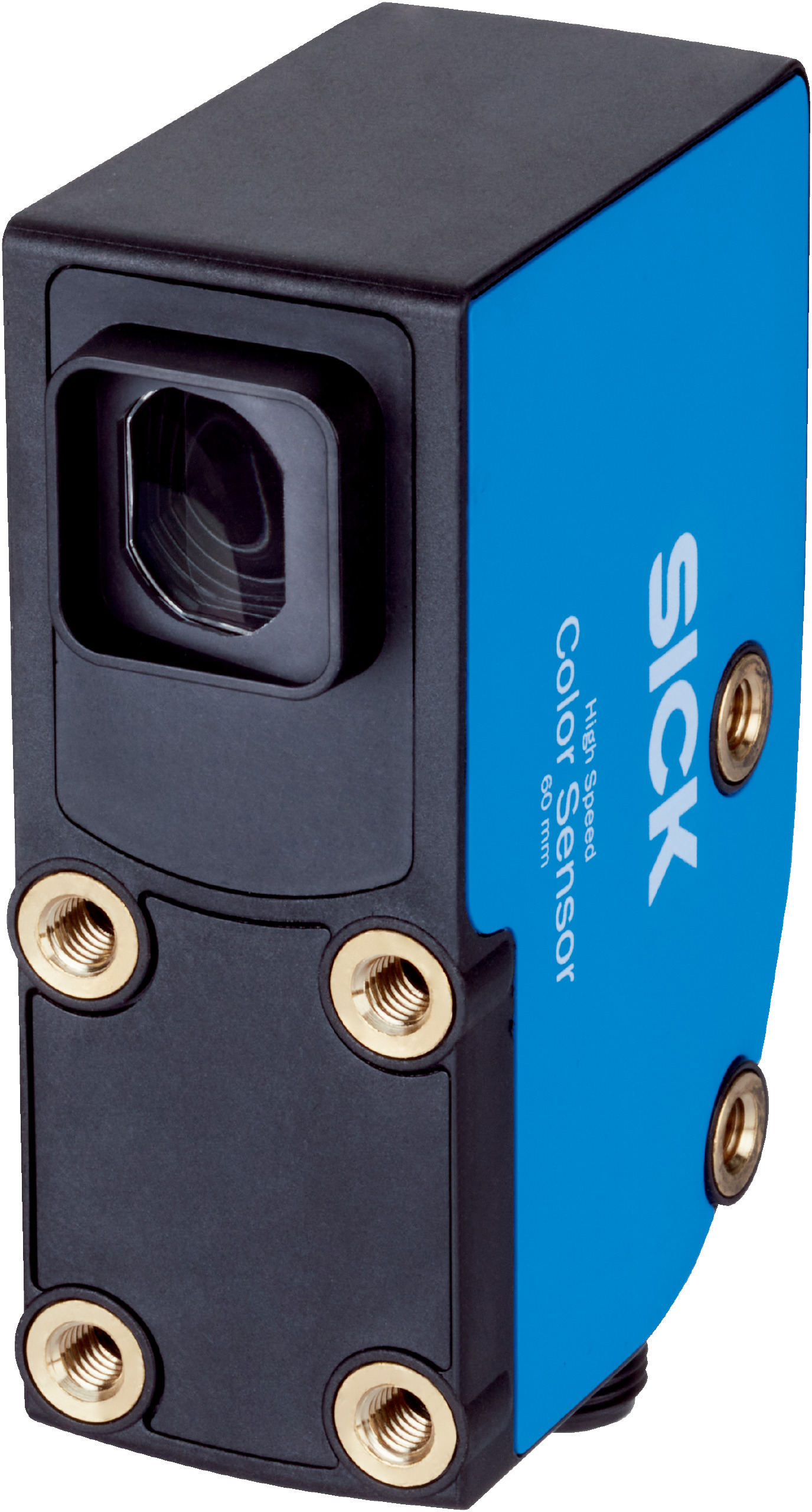

RGB Color Sensor | IP67 Rated | 60mm Sensing Distance | 13.8kHz Switching Frequency | by SICK
The RGB Color Sensor is designed for industrial automation, offering a 60mm sensing distance with ±9mm tolerance and an IP67 rated enclosure for dust and water protection. Ideal for quality control and robotics applications, this sensor features a fast response time of 36µs and continuous sensitivity adjustment, ensuring precise color detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Light emission from long side of housing
- Light spot size: 12 mm diameter
- Housing material: VISTAL®
- Optics material: Glass
- Connection: Male M12, 8-pin connector
- Safety rating: LED risk group 1
- MTTFD: 263.7 years
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- 4 hardware switching outputs with NPN switching output
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +60 °C
- Protection class III with reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Non-toxic materials compliant with China-RoHS standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CSX-WNFA541282ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color sensing applications.
