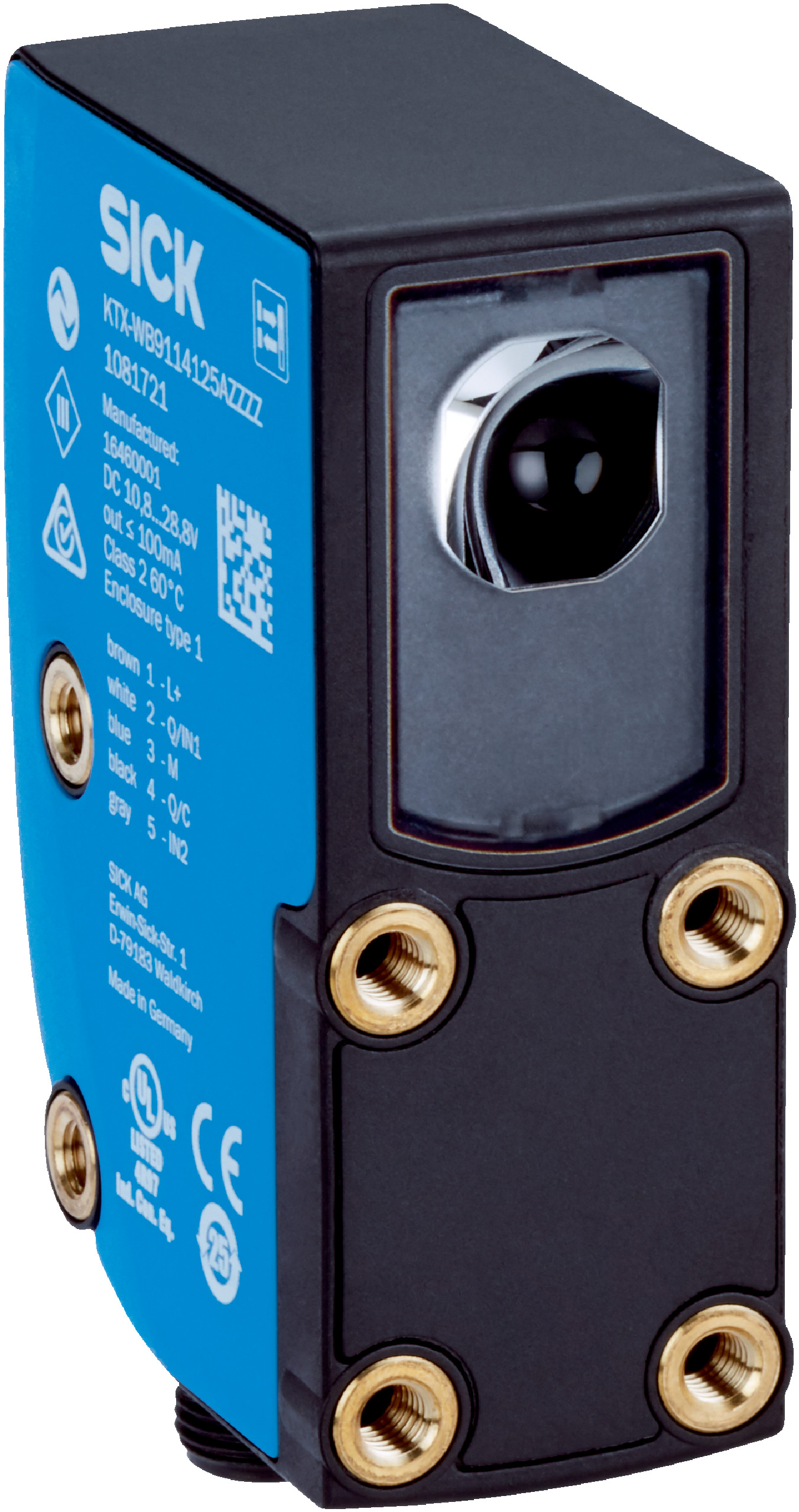

RGB Color Sensor KTX-WP9214125UZZZZ | IP67 Rated | Analog & Digital Output | High Switching Frequency | by SICK
The RGB Color Sensor KTX-WP9214125UZZZZ is designed for precise color detection and object sensing in industrial automation. With an IP67 rated enclosure, it ensures durability in harsh environments. This sensor features both analog voltage and digital PNP outputs, making it ideal for quality control, material sorting, and packaging verification applications. Its low power consumption and fast response time enhance efficiency in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 13 mm with ± 5 mm tolerance
- Light spot size: 3.8 mm x 0.9 mm
- Output current max: 100 mA
- Switching output voltage: PNP HIGH = VS - 3 V, LOW = 0 V
- Retention time for teach-in input: 25 ms with non-volatile memory
- Connection type: Plug, M12, 5-pin
- Housing material: VISTAL®
- Optics material: COP
- Shock load resistance: 30 g / 11 ms according to IEC 60068-2-27
- UL File No.: E181493
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Transmission color selection via cable
- Standard device type with large housing design
- LED light source with RGB wavelengths (470 nm, 525 nm, 625 nm)
- Light emission from the long side of housing with horizontal light spot direction
- 2-point teach-in mode with full access to all settings
- Adjustable delay time and light/dark switching output function
- Analog voltage output (0 V to 5 V) and digital PNP switching output
- Supply voltage range from 10.8 V DC to 28.8 V DC with low current consumption (< 100 mA)
- High switching frequency of 50 kHz and fast response time of 10 µs
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and device configuration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Material sorting and identification
- Packaging and labeling verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WP9214125UZZZZ RGB LED Sensor is available for immediate purchase. Ideal for industrial automation and color detection applications.
