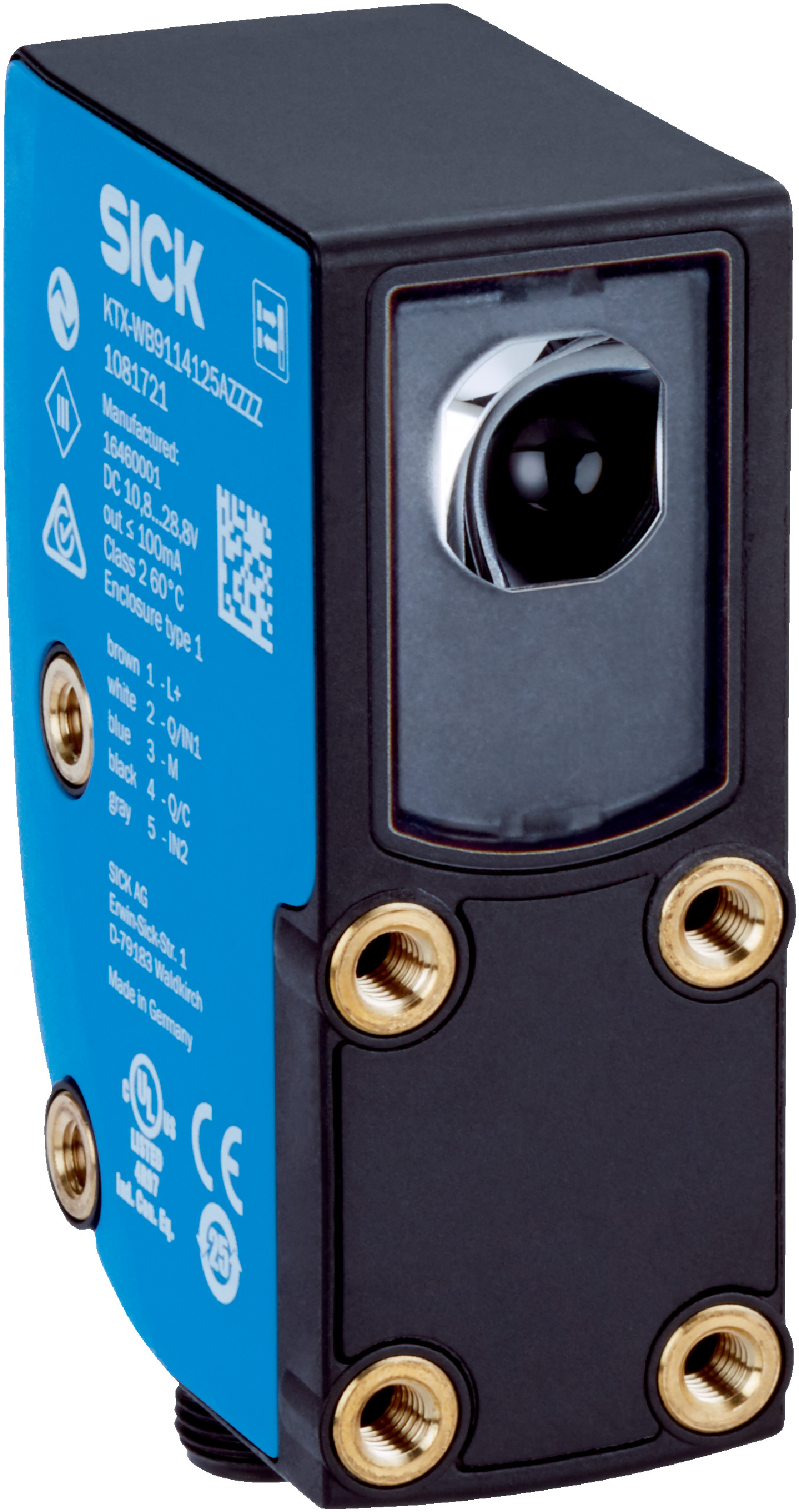

RGB Color Sensor | LED RGB Light Source | IP67 Rated | by SICK
The RGB Color Sensor is designed for precise color detection in industrial automation, featuring an LED RGB light source with wavelengths of 470 nm, 525 nm, and 625 nm. With a sensing distance of up to 13 mm and an IP67 enclosure, it’s perfect for quality control, material sorting, and packaging verification in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 13 mm with ± 5 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 0.9 mm x 3.8 mm, vertical direction
- Output functions: Light/dark switching, analog voltage output 0-5 V, digital PNP output
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Protection class: III
- Connection: M12, 5-pin plug
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Transmission color selection via cable
- Standard device type with large housing design
- LED light source with RGB wavelengths (470 nm, 525 nm, 625 nm)
- Light emission from the long side of housing
- Light spot size of 0.9 mm x 3.8 mm with vertical direction
- 2-point teach-in mode with full access to all settings
- Adjustable delay time and standard key lock setting
- Safety-related parameters with MTTFD of 291 years
- Analog output voltage from 0 V to 5 V and digital PNP output
- Supply voltage range from 10.8 V DC to 28.8 V DC
- Switching frequency of 50 kHz and response time of 10 µs
- Protection class III with reverse polarity and short-circuit protection
- Housing made of VISTAL® and optics made of COP
- Plug connection type M12, 5-pin
- IP67 rated enclosure for dust and water protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Material sorting and identification
- Packaging and labeling verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption under 100 mA
- Non-volatile memory reduces electronic waste by retaining settings without power
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WP9114125UZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
