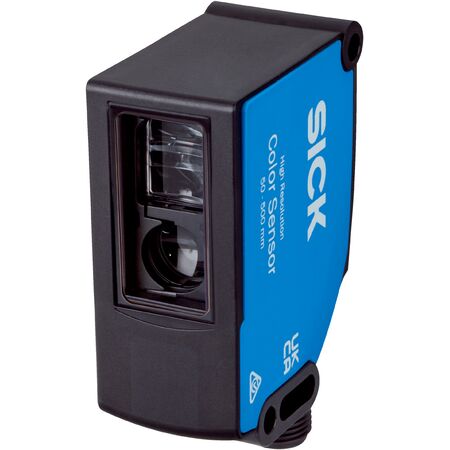

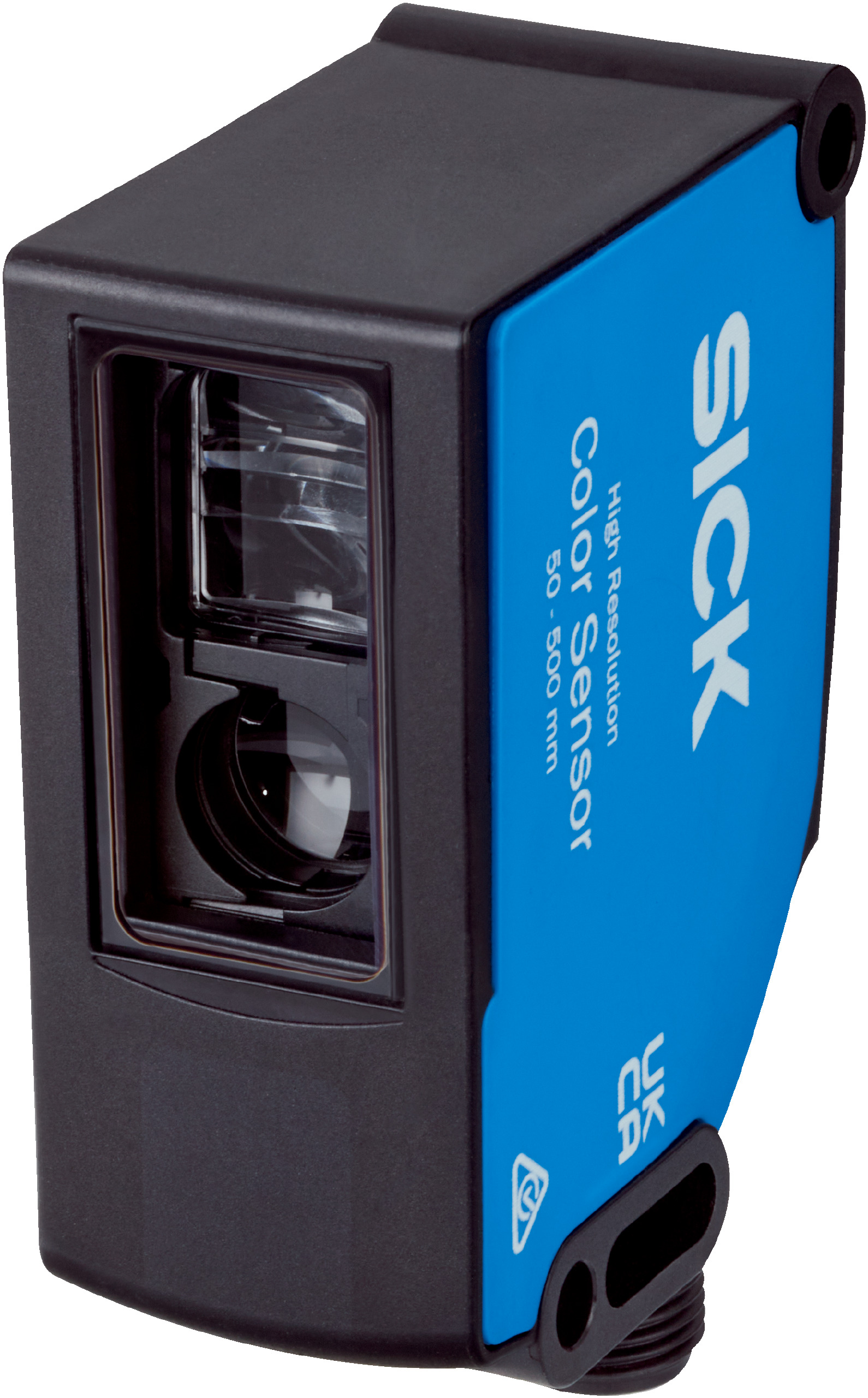

RGB Color Sensor | SICK CSS-WBGAD4118RZZZZ | Sensing Distance 50-500mm | IP67 Rated | by SICK
The RGB Color Sensor is designed for industrial automation, featuring a sensing distance of 50 mm to 500 mm and an RGB LED light source with wavelengths of 450 nm, 550 nm, and 610 nm. Ideal for color detection and sorting, this sensor offers robust performance with an IP67 rated enclosure, ensuring durability in challenging environments. Perfect for quality control and object recognition in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 50 mm to 500 mm
- Light source: LED, RGB with wavelengths 450 nm, 550 nm, 610 nm
- Light spot size: 8 mm to 32 mm diameter
- Output modes: 4 colors standard, 15 colors coded
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 150 mA
- Switching frequency: 4 kHz
- Response time: 120 µs
- Switching output: Push-pull PNP/NPN
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection: Male M12, 8-pin connector
- Enclosure rating: IP67
- Operating temperature: -20°C to +55°C
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance from 50 mm to 500 mm
- RGB LED light source with wavelengths of 450 nm, 550 nm, and 610 nm
- S-housing design with long side light emission
- 4 hardware switching outputs and 24 virtual switching outputs via RS-485
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes including single value and multi value teach-in
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration.
Applications
- Industrial automation for color detection and sorting
- Quality control in manufacturing processes
- Object recognition and identification in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CSS-WBGAD4118RZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
