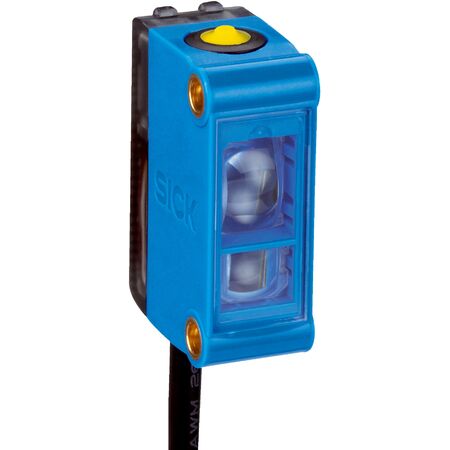

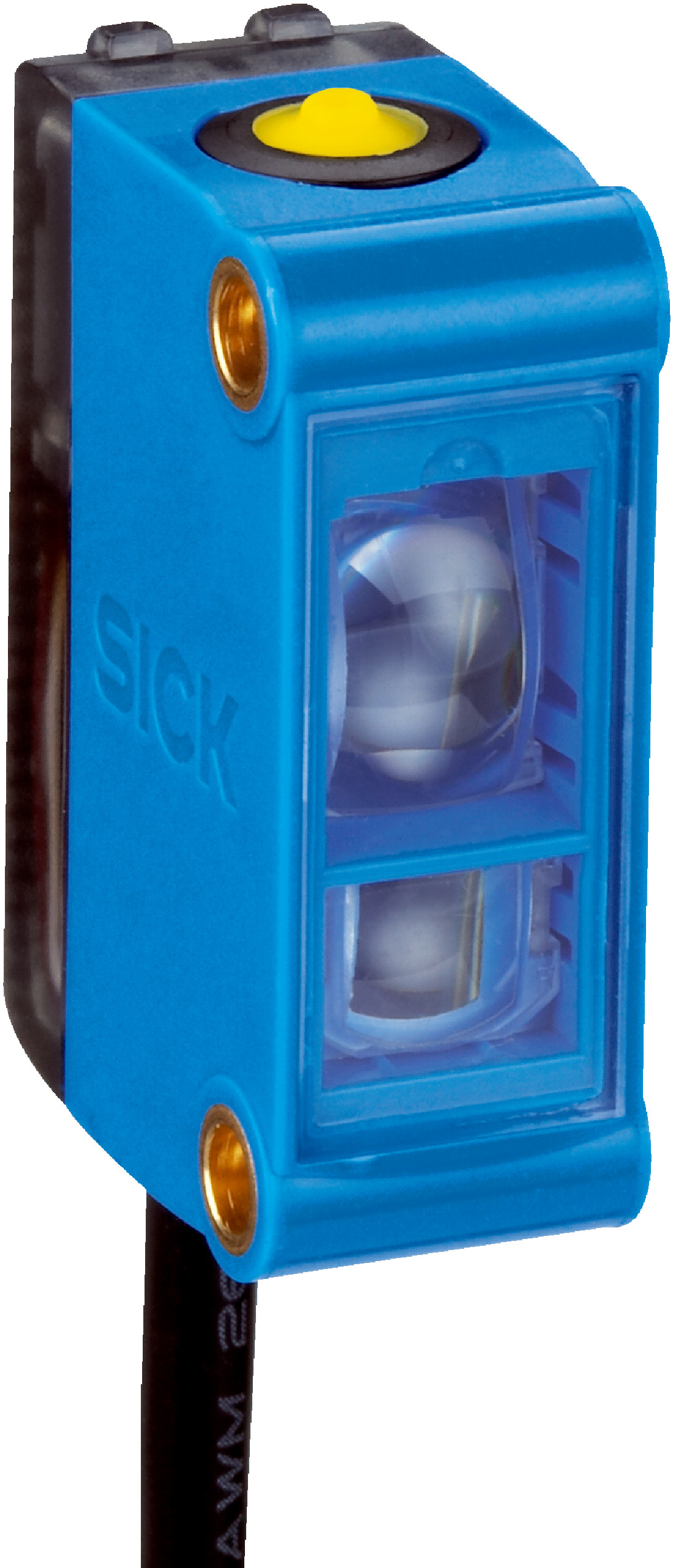

RGB Color Sensor | Small LED Sensor | IP67 Rated | NPN Output | by SICK
The RGB Color Sensor is designed for industrial automation, featuring a compact design and IP67 rating for dust and water resistance. With a switching frequency of 15 kHz and a response time of just 32 µs, it excels in object detection and color sensing applications. Ideal for quality control in manufacturing and robotics, this sensor ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Jitter: 15 µs
- Switching output: NPN, max output current 50 mA
- Light source: RGB LED
- Light spot size: 1.6 mm x 9.5 mm
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- Long side light emission with vertical light spot direction
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- NPN switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M12 male connector, 4-pin, 0.2 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing and PMMA optics reduce material waste
- IP67 rating ensures long product life in harsh environments, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-WN11182PS03 RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
