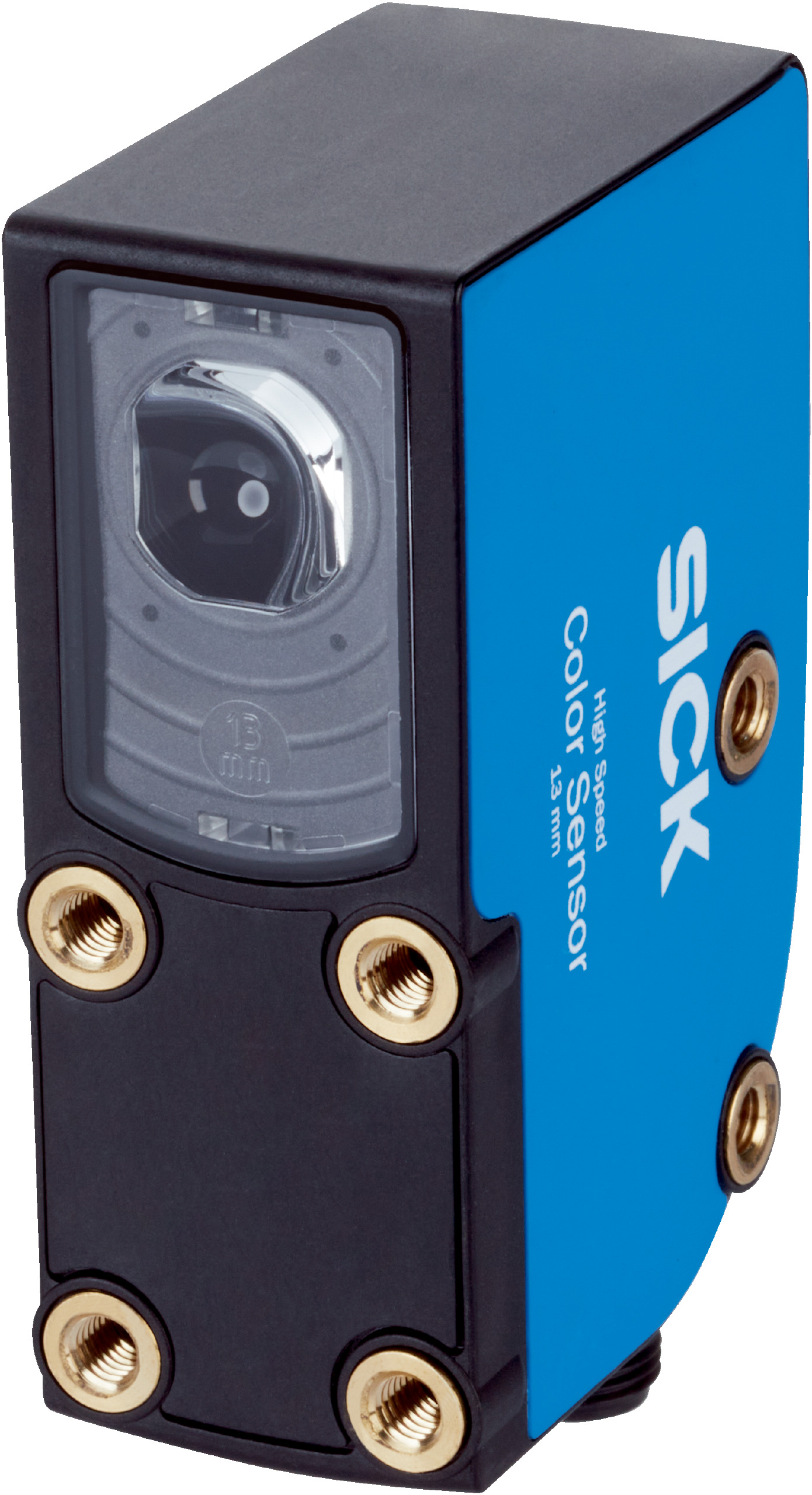

RGB LED Color Sensor | 13 mm Sensing Distance | IP67 Enclosure | by SICK
The RGB LED Color Sensor is designed for precise color detection and object sensing in industrial automation. With a sensing distance of 13 mm and an IP67-rated enclosure, it ensures robust performance in challenging environments. Ideal for quality control and robotics applications, this sensor features a high switching frequency of 13.8 kHz and fast response time of 36 µs, making it a reliable choice for various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 13 mm
- Light source: LED, RGB with wavelengths 460 nm, 530 nm, 625 nm
- Light emission: Long side of housing with 2 mm x 4 mm light spot size
- Output mode: 2 colors in standard/best fit mode, 3 colors in coded mode
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Output current max: 100 mA
- Protection class: III
- Enclosure rating: IP67
- Connection type: Plug, M12, 5-pin
- Weight: 94 g
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with RGB LED light source
- X-housing design with IP67 enclosure rating for robust protection
- Two hardware switching outputs with PNP switching output
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes including single value and multi value teach-in
- High switching frequency of 13.8 kHz and fast response time of 36 µs
- Protection class III with reverse polarity and short-circuit protection
- Plug M12, 5-pin connection for easy integration
- Photobiological safety certified according to IEC EN 62471
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

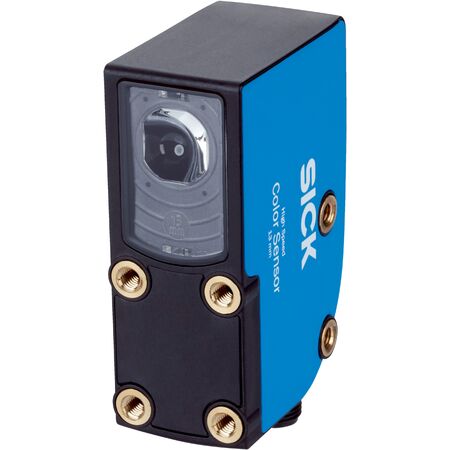

The SICK CSX-WPF1141252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
