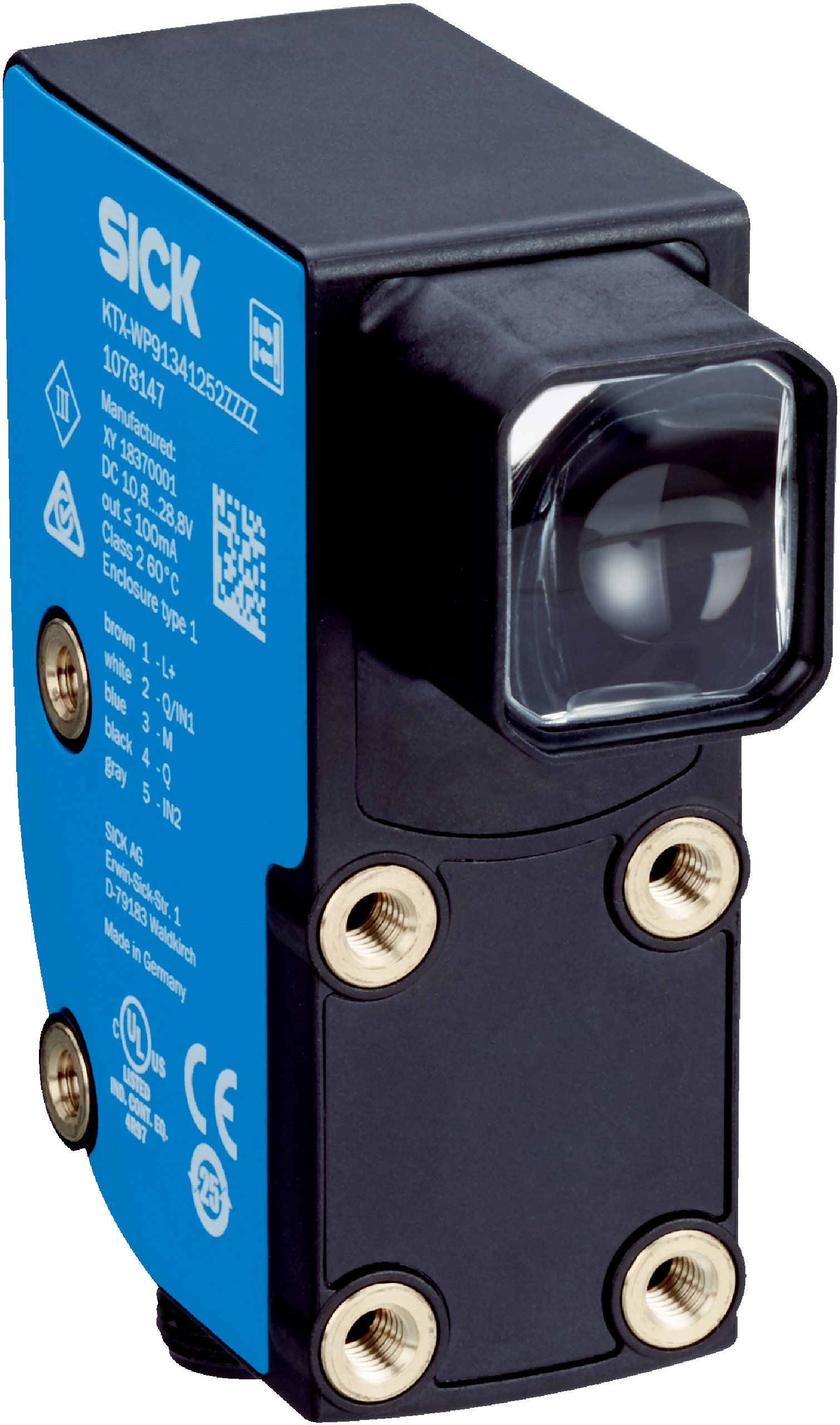

RGB LED Industrial Object Sensor | IP67 Rated | 50 kHz Switching Frequency | 10 µs Response Time | by SICK
The RGB LED Industrial Object Sensor is designed for precise object detection in industrial automation, featuring a 50 kHz switching frequency and a rapid 10 µs response time. With an IP67 rating for dust and water resistance, this sensor is perfect for quality control and position sensing in production lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Output type: PNP with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 3.9 mm x 0.9 mm
- Connection type: M12, 5-pin plug
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- LED RGB light source with wavelengths of 470 nm, 525 nm, and 625 nm
- Sensing distance up to 40 mm with ±3 mm tolerance
- Light/dark switching output function with adjustable delay time
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Long MTTFD of 291 years indicating high reliability and reduced waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now

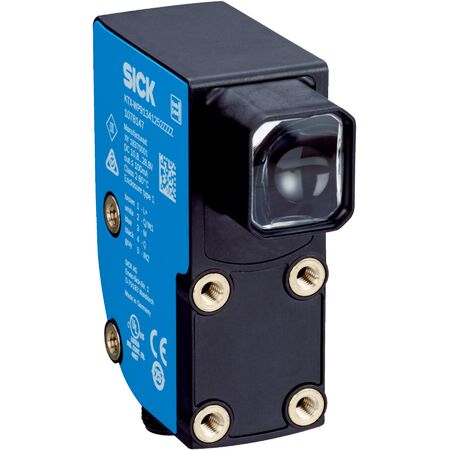

The SICK KTX-WP91341252ZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
