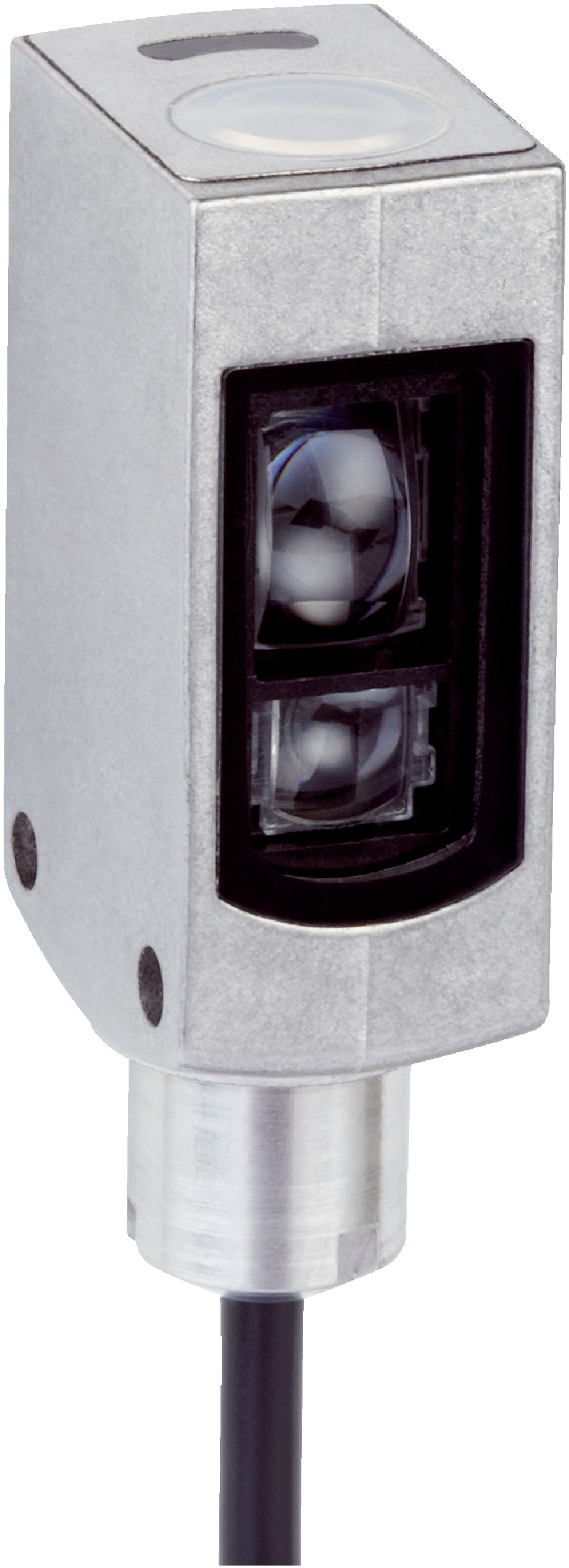

RGB LED Proximity Sensor | 11mm Sensing Distance | IP69K Rated | Fast Response Time | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a sensing distance of up to 11 mm and an IP69K rated enclosure for protection against dust and high-pressure water jets. With a fast response time of 35 µs and a high switching frequency of 15 kHz, this sensor is perfect for precise object detection and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 11 mm with ±3 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light emission: Long side of housing with 1.6 mm x 9.5 mm spot size
- Supply voltage: 12 V DC to 24 V DC with ≤ 5 V ripple
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 35 µs
- Switching output: NPN, light/dark switching mode
- Output current max: 50 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS with PMMA optics
- Connection: Cable with M12 male 4-pin connector, 0.2 m
- Operating temperature: -30 °C to +70 °C
- Enclosure rating: IP69K
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Small stainless steel housing for compact installation
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 11 mm with ±3 mm tolerance
- Teach-in button for easy 2-point static/dynamic calibration
- High switching frequency of 15 kHz and fast response time of 35 µs
- NPN switching output with light/dark switching mode
- IP69K rated enclosure for protection against dust and high-pressure water jets
- Cable with M12 male 4-pin connector, 0.2 m length
- Wide ambient operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Harsh environment sensing with IP69K protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP69K rated housing reduces replacement frequency and waste
- Low current consumption (<50 mA) contributes to energy efficiency
- Non-volatile memory reduces need for recalibration, saving resources
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WN1A182V RGB LED Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
