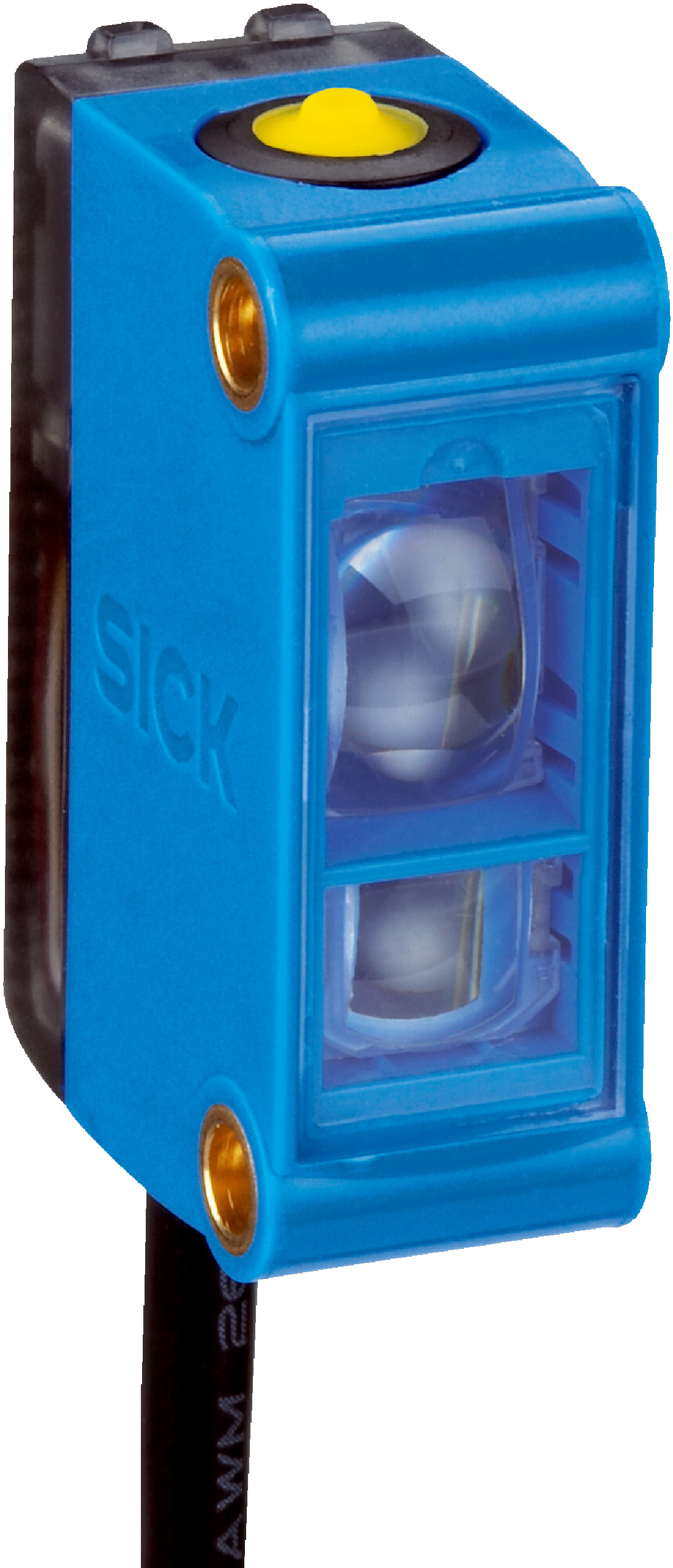

RGB LED Proximity Sensor | 12.5 mm Sensing Distance | IP67 Rated | by SICK
The RGB LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing distance of up to 12.5 mm and an IP67 rated enclosure for dust and water resistance. With a fast response time of 32 µs and a PNP switching output, it's perfect for manufacturing lines and quality control systems, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 12.5 mm with ±3 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light emission: Long side of housing, vertical light spot direction
- Switching output: PNP, light/dark switching mode, max 50 mA output current
- Supply voltage: 12 V DC to 24 V DC, ripple ≤ 5 V pp
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Protection class: III
- Enclosure rating: IP67
- Housing material: ABS
- Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Operating temperature: –10 °C to +55 °C
- Storage temperature: –20 °C to +75 °C
- Shock load: According to IEC 60068
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with vertical light spot direction
- 2-point teach-in mode for static/dynamic and proximity to mark
- Supply voltage 12 V DC to 24 V DC with low ripple
- Switching frequency of 15 kHz and response time of 32 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M12 male connector, 4-pin, 0.2 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 12 V to 24 V DC
- Durable IP67 rated housing reduces need for frequent replacements
- Non-toxic materials compliant with China-RoHS standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WP11182P RGB LED Sensor is available for immediate purchase. Ideal for industrial automation and precise sensing applications.
