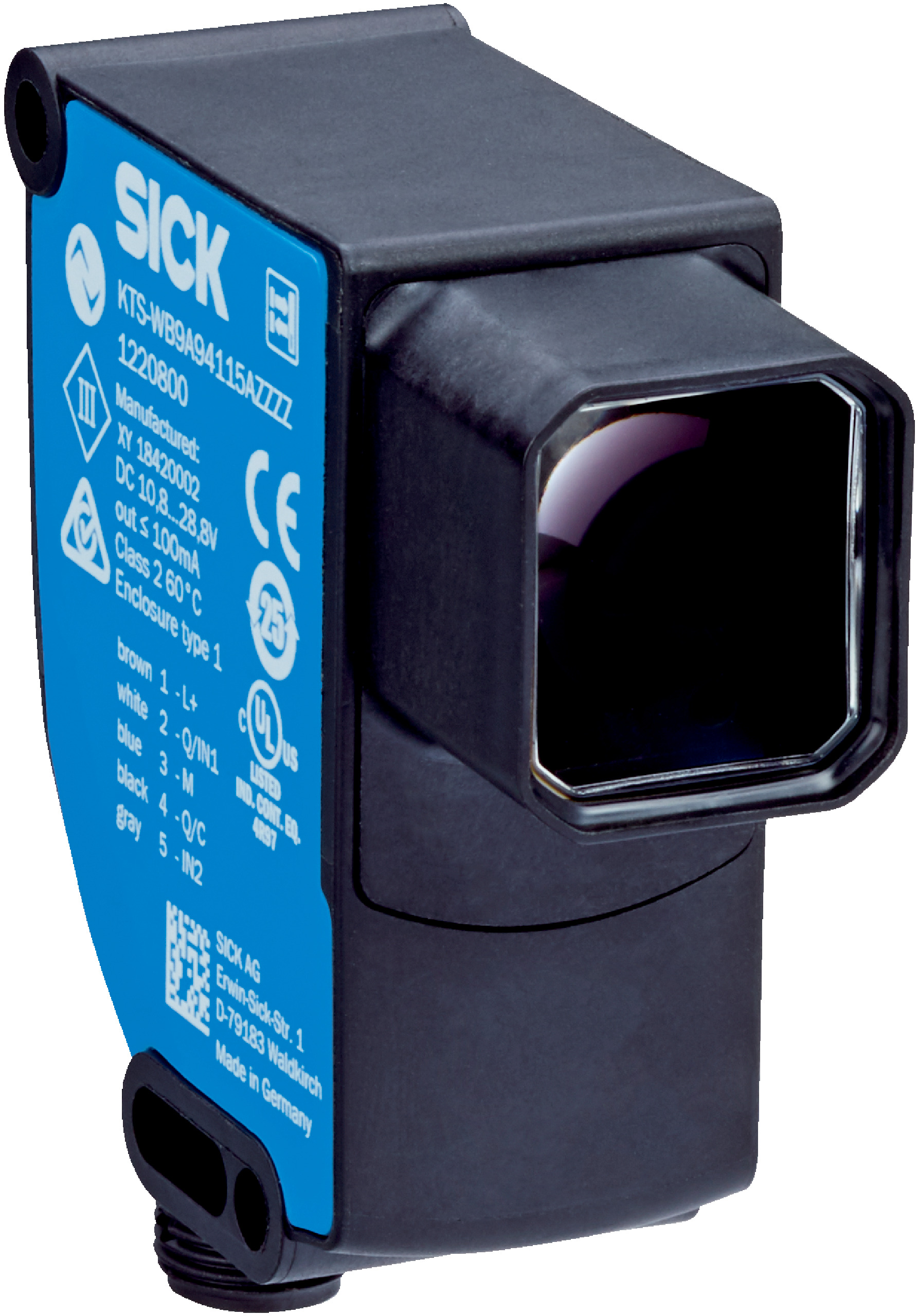

RGB LED Proximity Sensor | 40mm Sensing Distance | IP67 Rated | 10µs Response Time | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a long sensing distance of up to 40mm and an IP67 rated enclosure for robust performance in harsh environments. With a quick response time of just 10µs and multiple teach-in modes, this sensor is perfect for reliable object detection in various applications, ensuring efficiency and safety in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 40 mm with ±3 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light emission: Long side of housing with 3.9 mm x 0.9 mm spot size
- Output: NPN switching output, max current 100 mA
- Supply voltage: 10.8 V DC to 28.8 V DC with ≤ 5 V ripple
- Switching frequency: 50 kHz, response time: 10 µs
- Protection class: III with reverse polarity and short-circuit protection
- Connection: Plug, M12, 5-pin
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Standard device type with long sensing distance up to 40 mm
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light/dark switching output function with adjustable delay time
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Robust housing made of VISTAL® with glass optics
- IP67 rated enclosure for protection against dust and water
- Short response time of 10 µs and high switching frequency of 50 kHz
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Standard sensing applications requiring long sensing distance
- Environments requiring robust IP67 rated sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V to 28.8 V DC
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

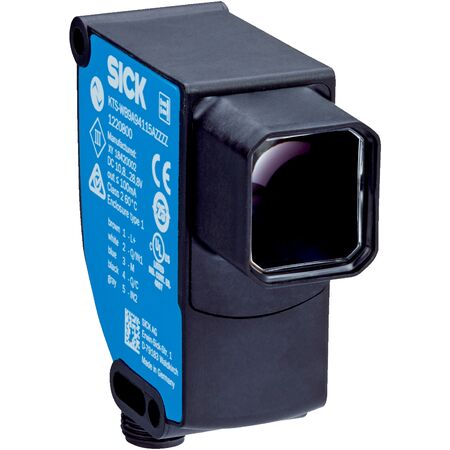

The SICK KTS-WN91341152ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable and robust detection.
