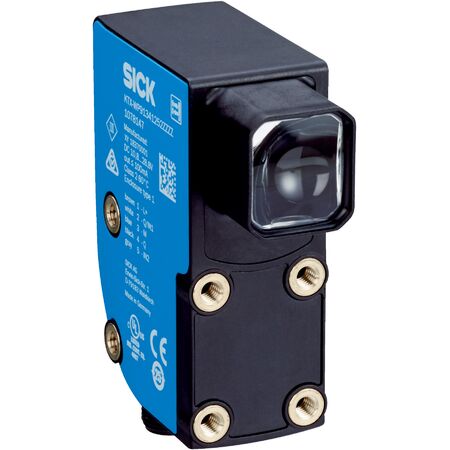

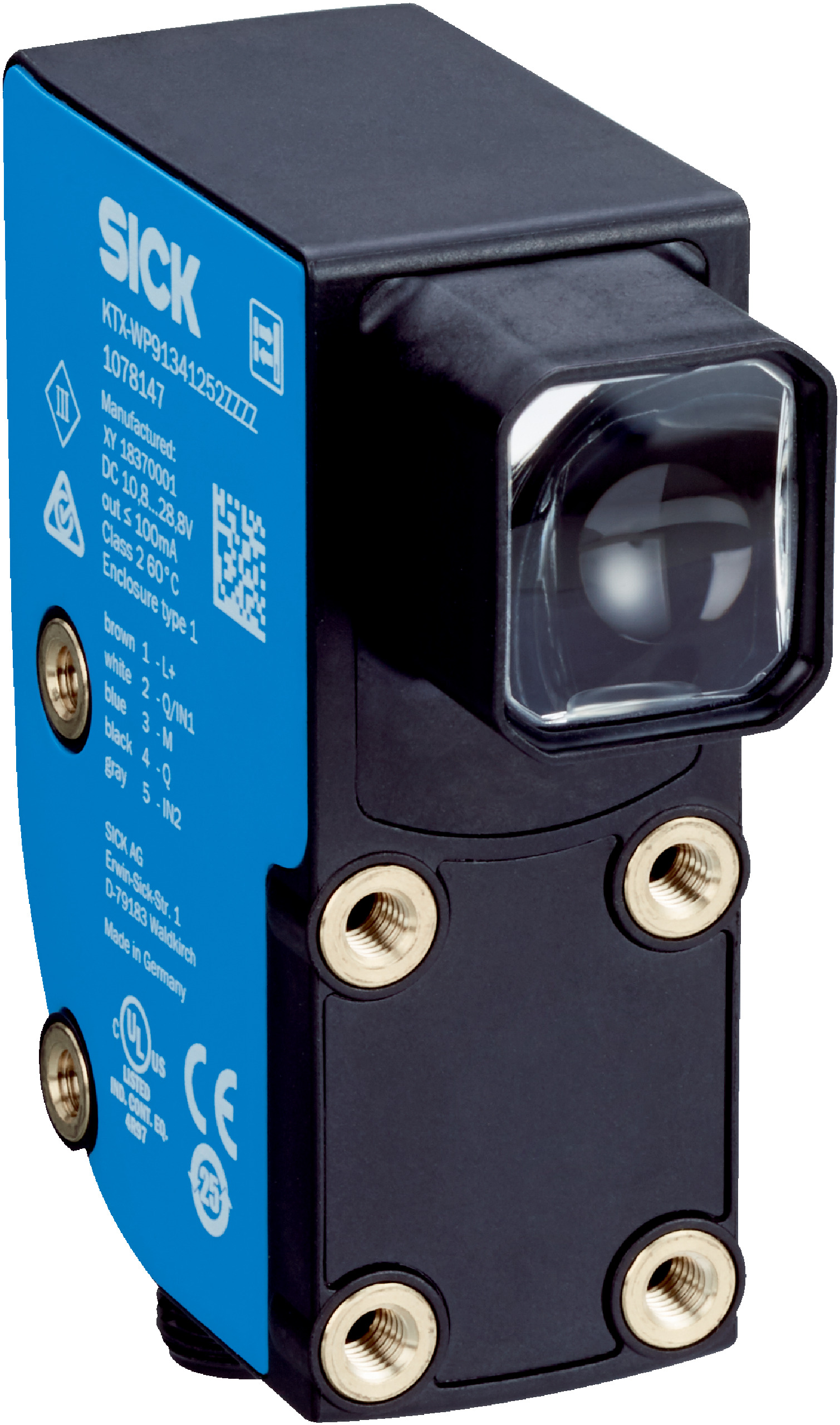

RGB LED Proximity Sensor | 40 mm Sensing Distance | IP67 Rated | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a sensing distance of up to 40 mm with ±3 mm tolerance. With an IP67 rating for dust and water resistance, this sensor is perfect for quality control systems and machine safety applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 40 mm with ±3 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light spot size: 3.9 mm x 0.9 mm
- Output: 1 analog voltage output (0 V to 10 V), 1 digital push-pull output (PNP/NPN)
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: VISTAL®
- Optics material: Glass
- Connection: M12, 5-pin plug
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 40 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from long side of housing with vertical light spot direction
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Adjustable delay time and light/dark switching output function
- Analog voltage output (0 V to 10 V) and digital push-pull outputs (PNP/NPN)
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection and positioning
- Quality control systems requiring precise sensing
- Machine safety and monitoring applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTX-WB9134125UZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable RGB LED detection.
