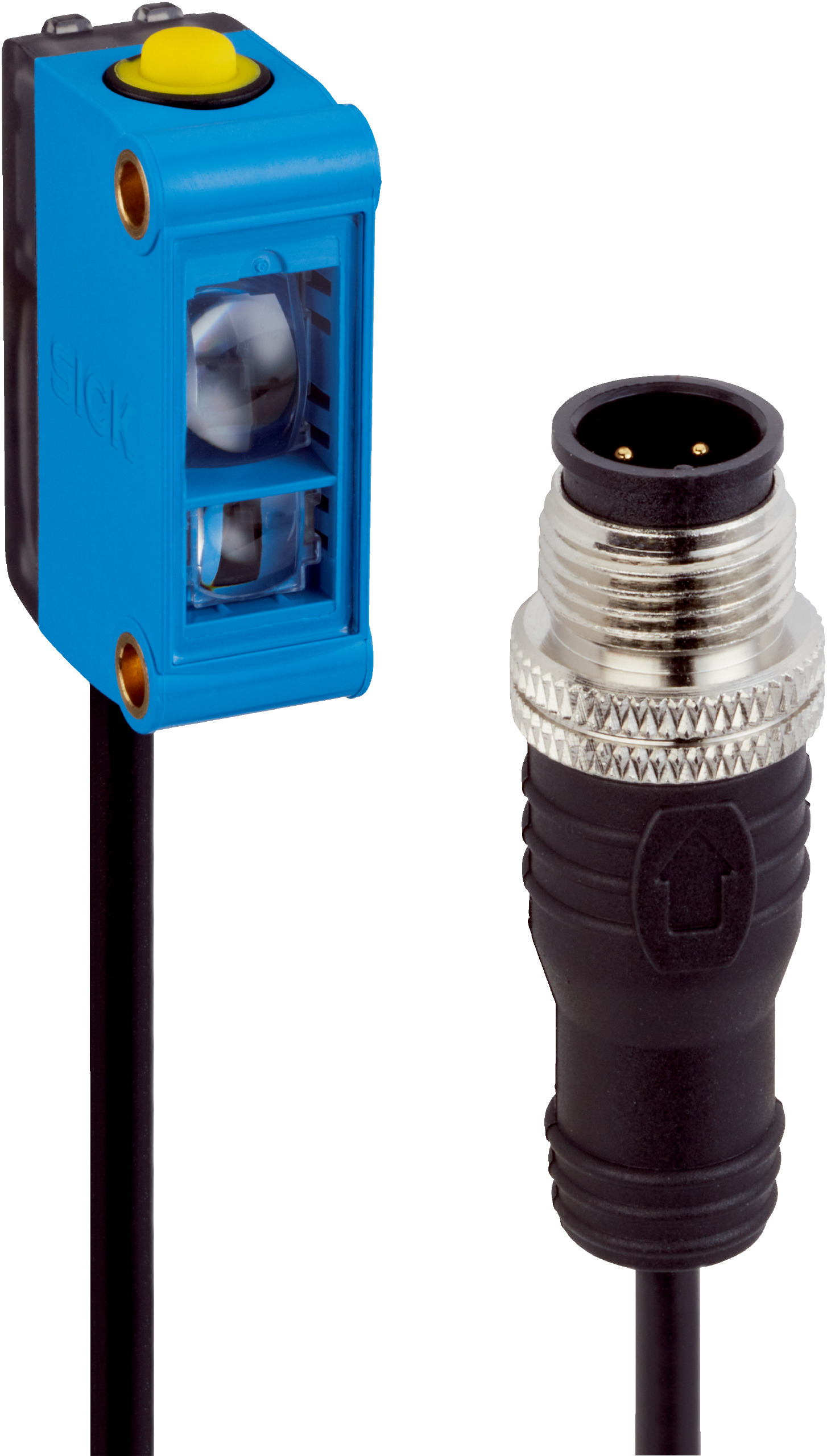

RGB LED Proximity Sensor | Compact Design | IP67 Rated | Fast Response Time | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a compact housing and an IP67 rating for dust and water resistance. With a fast response time of 300 µs and a high switching frequency of 1.7 kHz, it's perfect for machine safety and control systems. Ideal for robotics and manufacturing process monitoring, this sensor ensures reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: less than 5 V pp
- Current consumption: less than 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Jitter: 150 µs
- Switching output: PNP, light/dark switching
- Output current max: less than 100 mA
- Input teach-in voltage: 10 V to less than supply voltage
- Protection: reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Cable diameter: 3.4 mm
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Compact housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 640 nm, 525 nm, and 470 nm
- Sensing distance up to 15 mm with ±4 mm tolerance
- Vertical light spot direction with 4.9 mm x 10.1 mm spot size
- Teach-in button for easy adjustment and dynamic/static teach-in modes
- High switching frequency of 1.7 kHz and fast response time of 300 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M12 male connector, 4-pin, 0.2 m length
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Robotics and manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS and PMMA materials extend product lifespan reducing waste
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

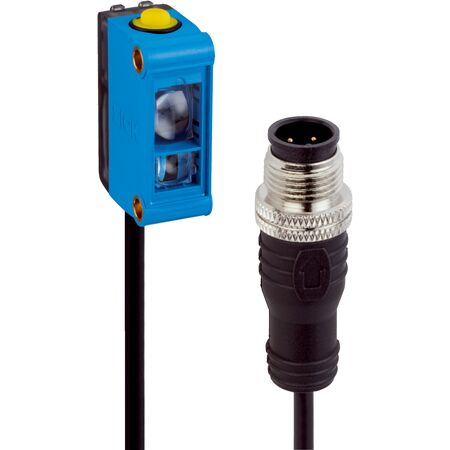

The SICK CSM-WP1B1C2P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
