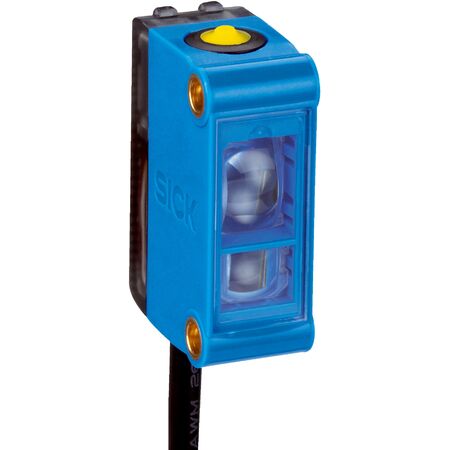

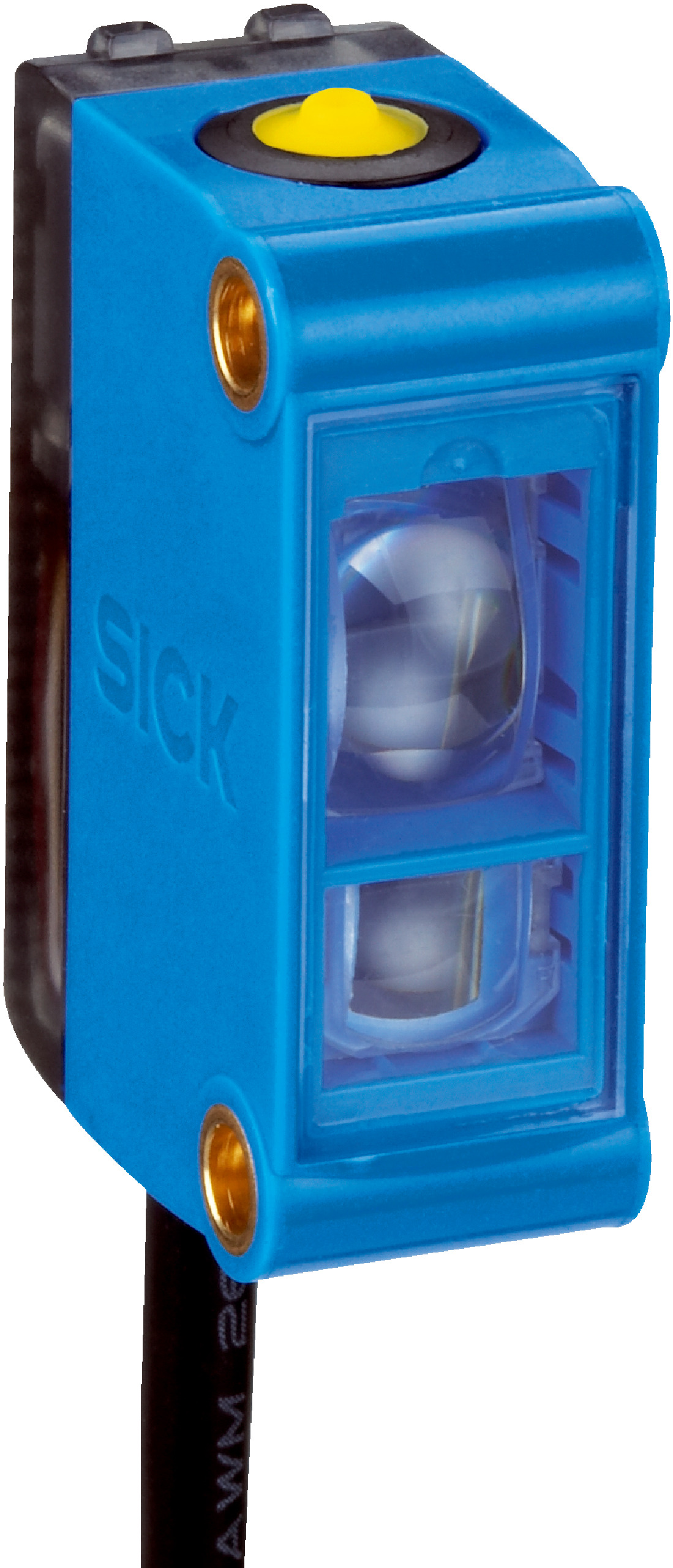

RGB LED Proximity Sensor | IP67 Rated | 15 kHz Switching Frequency | Teach-In Modes | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 15 kHz and a fast response time of 32 µs. With an IP67 rating for dust and water resistance, this sensor is perfect for precise object detection and position sensing in manufacturing lines, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Switching output: PNP, light/dark switching
- Output current max: 50 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Housing material: ABS
- Optics material: PMMA
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Long side light emission with a 1.6 mm x 9.5 mm light spot size
- Teach-in button for 2-point static/dynamic and proximity teach-in modes
- High switching frequency of 15 kHz and fast response time of 32 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M12 male 4-pin connector, 0.2 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage of 12 V DC to 24 V DC
- Durable ABS housing and IP67 rating ensure long product life and reduced waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTM-WP11172P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring precise and reliable detection.
