RGB LED Proximity Sensor | IP67 Rated | 15mm Sensing Distance | PNP Output | by SICK
The RGB LED Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing distance of up to 15 mm and an IP67 rated enclosure for dust and water resistance. With a low current consumption of under 50 mA and a fast response time of 300 µs, this sensor is perfect for manufacturing process control and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Sensing distance: ≤ 15 mm with ±4 mm tolerance
- Light source: RGB LED (640 nm, 525 nm, 470 nm)
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Switching output: PNP, light/dark switching
- Output current max: < 100 mA
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Housing material: ABS
- Optics material: PMMA
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Compact housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 640 nm, 525 nm, and 470 nm
- Sensing distance up to 15 mm with ±4 mm tolerance
- Vertical light spot direction with 4.9 mm x 10.1 mm spot size
- Teach-in button for easy adjustment and teach-in static/dynamic modes
- Supply voltage range 12 V DC to 24 V DC with ripple less than 5 V pp
- Low current consumption under 50 mA
- Switching frequency of 1.7 kHz and response time of 300 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics sensing applications
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable IP67 housing minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

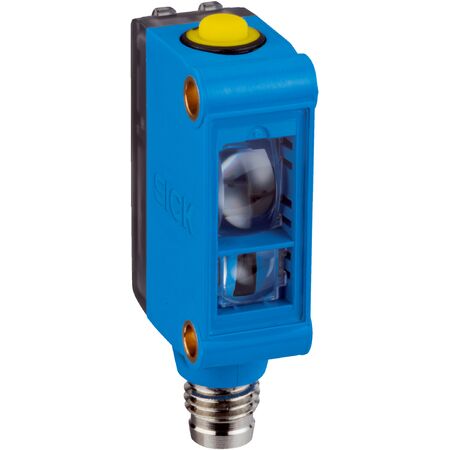

The SICK CSM-WP1B1C1P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
