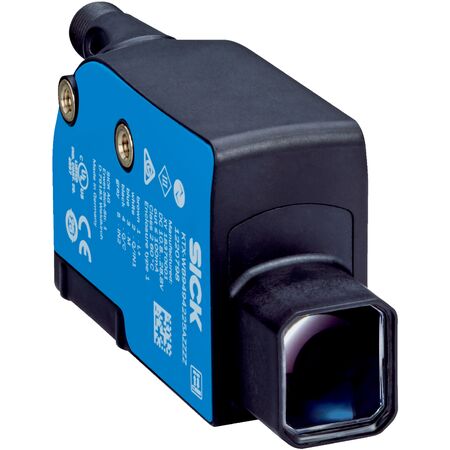

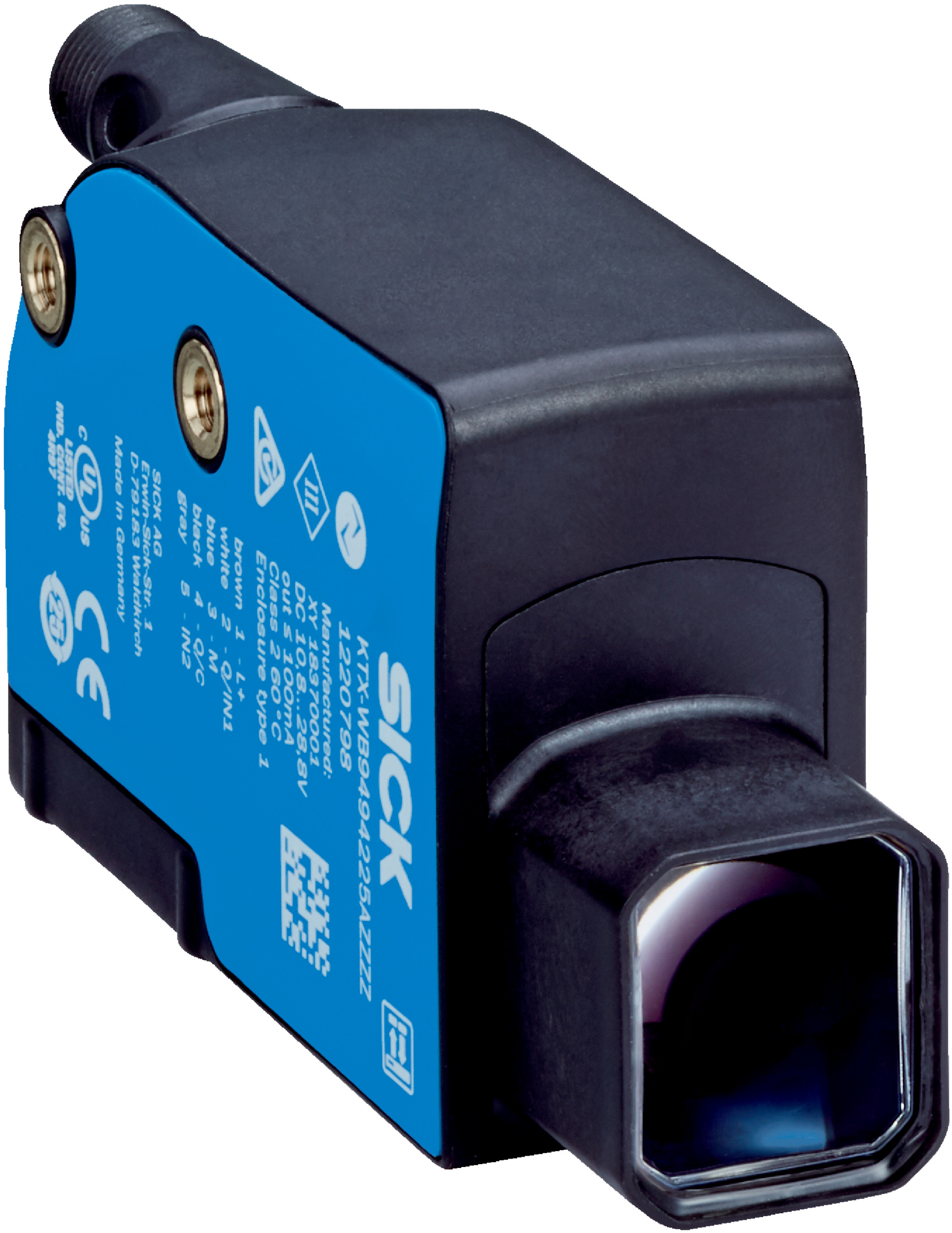

RGB LED Proximity Sensor | IP67 Rated | 40mm Sensing Distance | PNP Output | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a sensing distance of up to 40mm. With a fast response time of 10 µs and a switching frequency of 50 kHz, this sensor is perfect for quality control, robotics, and material handling applications. Its energy-efficient LED light source ensures reliable performance while reducing power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Output type: PNP with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Housing material: VISTAL®
- Optics material: Glass
- Connection type: M12, 5-pin plug
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- LED RGB light source with wavelengths of 470 nm, 525 nm, and 625 nm
- Sensing distance up to 40 mm with ±3 mm tolerance
- Short device side light emission with horizontal light spot direction
- 1-point and 2-point teach-in modes, dynamic teach-in, and auto mode
- Light/dark switching output function with adjustable delay time
- Long sensing distance capability
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in robotics
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WP92342252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
