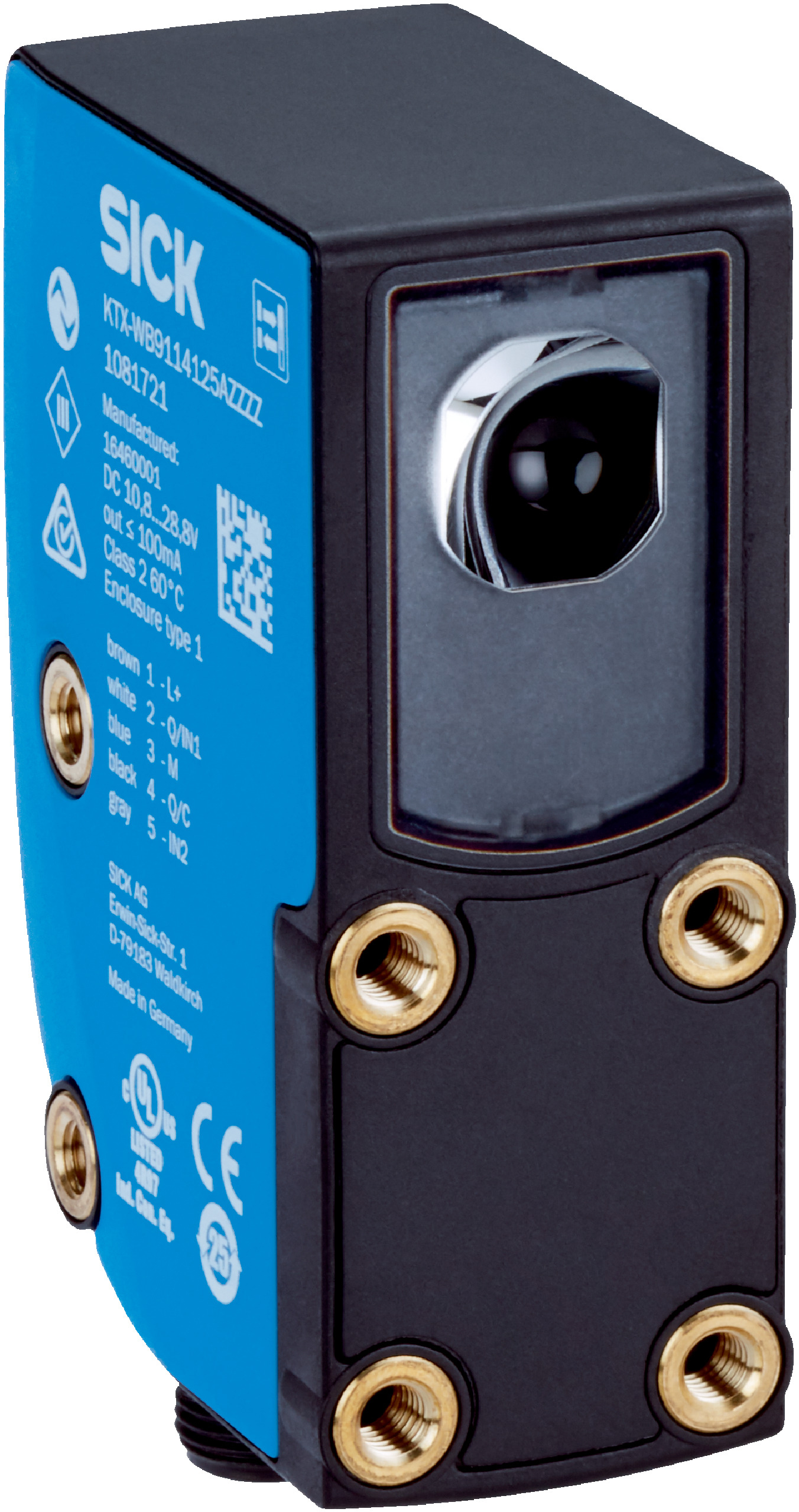

RGB LED Proximity Sensor | IP67 Rated | 50 kHz Switching Frequency | 10 µs Response Time | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a 50 kHz switching frequency and a rapid 10 µs response time. With an IP67 rating for dust and water resistance, this sensor is perfect for object detection, quality control, and robotics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Switching output: NPN with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light emission: Long side of housing
- Light spot size: 0.9 mm x 3.8 mm
- Protection class: III
- Enclosure rating: IP67
- Connection type: Plug, M12, 5-pin
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- LED light source with RGB wavelengths (470 nm, 525 nm, 625 nm)
- Sensing distance up to 13 mm with ±5 mm tolerance
- Light/dark switching output function with adjustable delay time
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in robotics
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V DC to 28.8 V DC
- Durable housing material (VISTAL®) and optics (COP) for long service life
- IP67 rating ensures protection against dust and water, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WN91141252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
