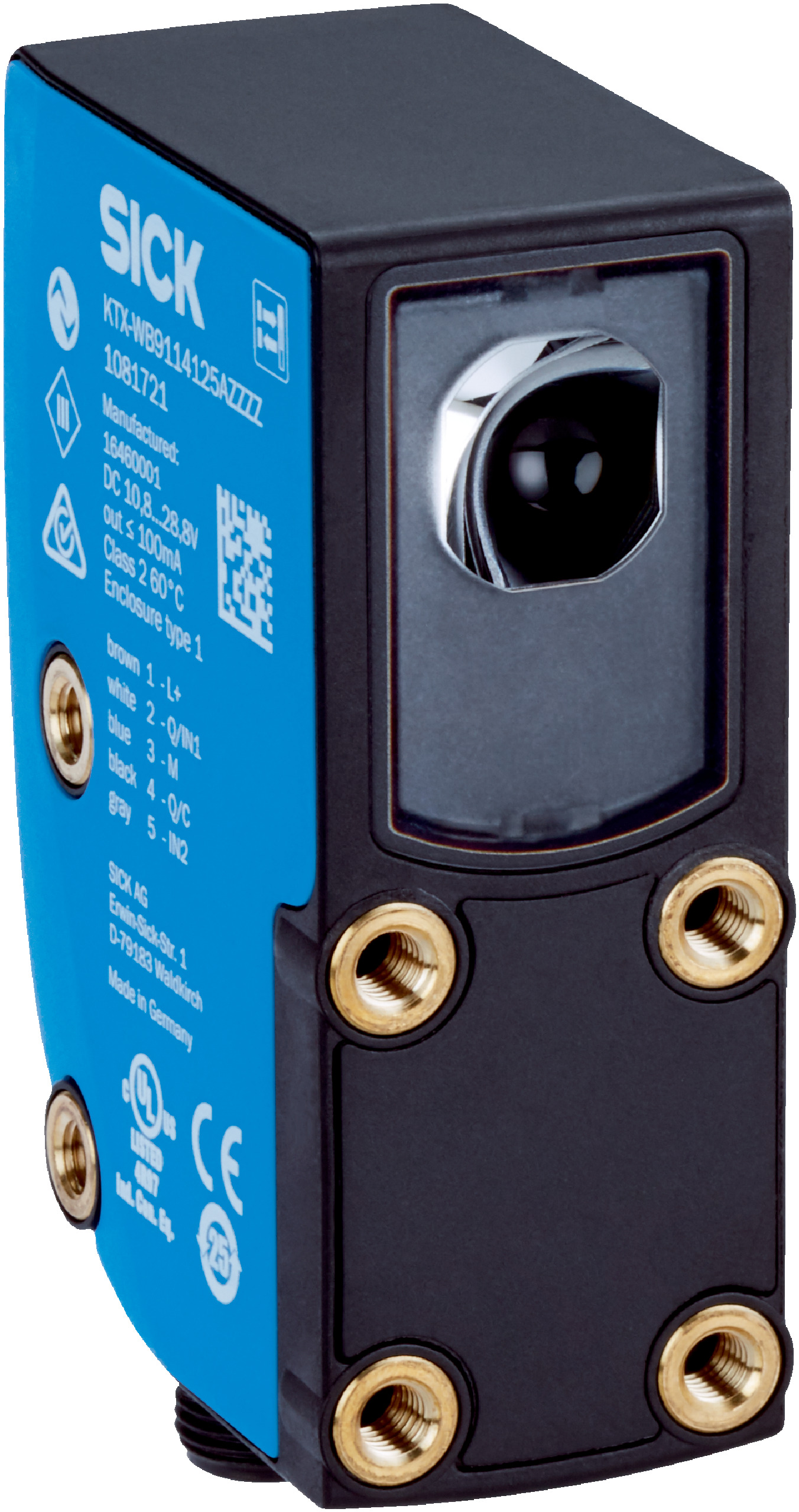

RGB LED Proximity Sensor | IP67 Rated | 50 kHz Switching Frequency | 10 µs Response Time | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a fast 10 µs response time. With a sensing distance of up to 13 mm and a versatile push-pull output, it’s perfect for applications requiring reliable object detection and RGB LED indication. Ideal for environments needing durable and energy-efficient sensors, this device ensures optimal performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Jitter: 5 µs
- Output type: Push-pull PNP/NPN
- Output voltage: HIGH = supply voltage - 3 V, LOW ≤ 3 V
- Output current max: 100 mA
- Retention time: 25 ms, non-volatile memory
- Housing material: VISTAL®
- Optics material: COP
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 13 mm with ±5 mm tolerance
- Light/dark switching output function with adjustable delay time
- 1-point and 2-point teach-in modes, dynamic teach-in, and auto mode
- Push-pull PNP/NPN switching output with max 100 mA output current
- Analog voltage output 0 V to 10 V
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Standard sensing applications requiring RGB LED indication
- Environments requiring robust IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low current consumption under 100 mA conserves energy
- Long MTTFD of 291 years enhances reliability and reduces downtime
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WB9114124UZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable RGB LED indication and analog/digital outputs.
