RGB LED Proximity Sensor | IP67 Rated | 50 kHz Switching Frequency | Adjustable Delay | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a robust IP67 enclosure and a 50 kHz switching frequency. With a sensing distance of up to 40 mm and multiple teach-in modes, it’s perfect for applications in quality control, robotics, and material handling. Built for durability and low power consumption, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Output type: NPN with max output current 100 mA
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 3.9 mm x 0.9 mm
- Connection type: Plug, M12, 5-pin
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 40 mm with ±3 mm tolerance
- Short device side light emission with vertical light spot direction
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Adjustable delay time and light/dark switching output function
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock load resistant according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration according to industrial safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- Position sensing in robotics
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Non-volatile memory reduces electronic waste by retaining settings without power
Warranty Information
Warranty terms as per SICK standard policy; typically 1-3 years depending on region and application.
Available Now

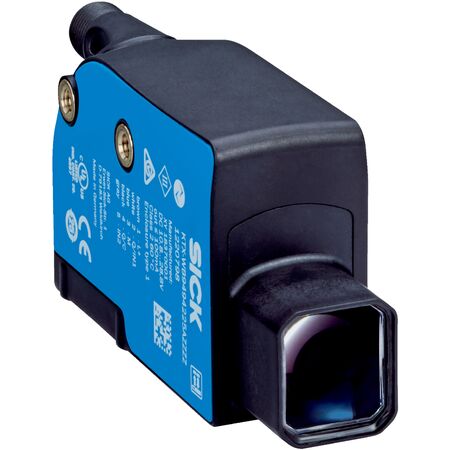

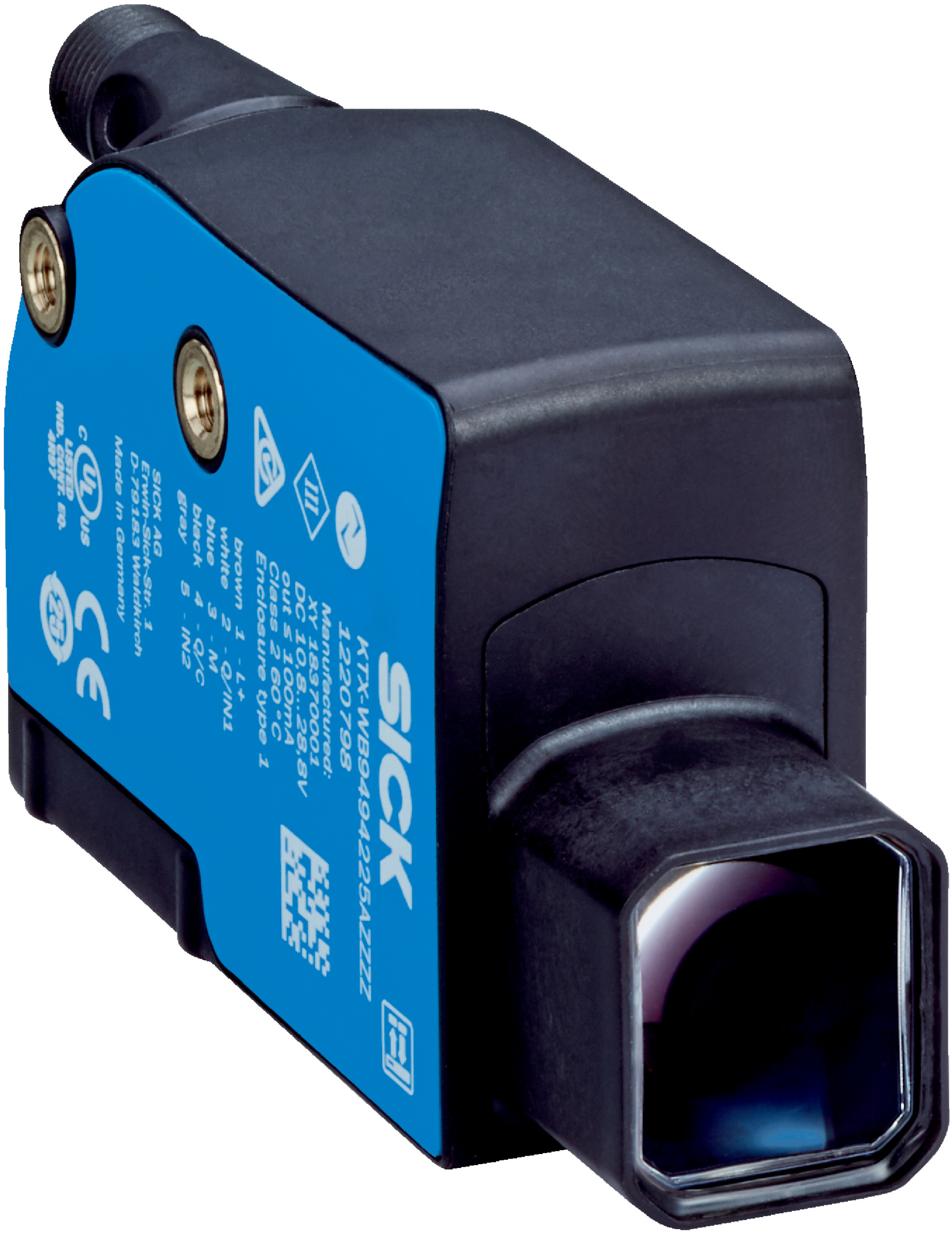

The SICK KTX-WN91342252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
