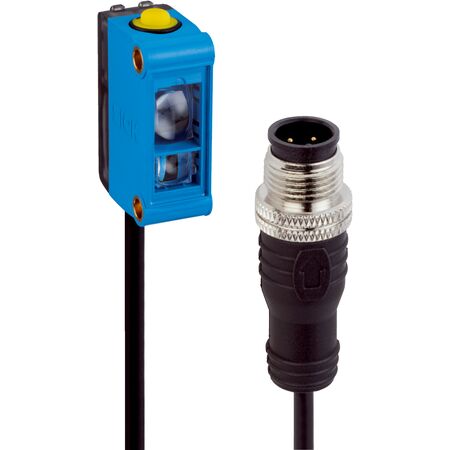

RGB LED Proximity Sensor | IP67 Rated | Fast Response Time | PNP Output | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring a compact design and an IP67 rating for dust and water resistance. With a fast response time of 300 µs and a high switching frequency of 1.7 kHz, it’s perfect for applications in manufacturing process control and robotics. The sensor offers reliable object detection with a sensing distance of up to 12.5 mm, making it an essential tool for quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 1.7 kHz
- Response time: 300 µs
- Switching output: PNP, light/dark switching
- Output current max: < 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Cable: PVC, diameter 3.4 mm, length 0.2 m
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- RGB LED light source with wavelengths 640 nm, 525 nm, 470 nm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- Vertical light spot direction with 1.9 mm x 9.4 mm spot size
- Teach-in button for easy adjustment and teach-in static/dynamic modes
- High switching frequency of 1.7 kHz and fast response time of 300 µs
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable with M12 male 4-pin connector, 0.2 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and assembly line sensing
- Quality control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 rated housing reduces replacement frequency and waste
- Low current consumption (<50 mA) contributes to energy efficiency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSM-WP111C2P RGB LED Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
