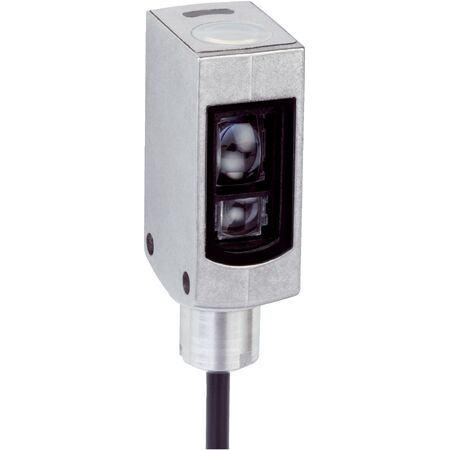

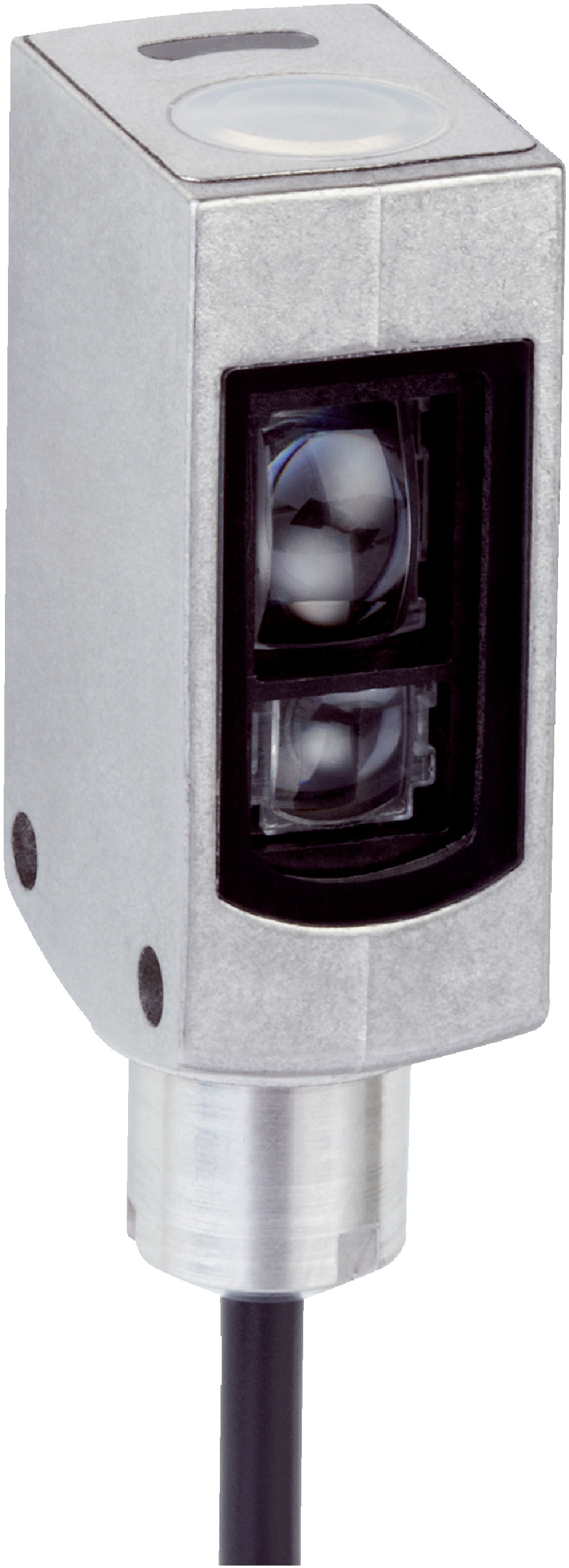

RGB LED Proximity Sensor | IP69K Rated | 15 kHz Switching Frequency | M12 Connector | by SICK
The RGB LED Proximity Sensor is designed for industrial automation, featuring an IP69K rating for protection against dust and high-pressure water. With a high switching frequency of 15 kHz and a fast response time of 35 µs, it ensures precise object detection and position sensing in manufacturing lines. Ideal for harsh environments, this sensor is built for reliability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RGB LED Proximity Sensor | IP69K Rated | 15 kHz Switching Frequency | M12 Connector | by SICK
Brand: SICK
SKU: 1052956
Alternatively Known As: RGB LED Sensor, SICK Proximity Sensor, M12 Connector Sensor, Industrial Object Sensor
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 35 µs
- Switching output: PNP, light/dark switching
- Output current max: 50 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection type: Cable with M12 male connector, 4-pin, 0.2 m
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Enclosure rating: IP69K
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Small stainless steel housing design
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 11 mm with ±3 mm tolerance
- Long side light emission with vertical light spot direction
- 2-point teach-in static/dynamic and proximity teach-in modes
- High switching frequency of 15 kHz and fast response time of 35 µs
- PNP switching output with light/dark switching mode
- Cable with M12 male connector, 4-pin, 0.2 m length
- IP69K enclosure rating for protection against dust and high-pressure water
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems requiring precise sensing
- Harsh environments needing IP69K rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable IP69K rated housing reduces waste by extending product life
- Non-volatile memory reduces need for recalibration and maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-WP1A182V RGB LED Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
